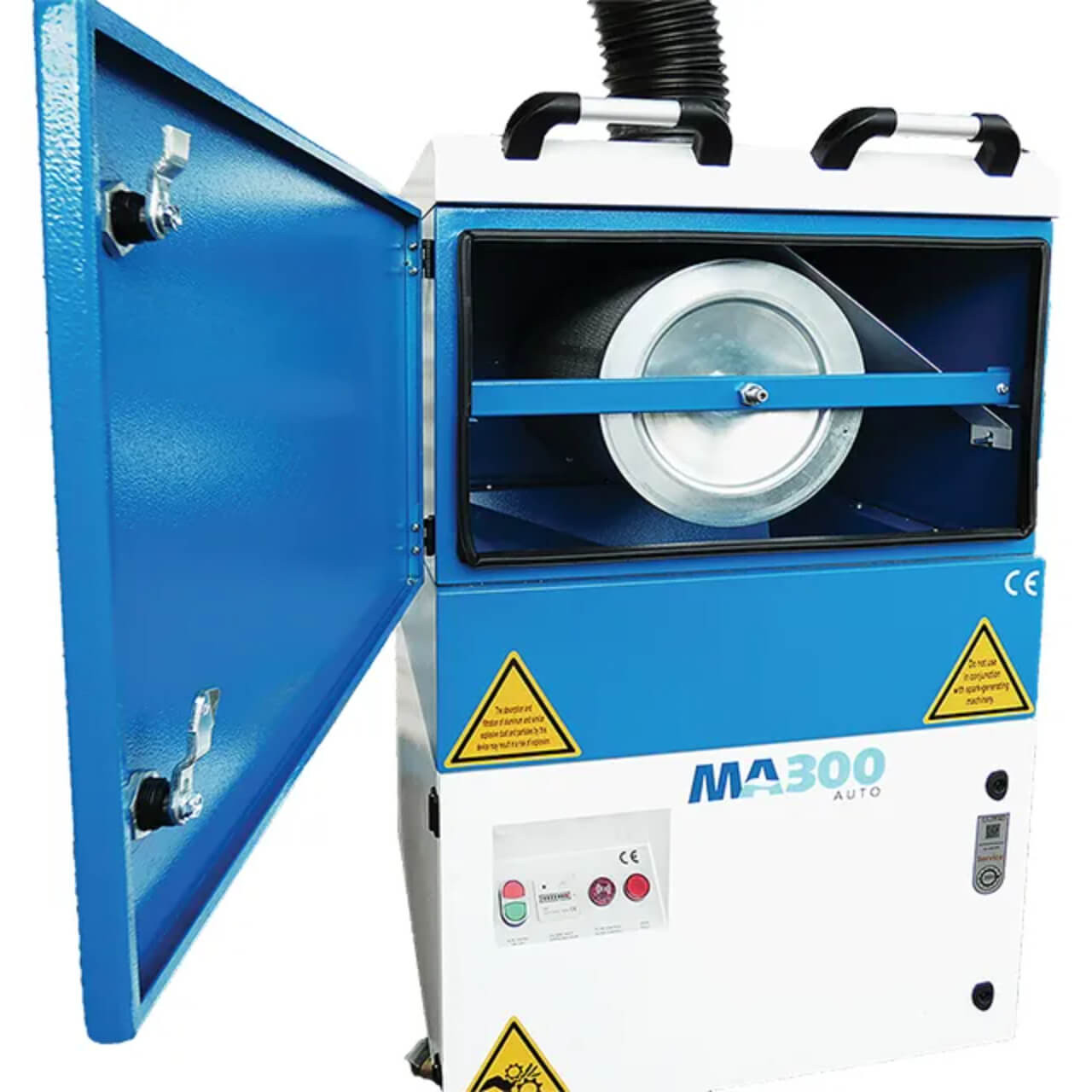

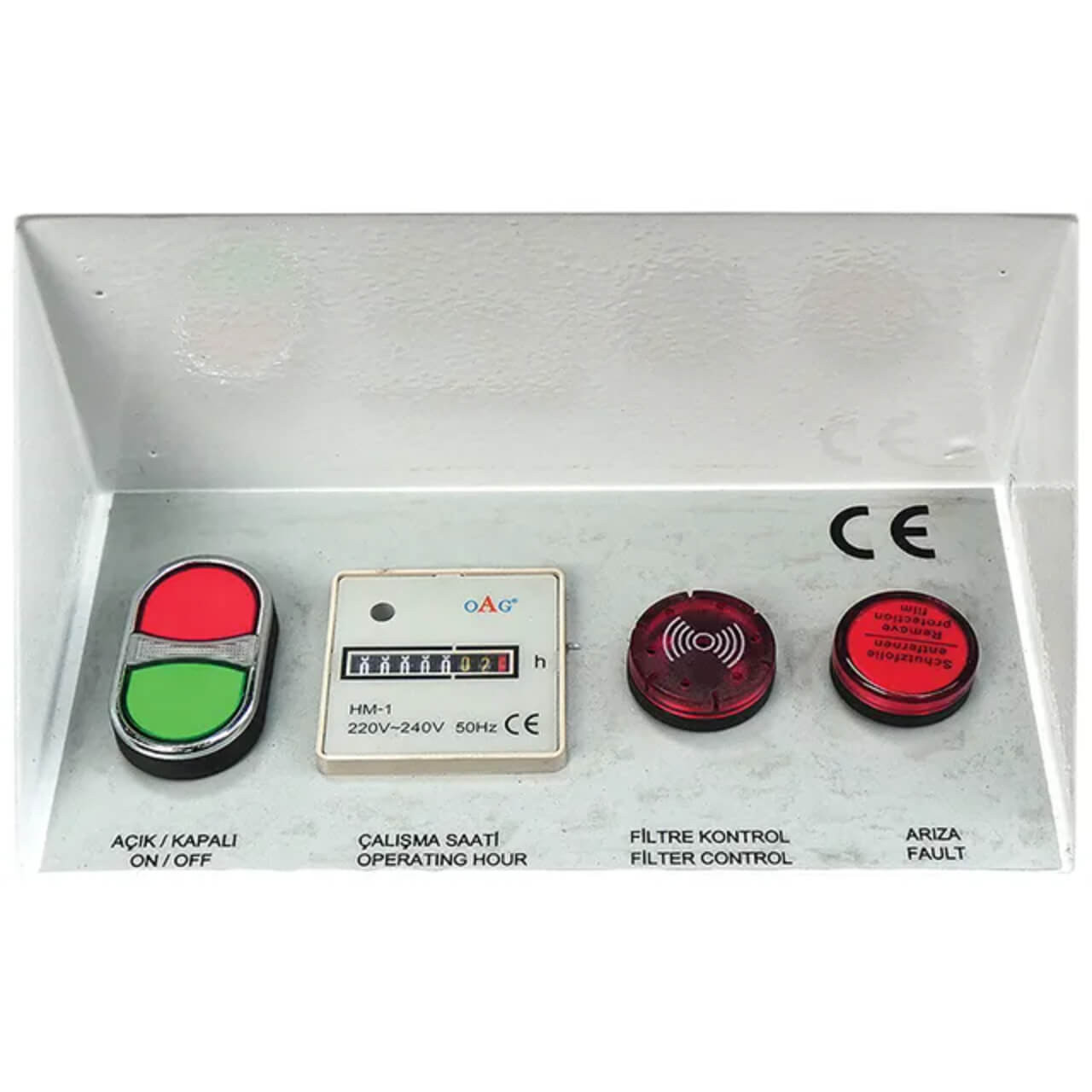

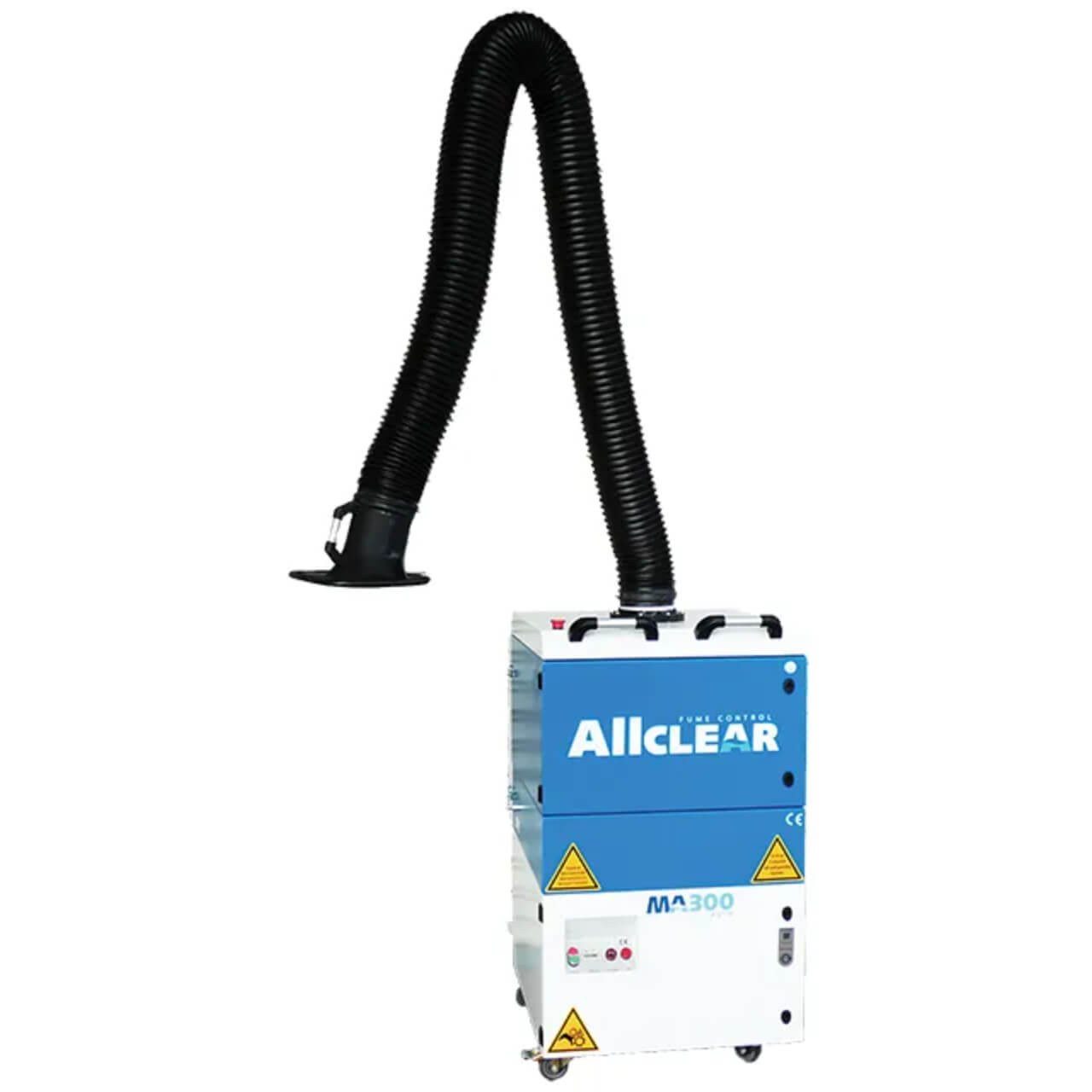

The ALLCLEAR MA300 AUTO is a 230V mobile fume extraction and filtration unit for welding and grinding, with automatic compressed-air filter cleaning system for high efficiency and ease of use. Equipped with single 3-metre arm, cleanable cartridge filters, working hour counter, filter fullness indicator, malfunction warning, special dust collection bin, and an impact plate above the filter to reduce the risk of burnout and increase the life of the filters. Operates off single-phase ~230V 10A power supply.
FEATURES:
- Cleanable cartridge filter for extended filter life
- Automatic filter cleaning saves operator down-time (start cleaning cycle at end of shift & walk away)
- Large 14m² filter surface area & nanofiber structure provide high filtration efficiency and long life
- Pre-seperator “impact plate” shields filters from coarse particles & sparks, reducing the risk of burnout and increasing filter life
- Unique drawer/bin allows safe removal of dust (ejected from filter cleaning) &; can be used even when machine is running
- High extraction performance (max air flow: 3,000m³ / hour)
- Compact and mobile
- Ergonomic design with easy access to all functions &; replacement filters
- Arcrobat arm joints use special materials &; design to provide long-term use and prevent wear/fatigue
- Durable hose material resist wear and high temperatues
- Lightweight and durable suction hood catches particles with a large inlet
SPECIFICATIONS:
- Power supply: Single phase ~230V 10A
- Dimensions (mm): L700 x W780 x H1200
- Weight: 122kg
- Motor size: 1.1kw
- Max air flow: 3,000m³ / hour
- Air flow at suction point: 1,270m³ / hour
- Filter surface area: 14m²
- Filter cleaning: Automatic - requires unit to be connected to compressed air supply.
- Noise level: 74 dBA
- Sound insulation: Acoustic sponge
- Body material: Galvanised steel
- Fan: Aluminium
