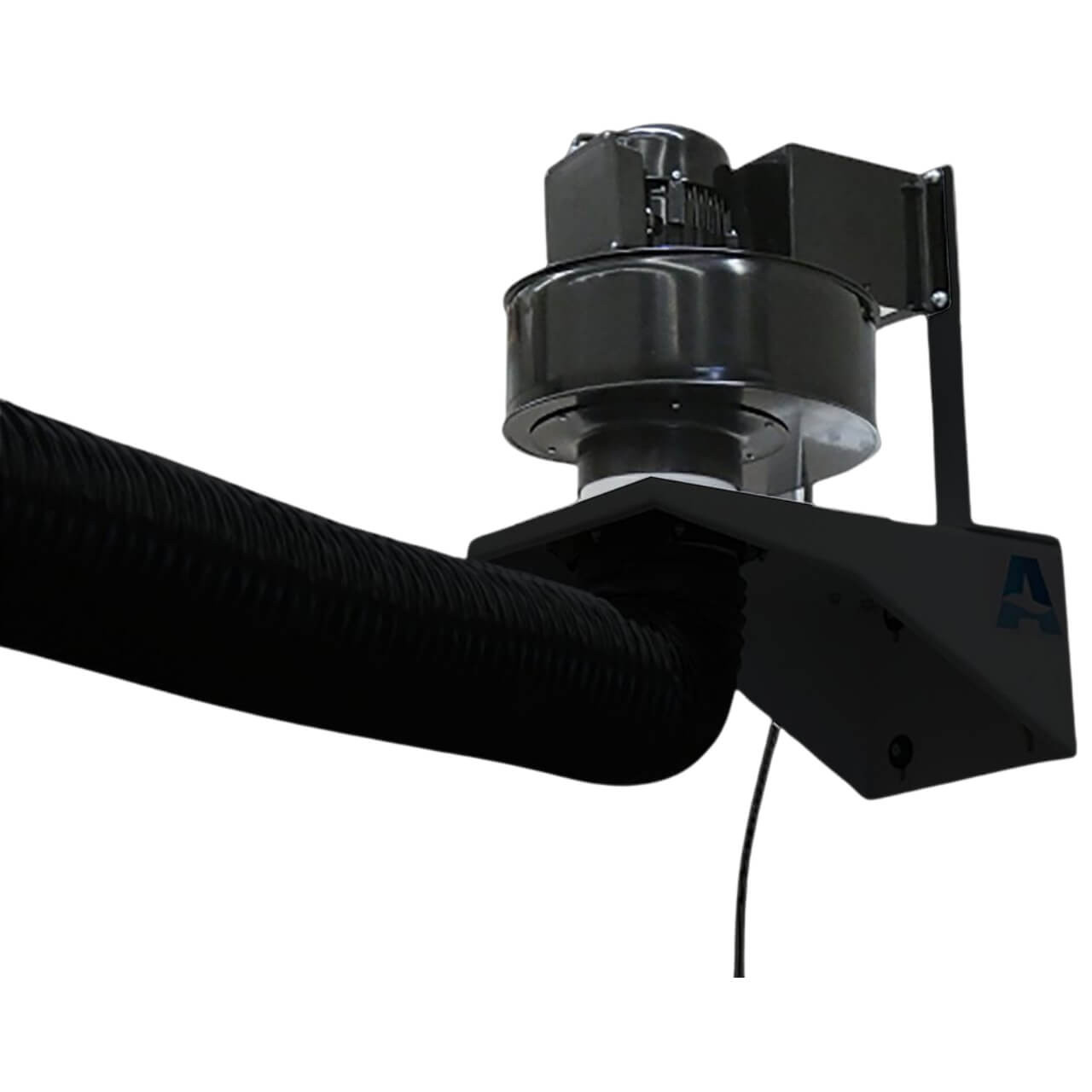

The ALLCLEAR FA25 Fan is an efficient and cost-effective solution for removing dust and fumes, commonly used together with ducted systems where fumes are ducted externally and/or to large central extraction/filter units. This 240V extraction fan extracts airborne contaminants with minimal intrusion in tight workspaces. The pivoting suction arms are easy to position and stay securely in place. Choose from two arm lengths (3m and 4m) and enjoy features such as 2500m3/hr max airflow, 150mm diameter suction hose, a 160mm diameter intake nozzle hood, temperature resistance up to 120C, a flexible PVC suction hose with a welded steel wire coil, and a wall-mounted bracket. (Note fan and arms sold separately).
FEATURES:
- Flexible PVC suction hose with a welded steel wire coil
- Temperature resistance up to 120C
- Square outlet on fan for easy ducting
- Fan includes simple on/off control box
SPECIFICATIONS:
- Power supply: Single phase ~230V 10A
- Max air flow: 2,500m³ / hour
- Motor size: 1.1kw
- Fan/Motor Weight: 27kg
- Dimensions (mm): L438 x W449 x H410
- Fan type: Static and dynamic balanced impeller
- Suction Hose Size: 150mm diameter
- Intake Hood Size: 160mm diameter
