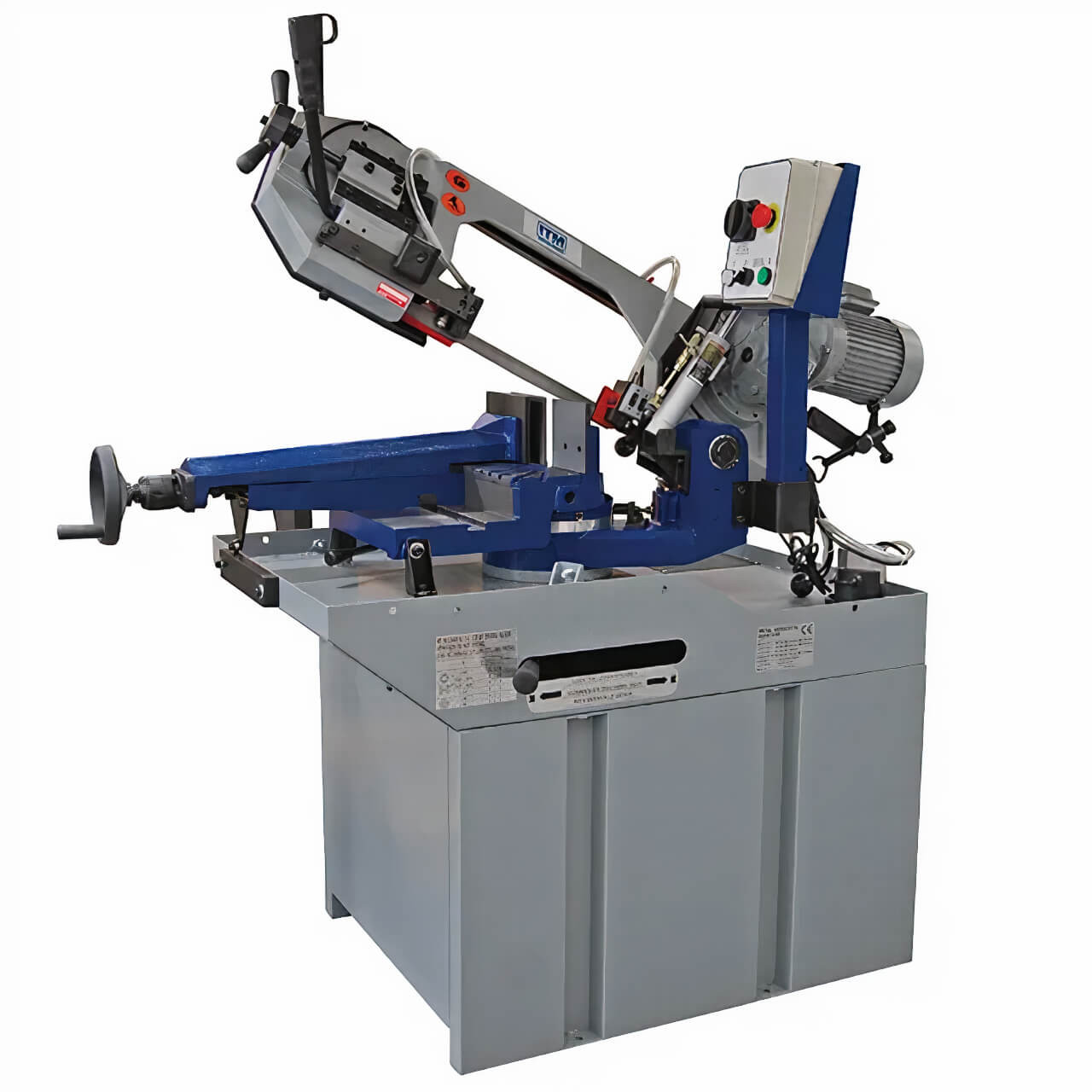

- 2 Way swivel head enables 0 °to 60° mitre cuts.
- Dual mode operation.
- Trigger switch with manual downfeed for small quick cuts.
- Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
- Dual direction heavy duty vice.
- Incorporated recirculating coolant system.
- Brass chip brush to help prevent blade breakage.
- Adjustable material stop for repetitive production.
- Comes complete with stand & blade
SPECIFICATIONS:
- Motor: 1.5HP Single Phase
- Blade Speed: Single Speed 72mpm
- Blade Size: 27mm x 0.9mm x 2460mm
- Bed Height: 900mm
- Weight: 285kg
-
- Cutting capacity:
- 90° - Round: 227mm / Box: 220 x 220mm / Rectangle: 260 x 110mm
- 45° Right - Round: 150mm / Box: 145 x 145mm / Rectangle: 200 x 125mm
- 60° Right - Round: 90mm / Box: 85 x 85mm
- 45° Left - Round: 110mm / Box: 110 x 110mm / Rectangle: 160 x 110mm
