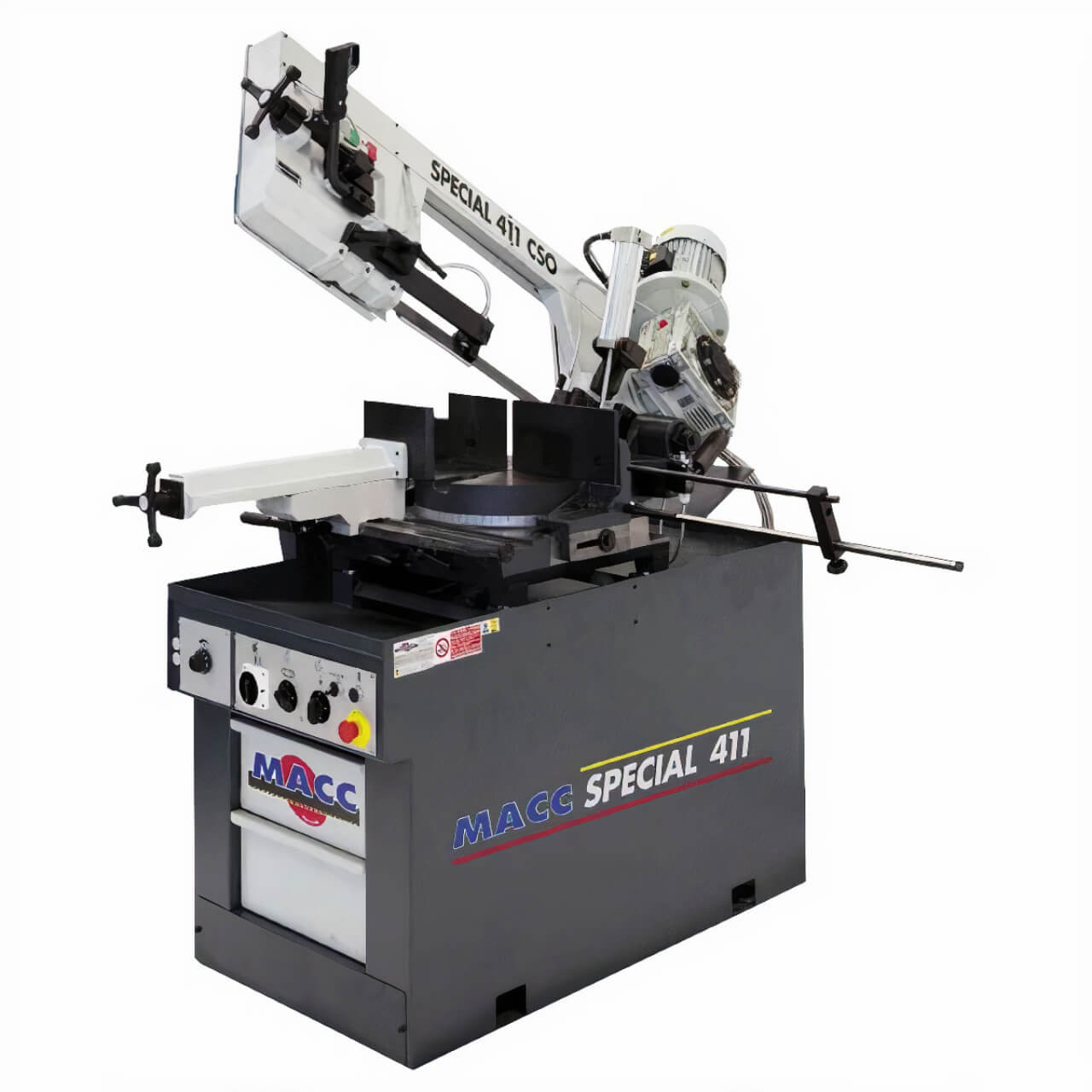

- Italian made quality.
- 2-way swivel head enables from 0° to 60° mitre cuts.
- Large capacity saw to operate on 240V 1 phase power.
- Dual mode operation.
- Trigger switch with manual down feed for small quick cuts.
- Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
- Dual direction heavy-duty vice.
- Incorporated recirculating coolant system.
- Adjustable material stop for repetitive production.
- Safety emergency stop switch.
- Comes complete with stand & blade.
- High quality Delta 240V 1 phase to 415V 3 phase frequency inverter to provide variable speed control.
SPECIFICATIONS:
- Motor: 2hp Single Phase (240V)
- Blade Speed: Variable 20 - 90mpm
- Blade Size: 27mm x 0.9mm x 3200mm
- Weight: 530kg
90° Cutting Capacity:
- Round: 300mm
- Square: 280mm
- Rectangle: 400 x 200mm
45° Right Cutting Capacity:
- Round: 240mm
- Square: 220mm
- Rectangle: 240 x 130mm
60° Right Cutting Capacity:
- Round: 140mm
- Square: 140 x 140mm
- Rectangle: 140mm
45° Left Cutting Capacity:
- Round: 180mm
- Square: 160mm
- Rectangle: 180 x 110mm
