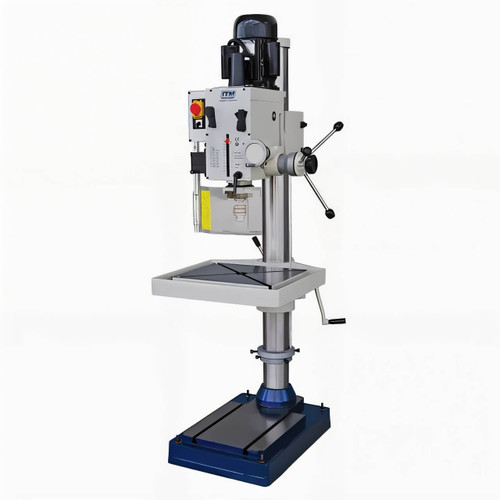

FEATURES:
- Quality precision machine for drilling, milling & tapping.
- No. 4 Morse taper spindle.
- 1120W motor, three phase.
- Micro feed precision.
- Geared head tilts 90° right & left.
- Forward and reverse operation.
- Recirculating coolant system.
- Accessories include arbor, draw bar, milling chuck, 16mm drill chuck, drill sleeves
SPECIFICATIONS:
- Max Drilling Capacity: 40mm
- Spindle Taper: MT4
- Spindle Nose To Base: 1180mm
- Spindle Nose To Table: 610mm
- Spindle To Column: 272.5mm
- Diameter Of Column: 115mm
- Quill Travel: 120mm
- Swing: 660mm
- Spindle Speeds (rpm): 75, 170, 280, 540, 960, 1600
- Table Surface: 600 x 190mm
- Cross Travel: 190mm
- Longitude Travel: 370mm
- Overall Height: 1770mm
- Base Dimensions: 650 x 450mm
- N.W. / G.W.: 340 / 390kg
- Shipping Dimensions: 820 x 720 x 1830mm
- Quality precision machine for drilling, milling & tapping.
- No. 4 Morse taper spindle.
- 1120W motor, three phase.
- Micro feed precision.
- Geared head tilts 90° right & left.
- Forward and reverse operation.
- Recirculating coolant system.
- Accessories include arbor, draw bar, milling chuck, 16mm drill chuck, drill sleeves
SPECIFICATIONS:
- Max Drilling Capacity: 40mm
- Spindle Taper: MT4
- Spindle Nose To Base: 1180mm
- Spindle Nose To Table: 610mm
- Spindle To Column: 272.5mm
- Diameter Of Column: 115mm
- Quill Travel: 120mm
- Swing: 660mm
- Spindle Speeds (rpm): 75, 170, 280, 540, 960, 1600
- Table Surface: 600 x 190mm
- Cross Travel: 190mm
- Longitude Travel: 370mm
- Overall Height: 1770mm
- Base Dimensions: 650 x 450mm
- N.W. / G.W.: 340 / 390kg
- Shipping Dimensions: 820 x 720 x 1830mm
