FEATURES

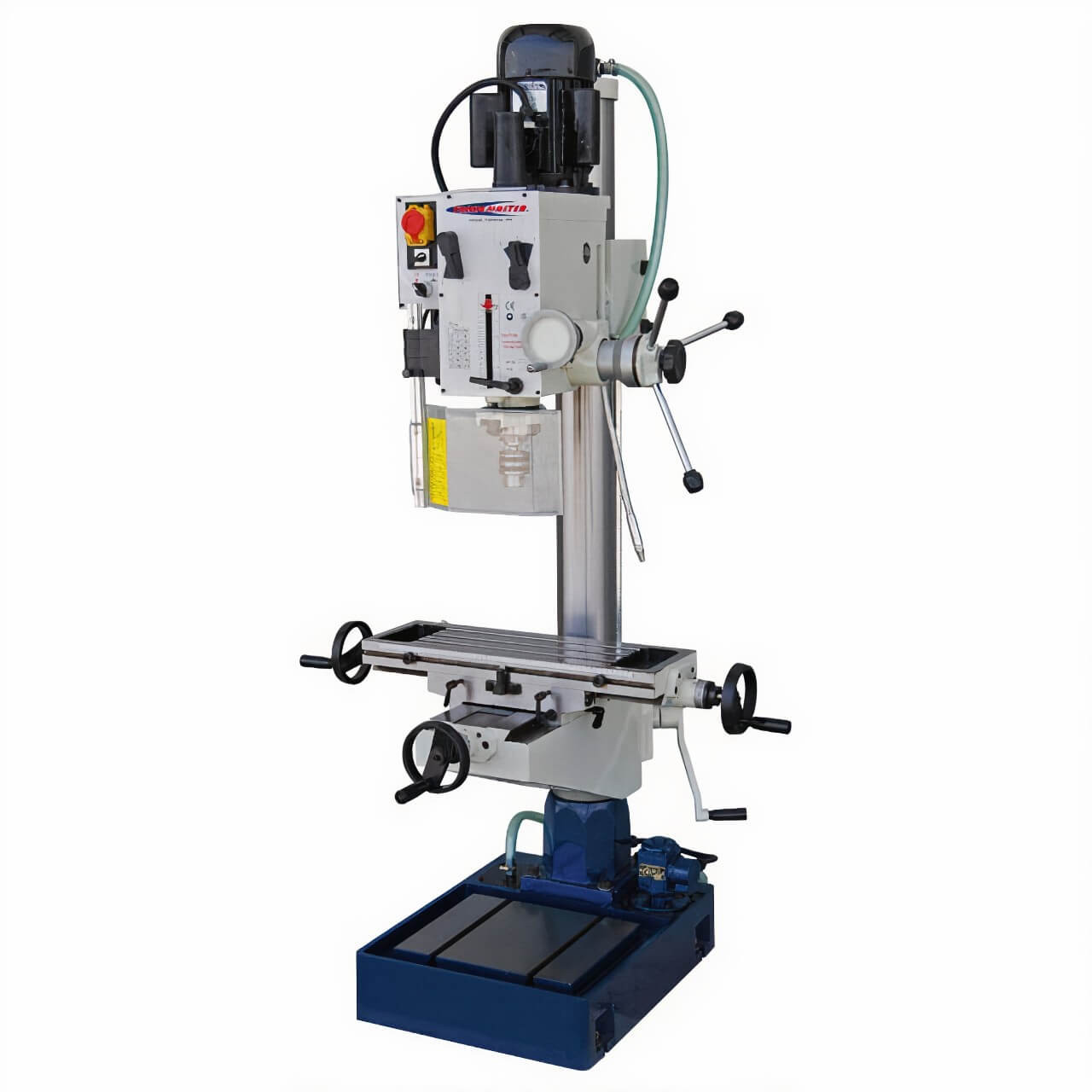

- Quality Precision Machine For Drilling, Milling & Tapping
- No. 4 Morse Taper Spindle
- 1120W Motor, Single Or Three Phase Available
- Micro feed precision
- Geared Head Tilts 90° right & left
- Forward and Reverse Operation
- Recirculating Coolant System
- Accessories Include
- Arbor
- Draw Bar
- Milling Chuck
- 20mm Drill Chuck
- Drill Sleeves
SPECIFICATIONS
Drilling Capacity: 40mm
Spindle Taper: #4MT
Spindle Nose to Base: 1180mm
Spindle Nose to Table: 610mm
Spindle to Colomn: 272.5mm
Diameter of Column: 115mm
Quill Travel: 120mm
Swing: 660mm
Spindle Speeds (rpm) : 75, 170, 280, 540, 960, 1600 RPM
Table Surface: 600mm x 190mm
Cross Travel: 190mm
Longitude Travel: 370mm
Overall Height: 1770mm
Base Dimensions: 650 x 450mm
N.W. / G.W. : 340 / 390Kg
Shipping Dimensions : 820 x 720 x 1830mm
- Quality Precision Machine For Drilling, Milling & Tapping
- No. 4 Morse Taper Spindle
- 1120W Motor, Single Or Three Phase Available
- Micro feed precision
- Geared Head Tilts 90° right & left
- Forward and Reverse Operation
- Recirculating Coolant System
- Accessories Include
- Arbor
- Draw Bar
- Milling Chuck
- 20mm Drill Chuck
- Drill Sleeves
SPECIFICATIONS
Drilling Capacity: 40mm
Spindle Taper: #4MT
Spindle Nose to Base: 1180mm
Spindle Nose to Table: 610mm
Spindle to Colomn: 272.5mm
Diameter of Column: 115mm
Quill Travel: 120mm
Swing: 660mm
Spindle Speeds (rpm) : 75, 170, 280, 540, 960, 1600 RPM
Table Surface: 600mm x 190mm
Cross Travel: 190mm
Longitude Travel: 370mm
Overall Height: 1770mm
Base Dimensions: 650 x 450mm
N.W. / G.W. : 340 / 390Kg
Shipping Dimensions : 820 x 720 x 1830mm
| Weight (Kgs): | 400 |
| Minimum Sale Qty: | 1 |
