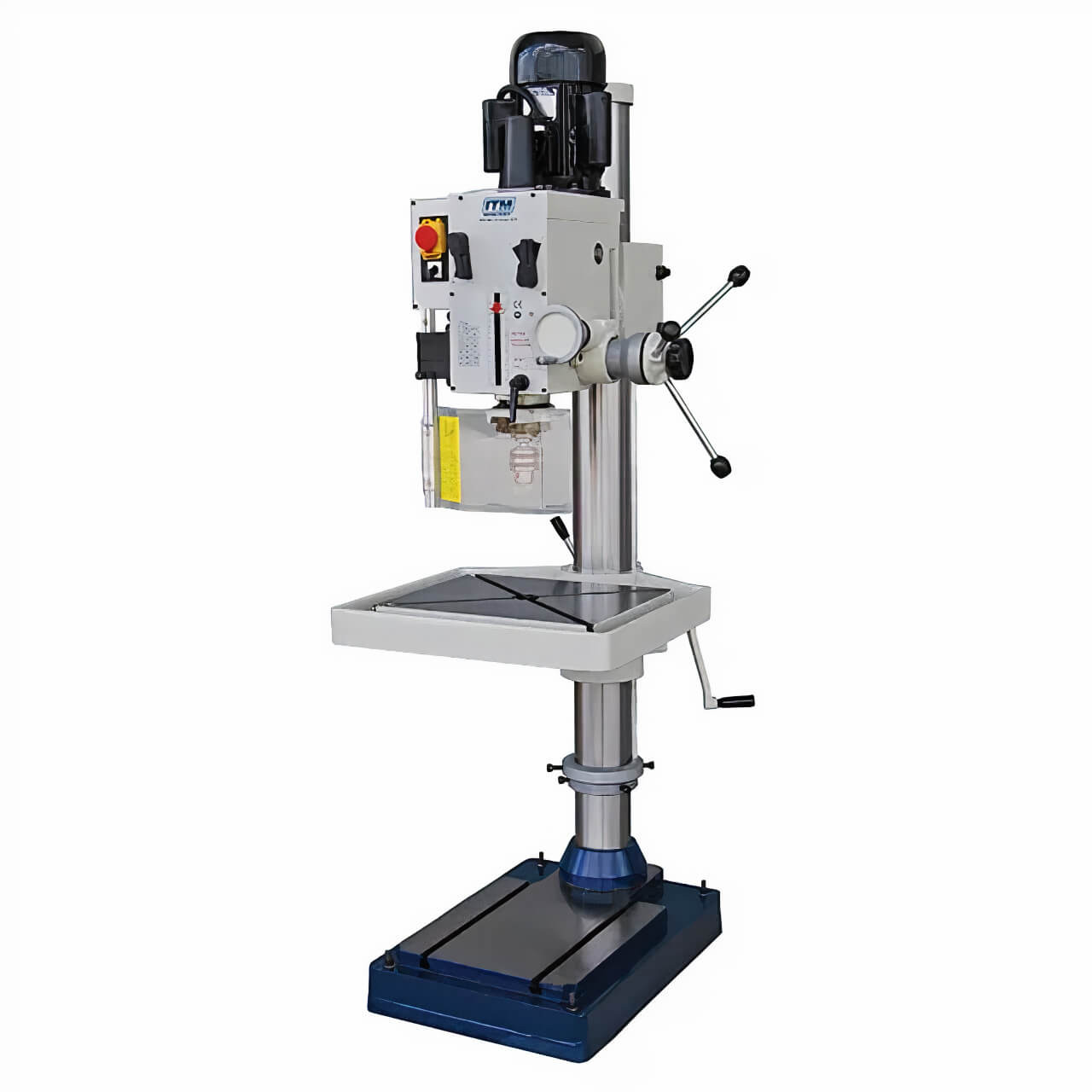

FEATURES:
- Quality precision machine for drilling & tapping.
- No. 4 Morse taper spindle.
- 1120W motor, three phase.
- Micro feed precision.
- Geared head tilts 90° right & left.
- Forward and reverse operation.
- Accessories include arbor, 16mm drill chuck, drill sleeves
SPECIFICATIONS:
- Max Drilling Capacity: 40mm
- Spindle Taper: 4MT
- Spindle Nose To Base: 1180mm
- Spindle Nose To Table: 715mm
- Spindle To Column: 272.5mm
- Diameter Of Column: 115mm
- Spindle Travel: 120mm
- Swing: 660mm
- Spindle Speeds: (rpm) 75, 170, 280, 540, 960, 1600
- Table Dimensions: 540 x 470mm
- Overall Height: 1770mm
- Base Dimensions: 650 x 450mm
- N.W. / G.W.: 320 / 370kg
- Shipping Dimensions: 740 x 720 x 1830mm
- Quality precision machine for drilling & tapping.
- No. 4 Morse taper spindle.
- 1120W motor, three phase.
- Micro feed precision.
- Geared head tilts 90° right & left.
- Forward and reverse operation.
- Accessories include arbor, 16mm drill chuck, drill sleeves
SPECIFICATIONS:
- Max Drilling Capacity: 40mm
- Spindle Taper: 4MT
- Spindle Nose To Base: 1180mm
- Spindle Nose To Table: 715mm
- Spindle To Column: 272.5mm
- Diameter Of Column: 115mm
- Spindle Travel: 120mm
- Swing: 660mm
- Spindle Speeds: (rpm) 75, 170, 280, 540, 960, 1600
- Table Dimensions: 540 x 470mm
- Overall Height: 1770mm
- Base Dimensions: 650 x 450mm
- N.W. / G.W.: 320 / 370kg
- Shipping Dimensions: 740 x 720 x 1830mm
