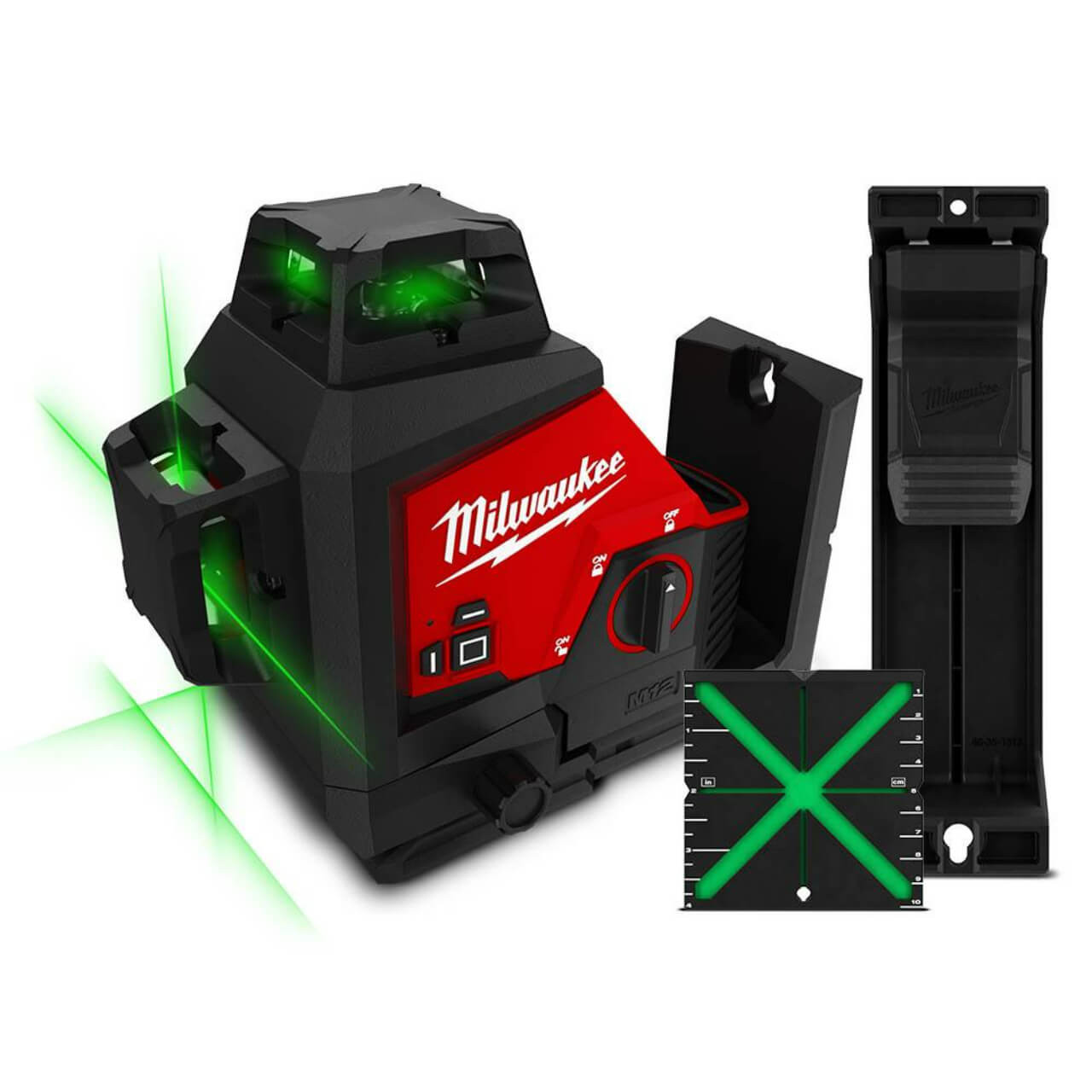

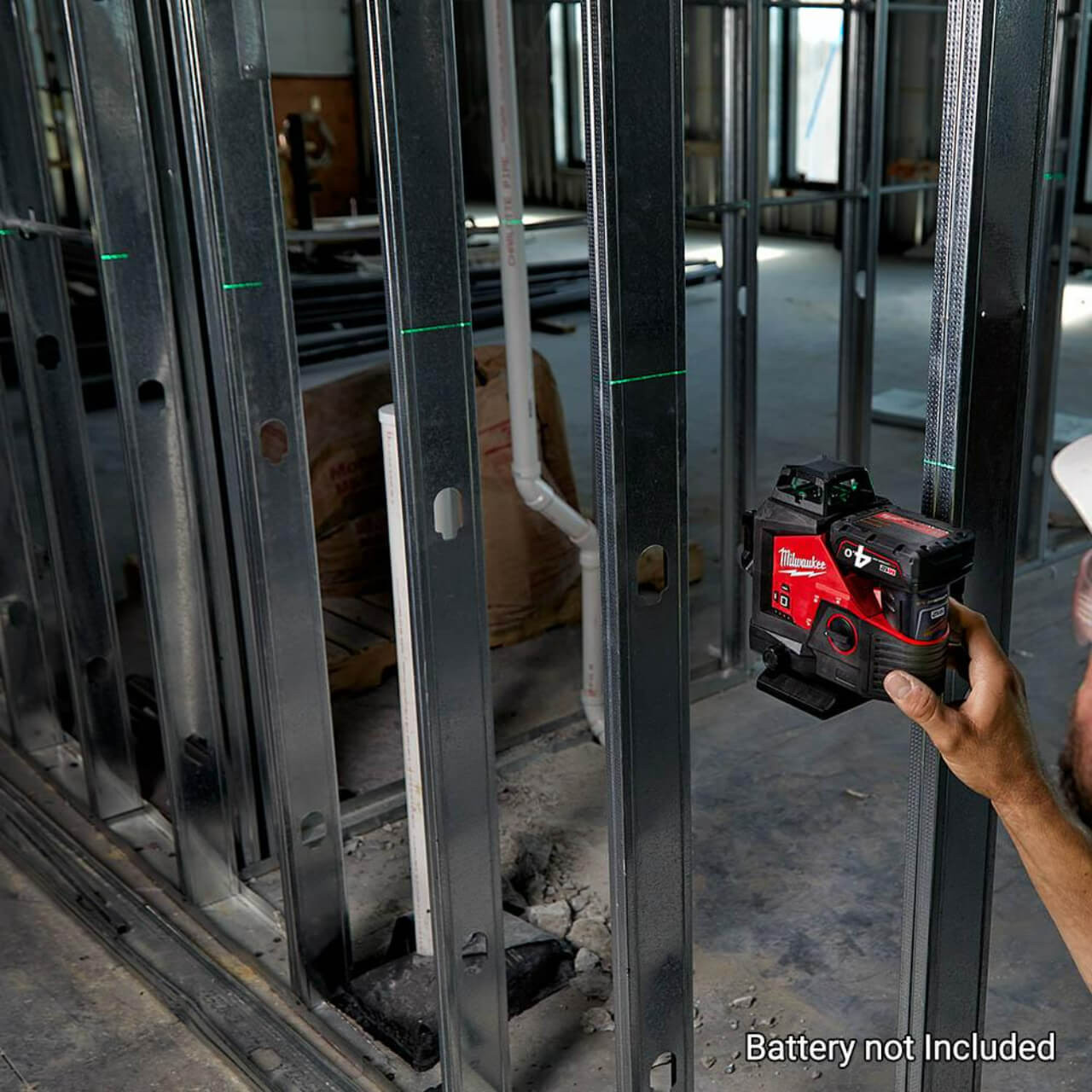

The M12 3 Plane Laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool. Powered by our M12 batteries for ultimate productivity. The high-intensity green laser offers users superior visibility up to 38m for long-range applications. The integrated bracket features a micro control and pivots on a plumb point for easy and fast alignment. The M12™ 3 Plane Laser features amplified rare earth magnets, providing a strong hold onto metal surfaces with the integrated screw and nail hang holes allowing easy and efficient setup in any environment.
FEATURES:
- 15 hours of runtime on a single charge using using M12 REDLITHIUM-ION 3.0Ah battery
- Visibility range of up to 38m
- High intensity green beams provide up to 4x the brightness compared to red lasers
- 1m drop rating
- IP 54 rating to protect the laser from harsh jobsite conditions
- 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport
- 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
- Fuel gauge on the top and side of the laser allows for fast checking of battery charge
INCLUDES:
- (1) x Laser Track Clip with Quick Connect
- (1) x Laser Target
- (1) x Carry Case
SPECIFICATIONS:
- Range with Detector: 50m
- Working Range: 38m
- Number of Beams: 3 Plane
- Accuracy: ±3.18mm over 10m
- Thread Mount: 1/4"-20, 5/8"-11
- Locking Pendulum: Yes
- Self-Leveling: ±4° Tilt
- IP Rating: IP54
- Impact Resistant: 1m
- Dimensions (L x W x H): 198mm x 104mm x 165mm
- Weight: 1.09 kg
