FEATURES:
- Handy, powerful cordless nibblers for effortless cutting of flat and shaped sheets
- Good cornering ability for notches and interior cut-outs of a radius of 40 mm or more
- Fast, tool-free adjustment of cutting direction by up to 360°, in 45° steps
- High feed rate for faster working, thanks to an efficient brushless motor
- Infinitely adjustable cutting speed for individual customisation to the given material and task at hand
- Distortion- and spark-free cutting, without the annoyance of metal dust
- Comfortable handling thanks to low weight, slim grip area and switch located on the top
- Metabo Quick: tool-free quick changing of dies and punches
- Electronic overload protection for long service life
- With chip collection bag to protect against contact corrosion from ejected chips
- Can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-system.com
SPECIFICATIONS:
Characteristics:
- Type of battery pack: Li-Power
- Battery voltage: 18 V
- Max. sheet thickness for steel: 400 N/mm²1.6 mm / 0.0629 "
- Max. sheet thickness for steel: 600 N/mm21.2 mm / 0.0472 "
- Max. sheet thickness for steel: 800 N/mm20.7 mm / 0.0275 "
- Max. sheet thickness for aluminium: 250 N/mm22 mm / 0.0787 "
- Strokes in idle: 660 - 2360 rpm
- Cutting speed: 1.2 - 2.6 m/min // 47.2 - 102.3 inch/min
- Cutting width: 5 mm / 0.1968 "
- Starting hole diameter: 21 mm / 0.8267 "
- Smallest curve radius: 40 mm / 1.5748 "
- Weight without battery pack: 1.3 kg / 2.9 lbs
- Weight with battery pack: 1.7 kg / 3.7 lbs
Vibration:
- Cutting of sheets: 8 m/s²
- Uncertainty of measurement K: 1.6 m/s²
Noise emission:
- Sound pressure level: 96 dB(A)
- Sound power level (LwA): 107 dB(A)
- Uncertainty of measurement K: 3 dB(A)
SCOPE OF DELIVERY:
- Punch
- Die
- Chip Collection Bag
- Combo-spanner
- without battery pack, without charger

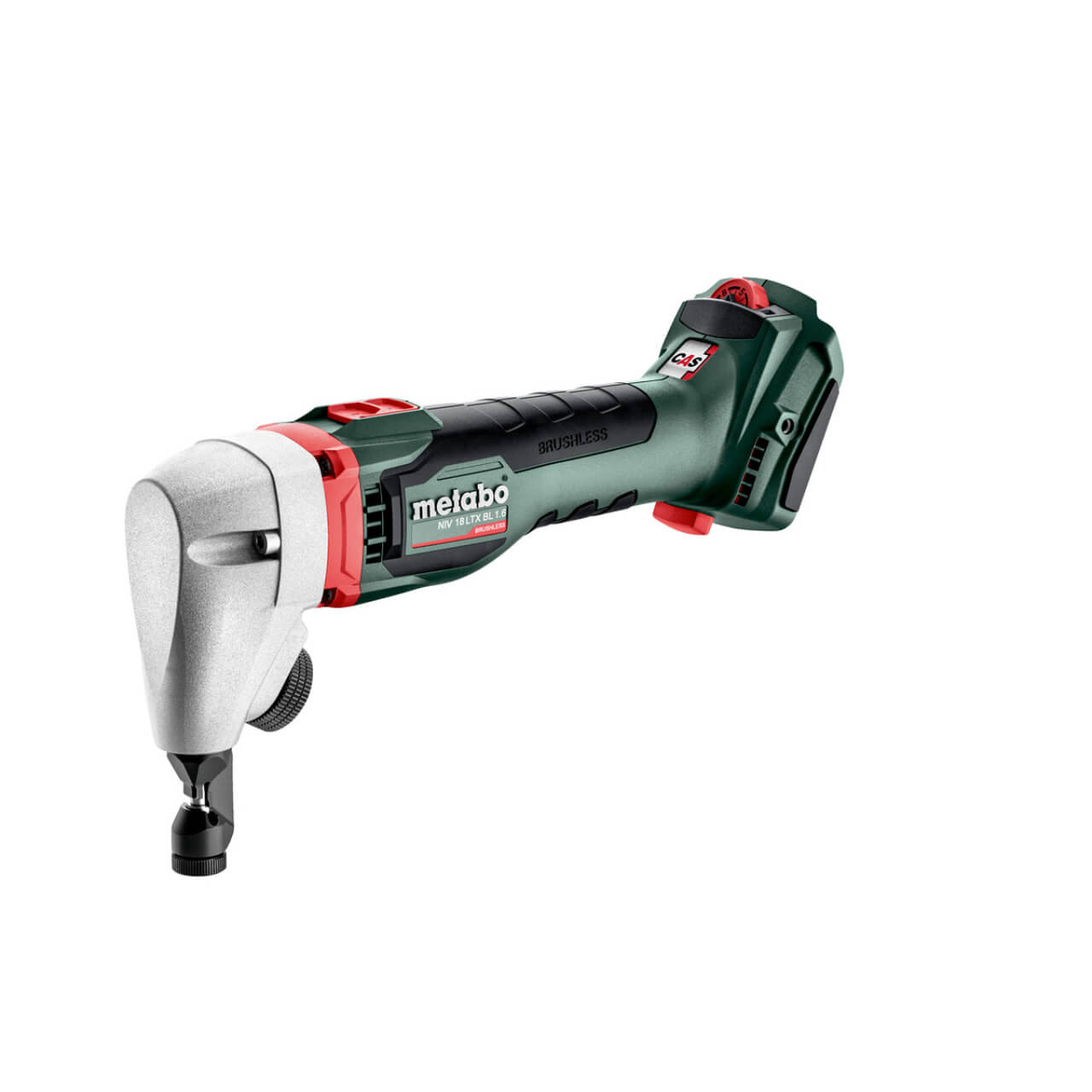

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
- Handy, powerful cordless nibblers for effortless cutting of flat and shaped sheets
- Good cornering ability for notches and interior cut-outs of a radius of 40 mm or more
- Fast, tool-free adjustment of cutting direction by up to 360°, in 45° steps
- High feed rate for faster working, thanks to an efficient brushless motor
- Infinitely adjustable cutting speed for individual customisation to the given material and task at hand
- Distortion- and spark-free cutting, without the annoyance of metal dust
- Comfortable handling thanks to low weight, slim grip area and switch located on the top
- Metabo Quick: tool-free quick changing of dies and punches
- Electronic overload protection for long service life
- With chip collection bag to protect against contact corrosion from ejected chips
- Can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-system.com
SPECIFICATIONS:
Characteristics:
- Type of battery pack: Li-Power
- Battery voltage: 18 V
- Max. sheet thickness for steel: 400 N/mm²1.6 mm / 0.0629 "
- Max. sheet thickness for steel: 600 N/mm21.2 mm / 0.0472 "
- Max. sheet thickness for steel: 800 N/mm20.7 mm / 0.0275 "
- Max. sheet thickness for aluminium: 250 N/mm22 mm / 0.0787 "
- Strokes in idle: 660 - 2360 rpm
- Cutting speed: 1.2 - 2.6 m/min // 47.2 - 102.3 inch/min
- Cutting width: 5 mm / 0.1968 "
- Starting hole diameter: 21 mm / 0.8267 "
- Smallest curve radius: 40 mm / 1.5748 "
- Weight without battery pack: 1.3 kg / 2.9 lbs
- Weight with battery pack: 1.7 kg / 3.7 lbs
Vibration:
- Cutting of sheets: 8 m/s²
- Uncertainty of measurement K: 1.6 m/s²
Noise emission:
- Sound pressure level: 96 dB(A)
- Sound power level (LwA): 107 dB(A)
- Uncertainty of measurement K: 3 dB(A)
SCOPE OF DELIVERY:
- Punch
- Die
- Chip Collection Bag
- Combo-spanner
- without battery pack, without charger
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
