FEATURES:
- Large stroke, therefore suitable for use of core drills, spiral drills and countersinks
- Magnetic base with high holding power permits working on vertical surfaces and overhead
- Robust Metabo marathon motor with internal wiring for long service life
- Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
- Clockwise/anti-clockwise rotation with thread cutter
- Durable two-speed gearbox with oil bath lubrication for ideal speeds
- Integrated coolant container for easy to dose internal cooling of the core drill
- Bright LED light for easy alignment in poor light conditions
- Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
- Protective circuit starts motor only if the magnet is activated
- Overload protection: protects the motor from overheating
- Restart protection: prevents unintentional start-up after power supply interruption
- Lockable slide for comfortable tool change
- Handle for easy carrying and lifting
- Resistant mains cable (5 m) with rubber shroud
SPECIFICATIONS:
Characteristics:
- Rated input power: 1200 W
- Output power: 620 W
- Max. drill-Ø with core drill: 50 mm / 2 "
- Max. drill-Ø with spiral drill: 20 mm / 3/4 "
- Maximum drilling depth: 50 mm / 2 "
- Thread cutting: M 16
- No-load speed: 100 - 250 / 200 - 450 rpm
- Revolutions at rated load: 250 / 450 rpm
- Bit retainer: Morse taper MK 2 / Weldon shaft 19 mm (3/4")
- Weight: 12.7 kg / 28 lbs
- Cable length: 5 m / 16 ft
- Torque: 90 / 50 Nm // 797 / 443 in-lbs
- Max. depth of feed: 160 mm / 6 5/16 "
- Max. magnetic holding force: 12250 N

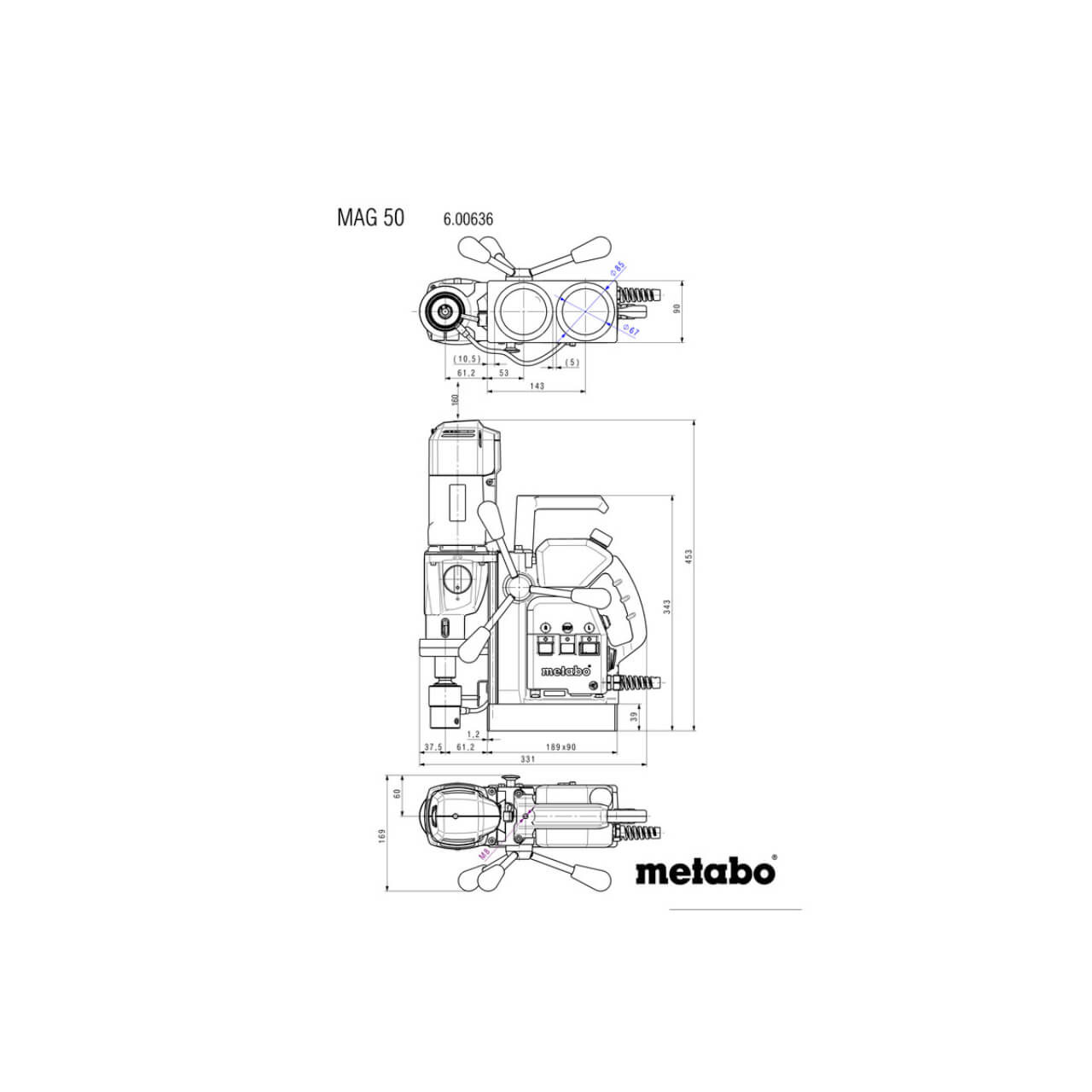

- Dimensions of the magnet base: 90 x 190 mm // 3 9/16 x 7 1/2 "
- Height carriage lowest position: 457 mm / 18 "
- Height carriage topmost position: 610 mm / 24 "
Vibration:
- Drilling in metal: 2.5 m/s²
- Uncertainty of measurement K: 1.5 m/s²
Noise emission:
- Sound pressure level: 79 dB(A)
- Sound power level (LwA): 92 dB(A)
- Uncertainty of measurement K: 3 dB(A)
SCOPE OF DELIVERY:
- Industrial holder for Weldon shank 19 mm
- Ejector pins 75 and 100 mm
- MK 2 drift key
- Safety strap
- Hexagon socket wrench SW 5
- Swarf protection guard
- Transport case
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
- Large stroke, therefore suitable for use of core drills, spiral drills and countersinks
- Magnetic base with high holding power permits working on vertical surfaces and overhead
- Robust Metabo marathon motor with internal wiring for long service life
- Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
- Clockwise/anti-clockwise rotation with thread cutter
- Durable two-speed gearbox with oil bath lubrication for ideal speeds
- Integrated coolant container for easy to dose internal cooling of the core drill
- Bright LED light for easy alignment in poor light conditions
- Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
- Protective circuit starts motor only if the magnet is activated
- Overload protection: protects the motor from overheating
- Restart protection: prevents unintentional start-up after power supply interruption
- Lockable slide for comfortable tool change
- Handle for easy carrying and lifting
- Resistant mains cable (5 m) with rubber shroud
SPECIFICATIONS:
Characteristics:
- Rated input power: 1200 W
- Output power: 620 W
- Max. drill-Ø with core drill: 50 mm / 2 "
- Max. drill-Ø with spiral drill: 20 mm / 3/4 "
- Maximum drilling depth: 50 mm / 2 "
- Thread cutting: M 16
- No-load speed: 100 - 250 / 200 - 450 rpm
- Revolutions at rated load: 250 / 450 rpm
- Bit retainer: Morse taper MK 2 / Weldon shaft 19 mm (3/4")
- Weight: 12.7 kg / 28 lbs
- Cable length: 5 m / 16 ft
- Torque: 90 / 50 Nm // 797 / 443 in-lbs
- Max. depth of feed: 160 mm / 6 5/16 "
- Max. magnetic holding force: 12250 N
- Dimensions of the magnet base: 90 x 190 mm // 3 9/16 x 7 1/2 "
- Height carriage lowest position: 457 mm / 18 "
- Height carriage topmost position: 610 mm / 24 "
Vibration:
- Drilling in metal: 2.5 m/s²
- Uncertainty of measurement K: 1.5 m/s²
Noise emission:
- Sound pressure level: 79 dB(A)
- Sound power level (LwA): 92 dB(A)
- Uncertainty of measurement K: 3 dB(A)
SCOPE OF DELIVERY:
- Industrial holder for Weldon shank 19 mm
- Ejector pins 75 and 100 mm
- MK 2 drift key
- Safety strap
- Hexagon socket wrench SW 5
- Swarf protection guard
- Transport case
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
