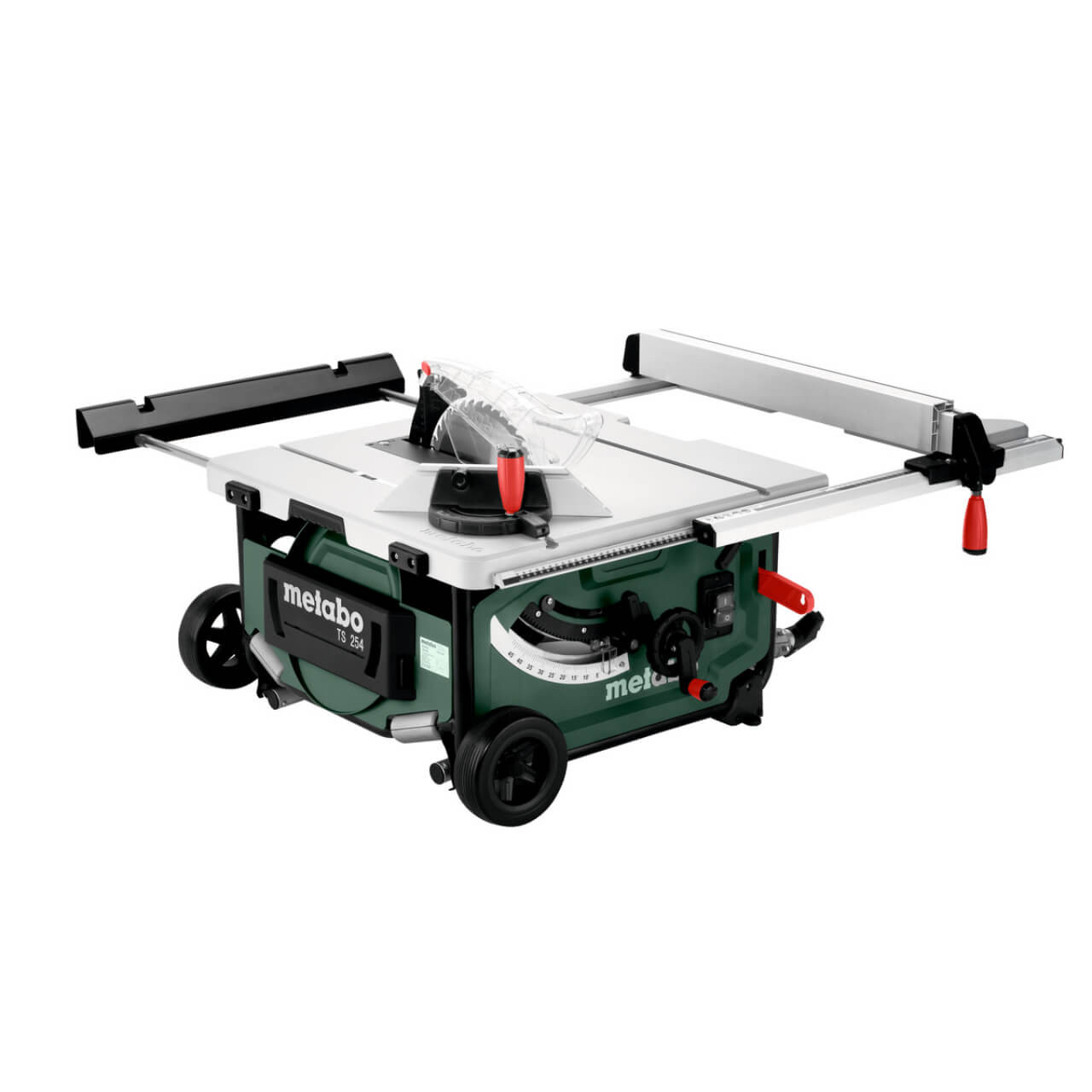

- Extremely light table saw with trolley function for more mobility on the construction site
- Integrated stand made from stable die-cast aluminium (patented): unfolded in a matter of seconds with secure stand
- Very compact with folded stand for comfortable transport and space-saving storage
- Second working height for working near ground level
- Anti-twist tubular frame construction for highest demands on the building site and during installations
- Cables and all add-on components for transport can be stored on the casing
- Powerful motor with electronic overload protection
- Motor brake for quick stop of the saw blade in 3 seconds
- Restart protection: prevents unintentional start-up after power supply interruption
- Soft start for long service life of motor and drive
- Precise rip fence with double clamping and quick fastening
- Precise saw blade inclination via gear guide
- Automatic resetting to 0 – 45 ° after undercuts
- Easysaw blade change with spindle lock
- Splitting wedge can be lowered without tools for hidden cuts and transport
- Precise, extendable table width extension for extra large working surfaces
SPECIFICATIONS:
Characteristics:
- Dimensions: 740 x 750 x 355 mm // 2.5 x 2.5 x 1.2 ft
- Max. support surface: 970 x 995 mm // 38 3/16 x 39 3/16 "
- Working height: 850 / 355 mm // 33 1/2 / 14 "
- Cutting height: 0 - 87 mm // 0 - 3 3/8 "
- Maximum cutting height 90/45°: 87 / 54 mm // 3 7/16 / 2 "
- Maximum cutting width at rip fence: 630 mm / 24 3/4 "
- Maximum material width at mitre fence: 200 mm / 7 7/8 "
- No-load speed: 4200 rpm
- Cutting speed: 56 m/s / 184 ft/s
- Saw blade: 254 x 30 mm // 10 x 1.181 "
- Saw blade swivel range: -1.5 - 46.5 °
- Mains voltage: 220 - 240 V
- Rated input power: 2000 W
- Rated input power S1 100%: 1700 W
- Rated input power S6 20%: 2000 W
- Weight: 33.4 kg / 73.6 lbs
- Cable length: 3.1 m / 10 ft
Noise emission:
- Sound pressure level: 99 dB(A)
- Sound power level (LwA): 112 dB(A)
- Uncertainty of measurement K: 3 dB(A)
SCOPE OF DELIVERY:
- Carbide saw blade with alternately bevel-ground tips (40 teeth)
- Stand
- Hard rubber tyres
- Rip Fence
- Mitre Fence
- Table Length Extension
- Table width extension (right)
- Saw blade case
- Push stick
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Minimum Sale Qty: | 1 |
