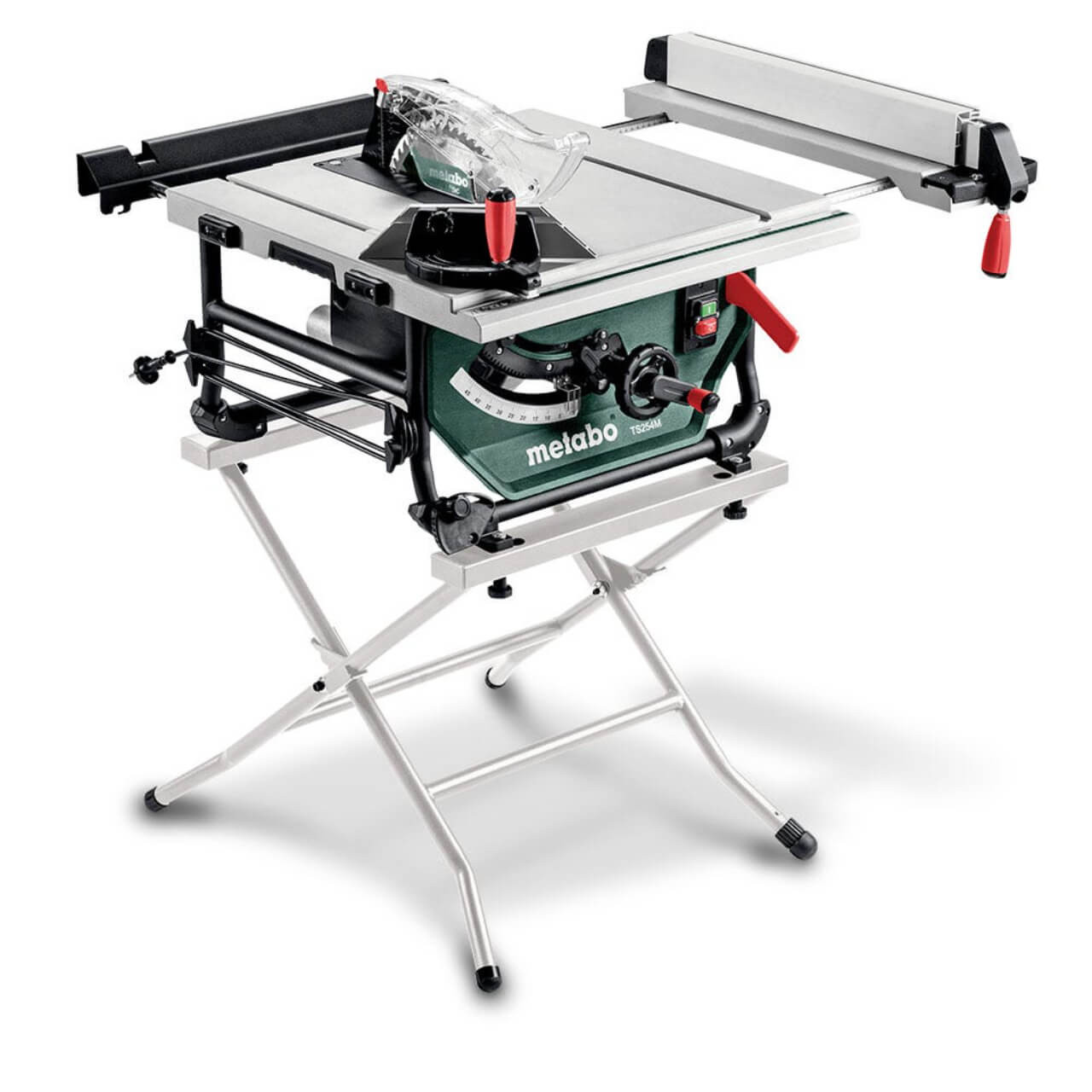

- Compact mobile table saw with impressive cutting performance and high comfort for working
- Anti-twist tubular frame construction for highest demands on the building site and during installations
- Cables and all add-on components for transport can be stored on the casing
- Powerful motor with electronic overload protection
- Motor brake for quick stop of the saw blade in 3 seconds
- Restart protection: prevents unintentional start-up after power supply interruption
- Soft start for long service life of motor and drive
- Precisely adjustable rip fence with double clamping and quick fastening
- Precise saw blade inclination via gear guide
- Automatic resetting to 0 – 45 ° after undercuts
- Easy saw blade change with spindle lock
- Splitting wedge can be lowered without tools for hidden cuts and transport
- Precise, extendable table width extension for extra large working surfaces
- Foldable table
- Max. table load with attached machine: 125 kg (machine + work-piece)
SPECIFICATIONS:
Characteristics:
- Rated input power: 1500W
- Cutting height: 0 - 80mm
- Maximum cutting height 90°/45°: 80mm/48mm
- Maximum cutting width at rip fence: 520mm
- Maximum material width at mitre fence: 195mm
- No-load speed: 4200rpm
- Cutting speed: 56m/s
- Saw blade: 254 x 30mm
- Saw blade swivel range: -1.5° - 46.5°
- Cable length: 2.3m
- Working height: 334mm
- Dimensions (L x W x H): 669mm x 748mm x 334mm
- Weight (without cable): 24.4kg
Noise emission:
- Sound pressure level: 92dB(A)
- Sound power level (LwA): 105dB(A)
- Uncertainty of measurement K: 3dB(A)
SCOPE OF DELIVERY:

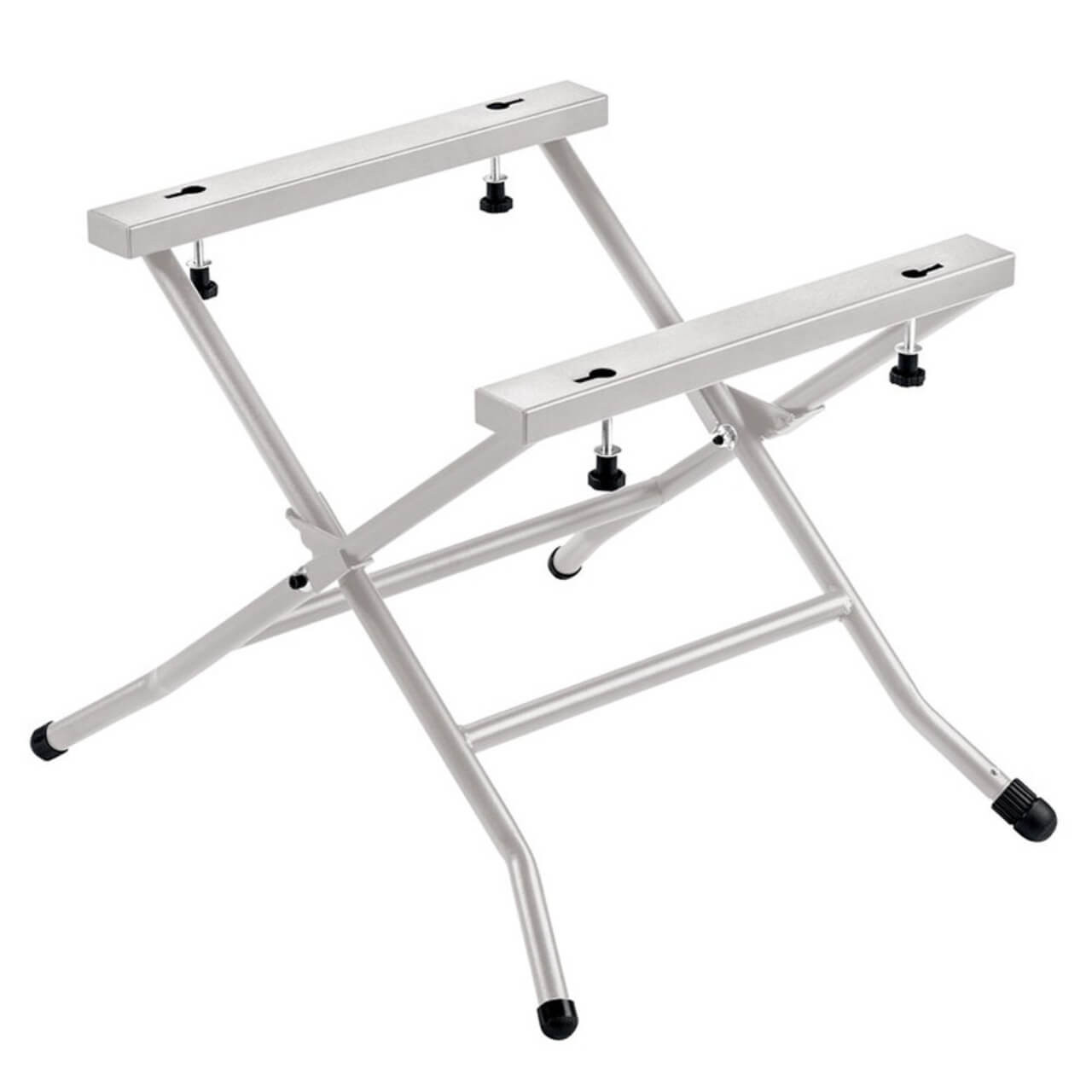

- 1 x Table saw stand
- 1 x Carbide saw blade with alternately bevel-ground tips (40 teeth)
- 1 x Rip Fence
- 1 x Mitre Fence
- 1 x Table Length Extension
- 1 x Table width extension (right)
- 1 x Push stick
