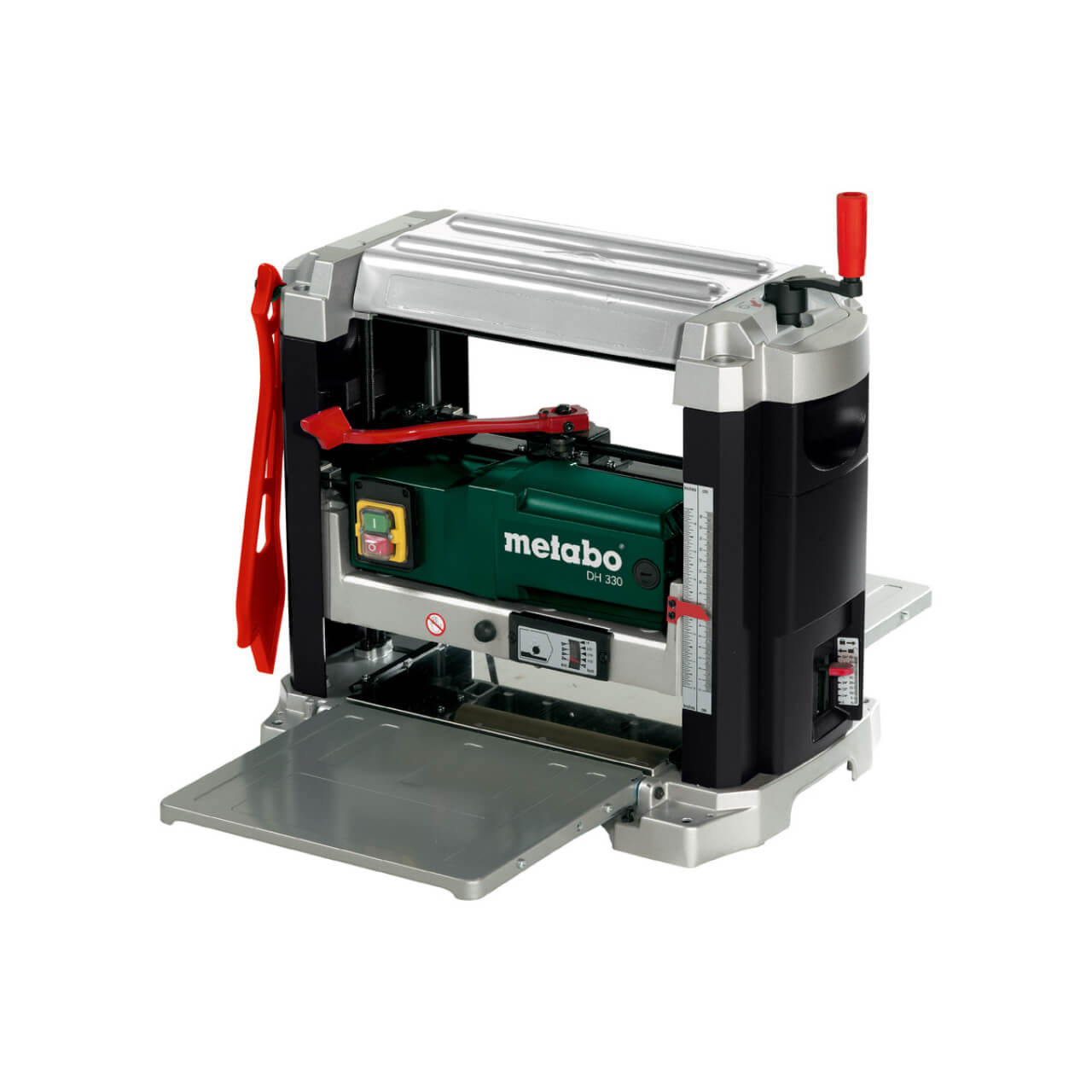

FEATURES:
- Ideal for mobile use due to low weight
- Stable gear for uniform work piece feed

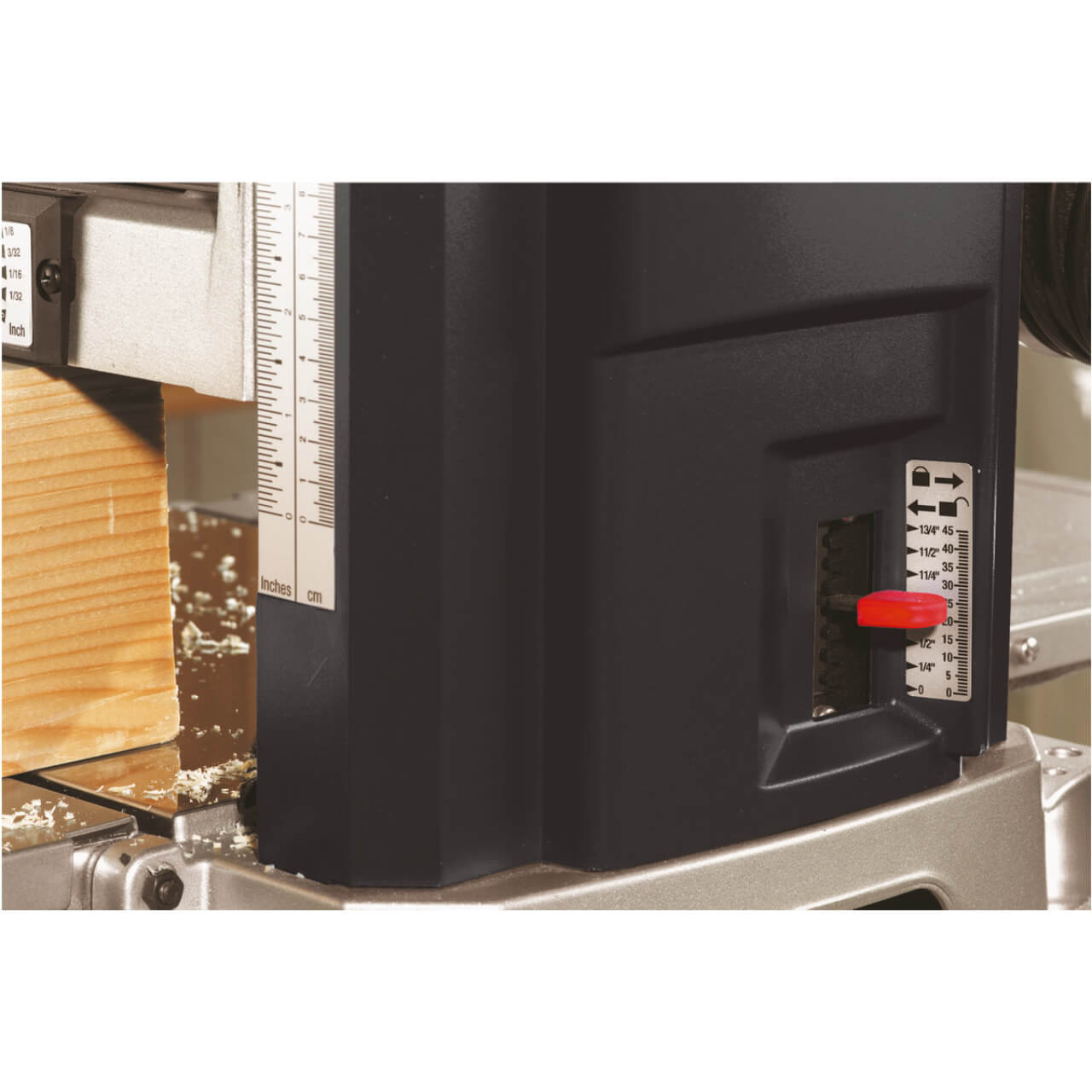

- Convenient height adjustment with crank handle
- Easy setting of common passage heights using stop points
- Powerful universal motor for powerful lugging drive and even planing result
- Restart protection: prevents unintentional start-up after power supply interruption
- Precise thickness adjustment for quick and exact planing
- Large feed and exit tables support the conveyance of long materials
- Planing locking mechanism prevents unintentional adjustment of the chip removal setting
SPECIFICATIONS:
Characteristics:
- Dimensions: 579 x 857 x 574 mm // 1.9 x 2.9 x 1.9 ft
- Chip removal bench thicknesser: 0 - 3 mm // 0 - 1/8 "
- Material thickness table: Cast aluminium / special steel aluminium
- Thickness table L x W: 840 x 330 mm // 33 x 13 "
- Passage height/width: 152 / 330 mm // 6 / 13 "
- Feed rate: 7.51 m/min / 25 ft/min
- Diameter of blade shaft: 47 mm / 1 7/8 "
- Number of blades: 2
- Revolutions of blade shaft: 9800 rpm
- Mains voltage: 220 - 240 V
- Rated input power: 1800 W
- Weight: 35 kg / 77.2 lbs
Noise emission:
- Uncertainty of measurement K4 dB(A)
SCOPE OF DELIVERY:
- 2 integrated HSS reversible planer blades
- Push stick
- Extraction Nozzles
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
