- Sliding function for wide work pieces.

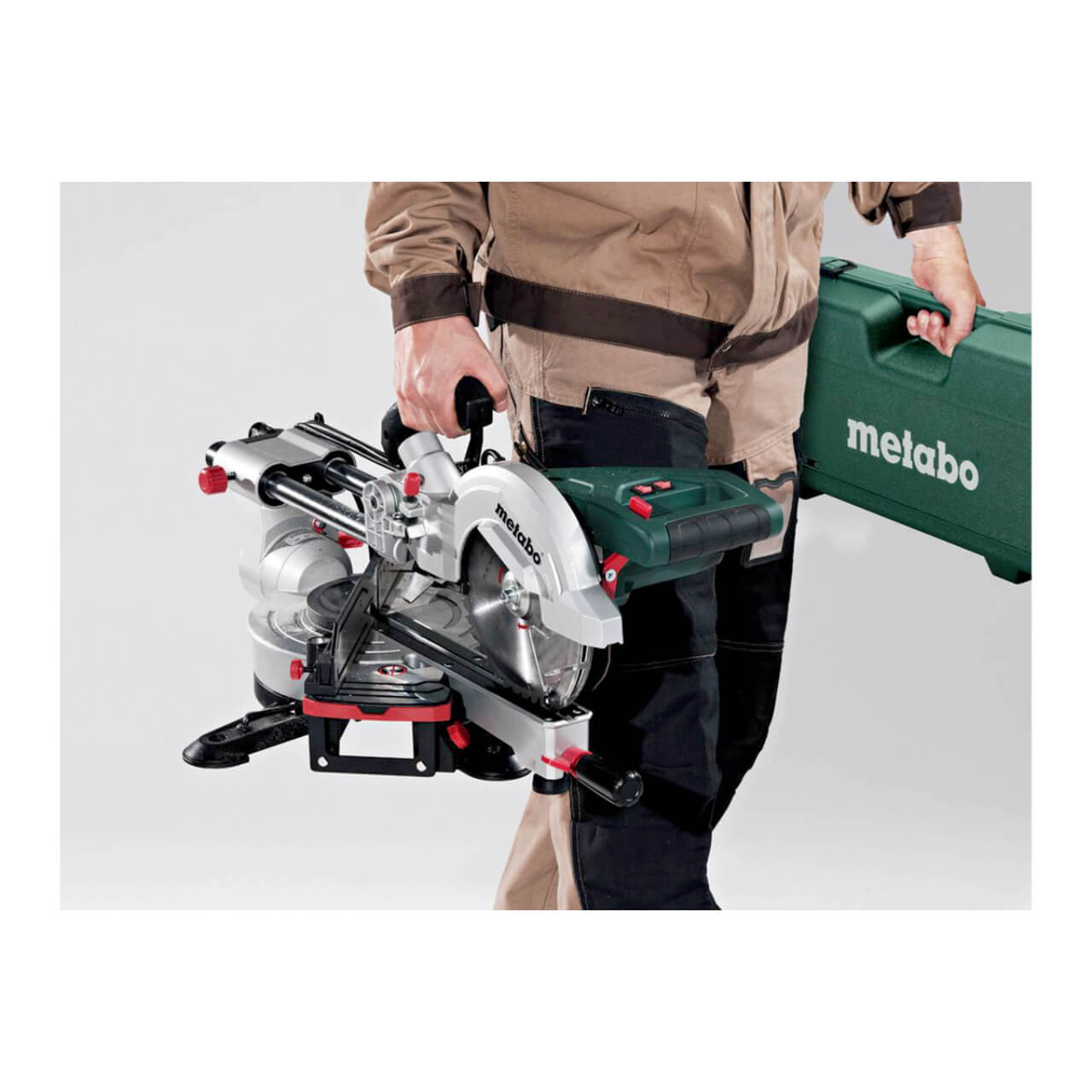

- Compact light weight, suitable also for one-handed transport
- Robust die-cast aluminium design for the highest demands
- Easy transport thanks to ergonomically-designed handles and saw head lock
- Effective dust extraction via integrated dust scoop
- Fast and precise setting of common angles using stop points
- Laser for exact display of the cutting line (mains powered, no batteries required)
- Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath
- Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
- Sliding high rear fence profiles for safe sawing
- Material clamp for secure fixing of the work piece from the top or front
- Depth guide for easy creation of grooves
- Saw head can be inclined to the left, with additional angle range for undercuts
- All scales and operating elements are visible fromthe working position and can be operated intuitively
- Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required
SPECIFICATIONS:
Characteristics:
- Dimensions: 790 x 515 x 515 mm // 2.6 x 1.7 x 1.7 ft
- Support surface: 340 x 775 mm
- Maximum cutting width 90°/45°: 305 / 205 mm // 12 / 8 1/16 "
- Maximum cutting depth at 90°/45°: 92 / 47 mm // 3 5/8 / 1 13/16 "
- Cutting capacity 90°/90°: 305 x 92 mm // 12 x 3 5/8 "
- Cutting capacity 45°/45°: 205 x 47 mm // 8 1/16 x 1 27/32 "
- Turntable setting left/right: 47 / 47 °
- Saw blade tilt left/right: 47 / 2 °
- Saw blade: 254 x 30 mm // 10 x 1.181 "
- Rated input power S1 100%: 1450 W
- Rated input power S6 20%: 1800 W
- No-load speed: 4500 rpm
- Revolutions at rated load: 3150 rpm
- Cutting speed: 60 m/s // 197 ft/s
- Weight: 16.3 kg / 36 lbs
- Cable length: 2 m / 7 ft
Noise emission:
- Sound pressure level: 99 dB(A)
- Sound power level (LwA): 106 dB(A)
- Uncertainty of measurement K: 3 dB(A)
SCOPE OF DELIVERY:
- Carbide saw blade (48 teeth)
- 2 Table length extensions
- Length Guide
- Material clamp
- Tool for saw blade change
- Cable winder
- Chip Collection Bag
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
