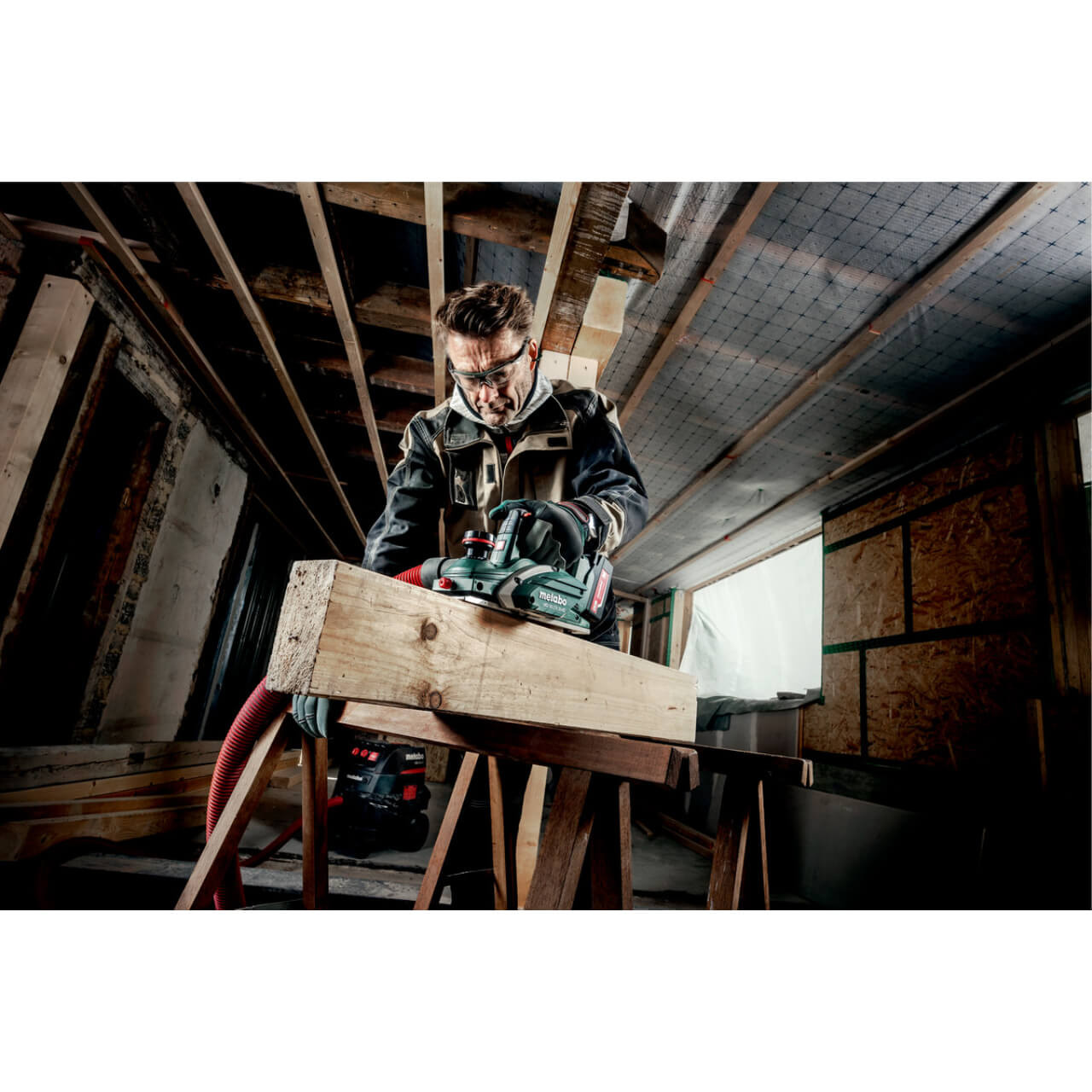

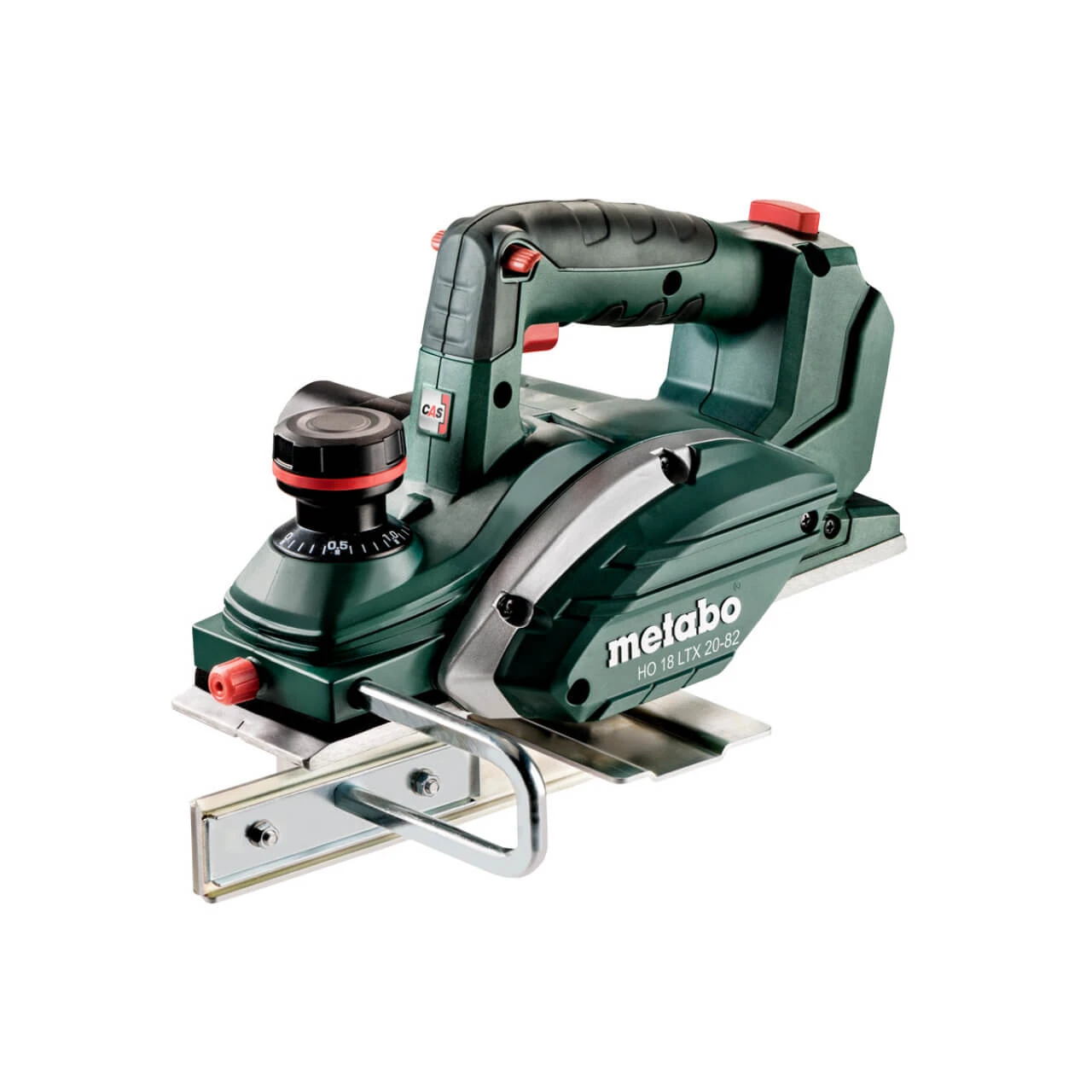

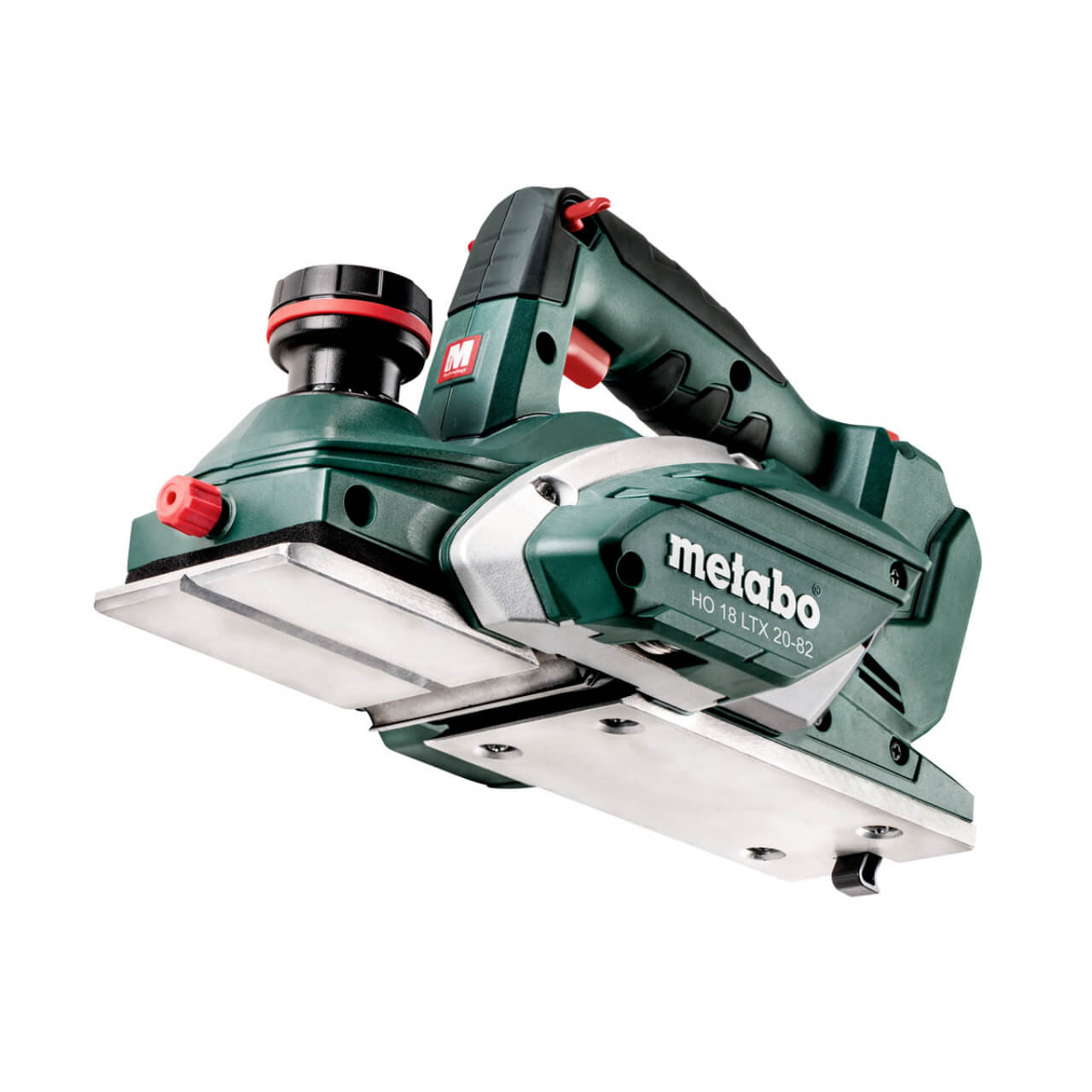

- Light, compact cordless planer for planing, rebating and chamfering
- Adjustable planer depth and notch depth
- Aluminium die cast and milled cut planer base with V-groove for easy chamfering
- Parallel guide for precise guiding of the planer
- Grip area with non-slip soft-grip surface

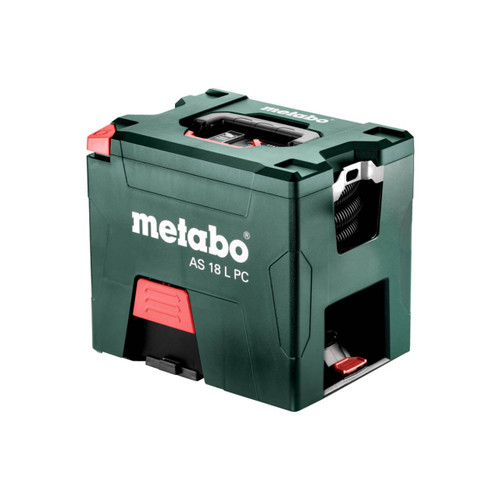

- Extraction possibility by means of connecting an all-purpose vacuum cleaner
- Angled chip ejection adapter for controlled ejection of the wood shavings
- Easy to empty textile dust bag for working without extraction facilities
- Strap on the planer base for stopping the machine and to protect the work piece
- Easy blade change of the robust reversible carbide planer blades
- Soft start and overload protection for long service life of motor and drive
- Can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-system.com
SPECIFICATIONS:
Characteristics:
- Type of battery pack: Li-Power
- Battery voltage: 18 V
- Planing width: 82 mm
- Adjustable planing depth: 0 - 2 mm
- Maximum notch depth: 9 mm
- No-load speed: 16000 rpm
- Length of planer base: 295 mm
- Weight without battery pack: 2.9 kg / 6.4 lbs
- Weight with battery pack: 3.3 kg / 7.3 lbs
Vibration:
- Planing soft wood: 1.6 m/s²
- Uncertainty of measurement K: 1.5 m/s²
Noise emission:
- Sound pressure level: 90 dB(A)
- Sound power level (LwA): 101 dB(A)
- Uncertainty of measurement K: 3 dB(A)
SCOPE OF DELIVERY:
- Reversible carbide planer blades
- Parallel Guide
- Depth gauge
- Chip ejection adapter
- Textile dust bags
- without battery pack, without charger
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
