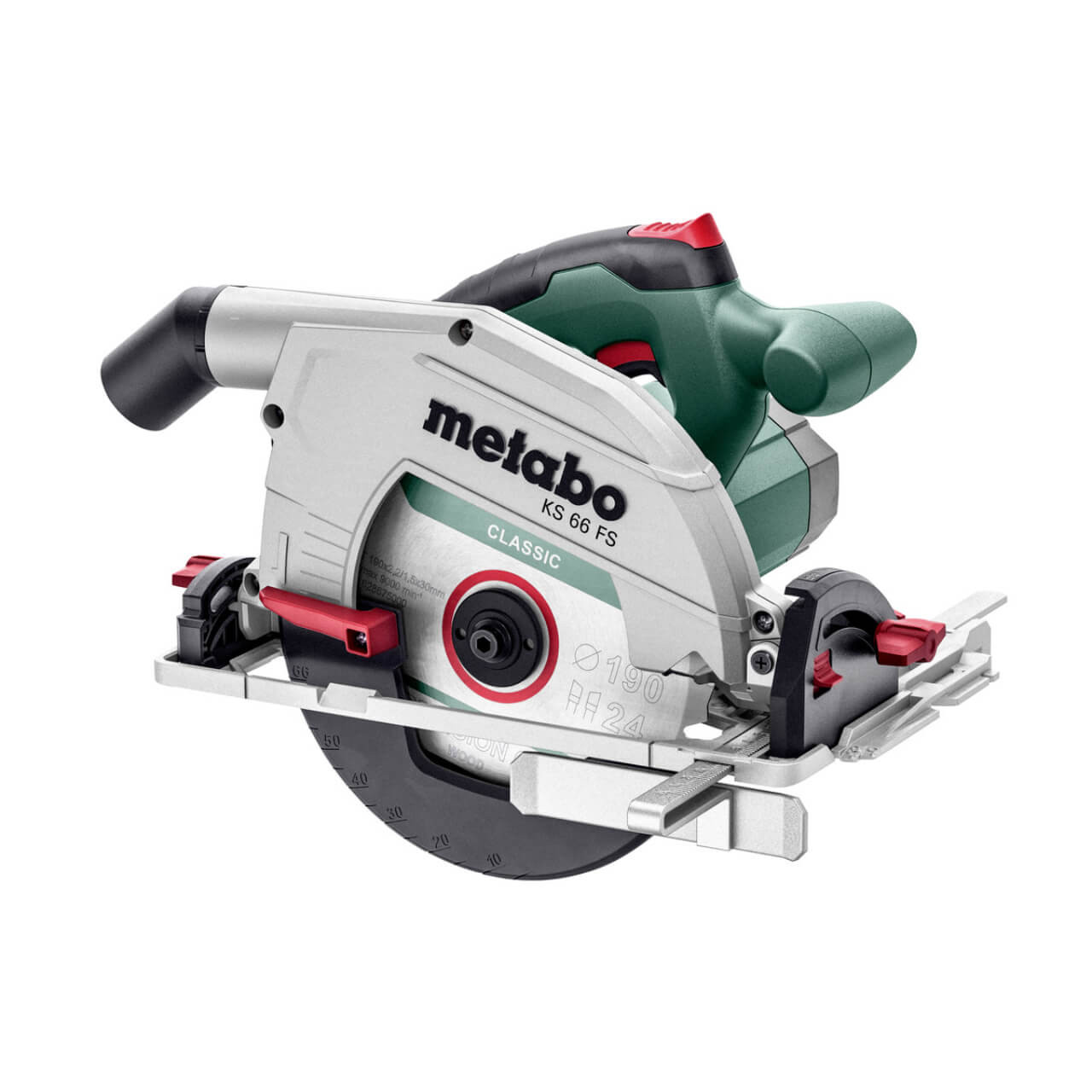

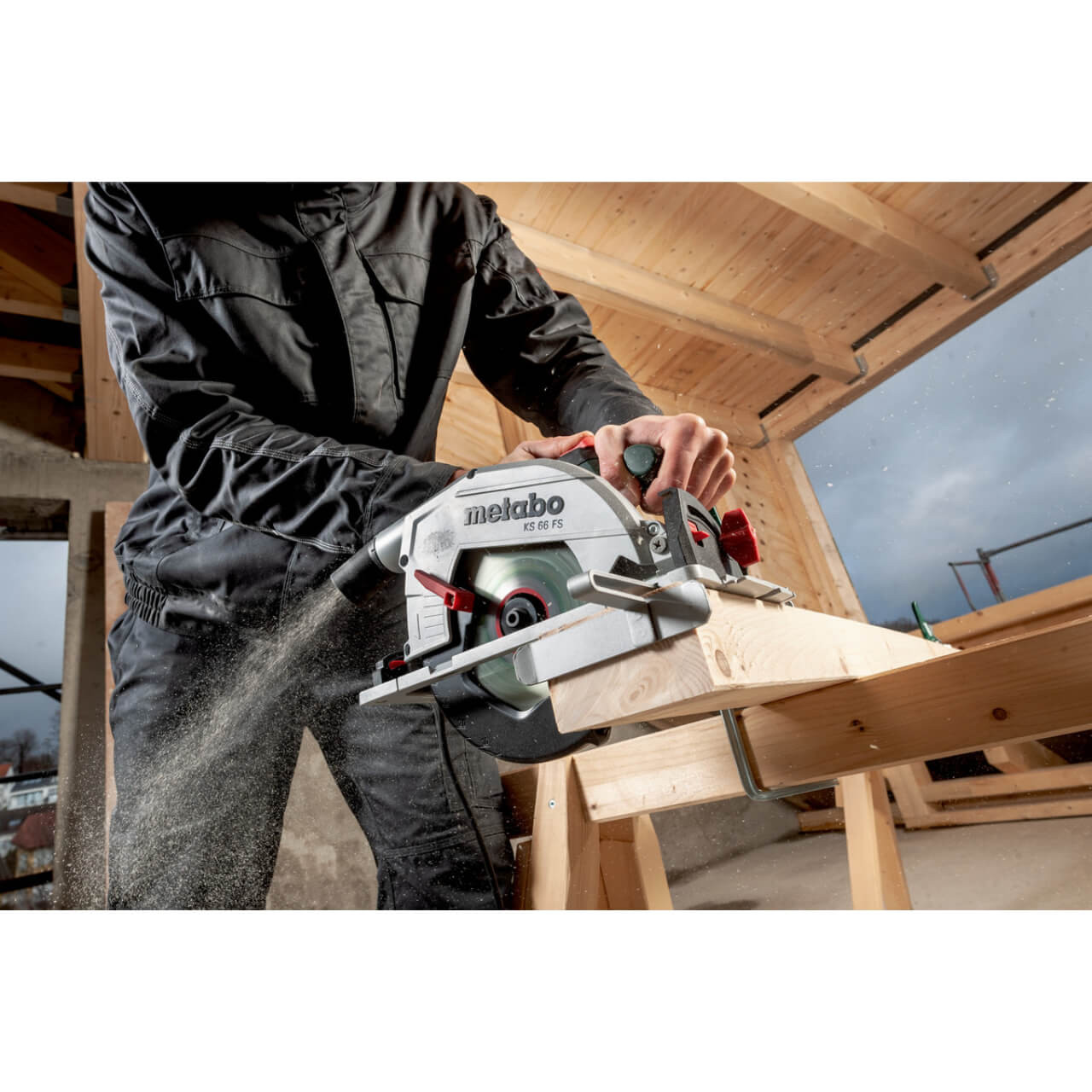

FEATURES:

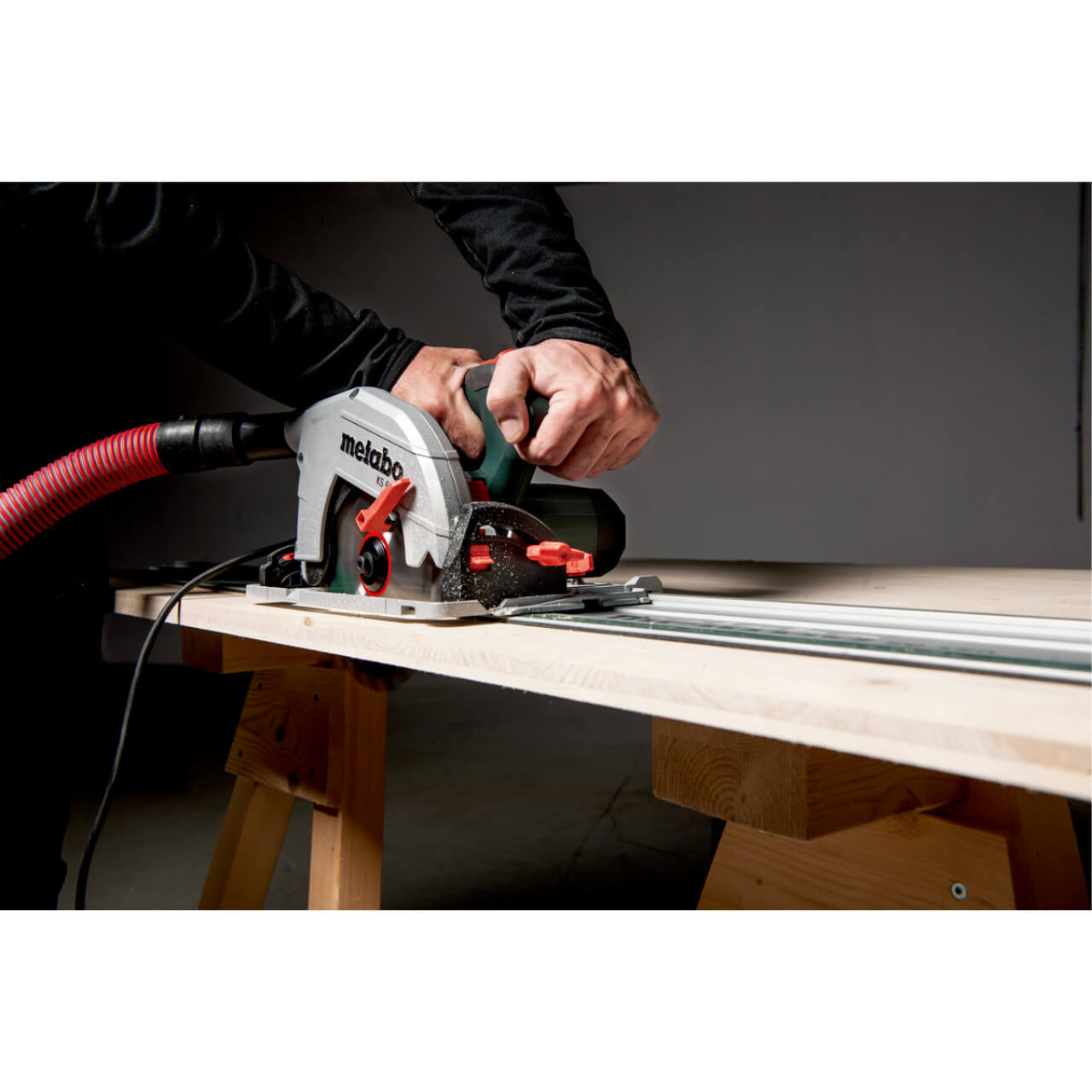

- Robust circular saw can be used directly on guide rails from Metabo and other manufacturers for precise, long cuts
- Fast, precise cross cuts thanks to easy coupling with a Metabo cross cutting rail
- Light guide plate made from die cast aluminium
- Grip area with non-slip soft-grip surface
- Clearly visible cutting indicator for precise sawing after initial cut
- 0° position re-adjustable for highest cutting precision
- Extraction possibility by means of connecting an all-purpose vacuum cleaner
- Controllable chip ejection by means of rotating extraction nozzle
- Precision guide rail available as accessory
SPECIFICATIONS:
Characteristics:
- Rated input power: 1500 W
- Output power: 840 W
- Maximum cutting depth at 90°: 66 mm / 2 5/8 "
- Maximum cutting depth at 45°: 47 mm / 1 7/8 "
- Max. cutting depth with guide rail: 61 mm / 2 13/32 "
- Saw blade Ø x bore: 190 x 30 mm // 7 1/2 x 1 3/16 "
- Swivel range from / to:?: 0 / + 47 °
- No-load speed: 5000 rpm
- Revolutions at rated load: 3800 rpm
- Max. cutting speed: 50 m/s
- Weight (without power cable): 4.9 kg / 10.8 lbs
- Cable length: 4 m / 13 ft
Noise emission:
- Sound pressure level: 95 dB(A)
- Sound power level (LwA): 106 dB(A)
- Uncertainty of measurement K: 3 dB(A)
SCOPE OF DELIVERY:
- Carbide circular saw blade (24 teeth)
- Parallel guide
- Hexagonal wrench
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
