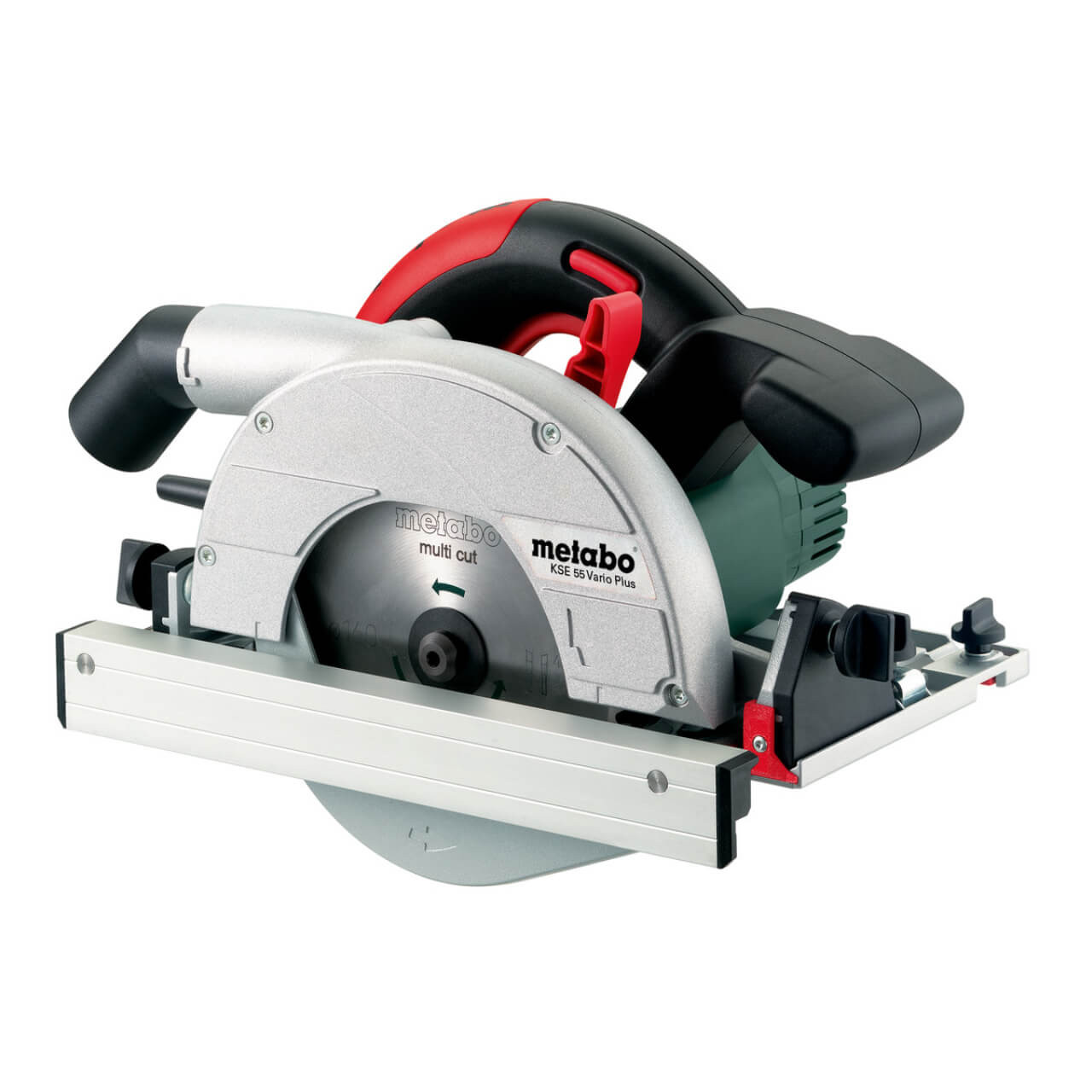

- Combined plunge cut circular saw – two high-quality functions in one machine
- Metabo S-automatic torque limiting clutch: mechanical decoupling of the drive for safe working should the saw blade stop unexpectedly.
- Convenient saw blade change due to simultaneous pendulum saw guard and saw blade stop
- Particularly light due to magnesium die-cast saw housing and guide plate
- Grip area with non-slip soft-grip surface
- Sawing close to wall possible
- Precise, double-track aluminium parallel guide makes cutting to size easier
- Clearly visible cutting indicator for precise sawing after initial cut
- 0° position re-adjustable for highest cutting precision
- Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
- Overload protection: protects the motor from overheating
- Extraction possibility by means of connecting an all-purpose vacuum cleaner
- Controllable chip ejection by means of rotating extraction nozzle
- Auto-stop carbon brushes to protect the motor
- Adjustment of machine without tools for using with the precision guide rail
SPECIFICATIONS:
Characteristics:
- Rated input power: 1200 W
- Output power: 700 W
- Maximum cutting depth at 90°: 55 mm / 2 5/32 "
- Maximum cutting depth at 45°: 40 mm / 1 9/16 "
- Saw blade Ø x bore: 160 x 20 mm // 6 1/4 x 0.787 "
- Swivel range from / to:: ? 0 / + 45 °
- No-load speed: 2000 - 5200 rpm
- Revolutions at rated load: 5200 rpm
- Max. cutting speed: 44 m/s / 144 ft/s m/s
- Torque: 5 Nm / 44 in-lbs
- Weight (without power cable): 3.7 kg / 8.2 lbs
- Cable length: 4 m / 13 ft
Vibration:
- Sawing chipboards: 2.5 m/s²
- Uncertainty of measurement K: 1.5 m/s²
Noise emission:
- Sound pressure level: 94 dB(A)
- Sound power level (LwA): 105 dB(A)
- Uncertainty of measurement K: 3 dB(A)
SCOPE OF DELIVERY:
- Carbidecircular saw blade (42 teeth)
- Parallel guide
- Extraction connector
- Hexagonal wrench
- MetaLoc case
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
