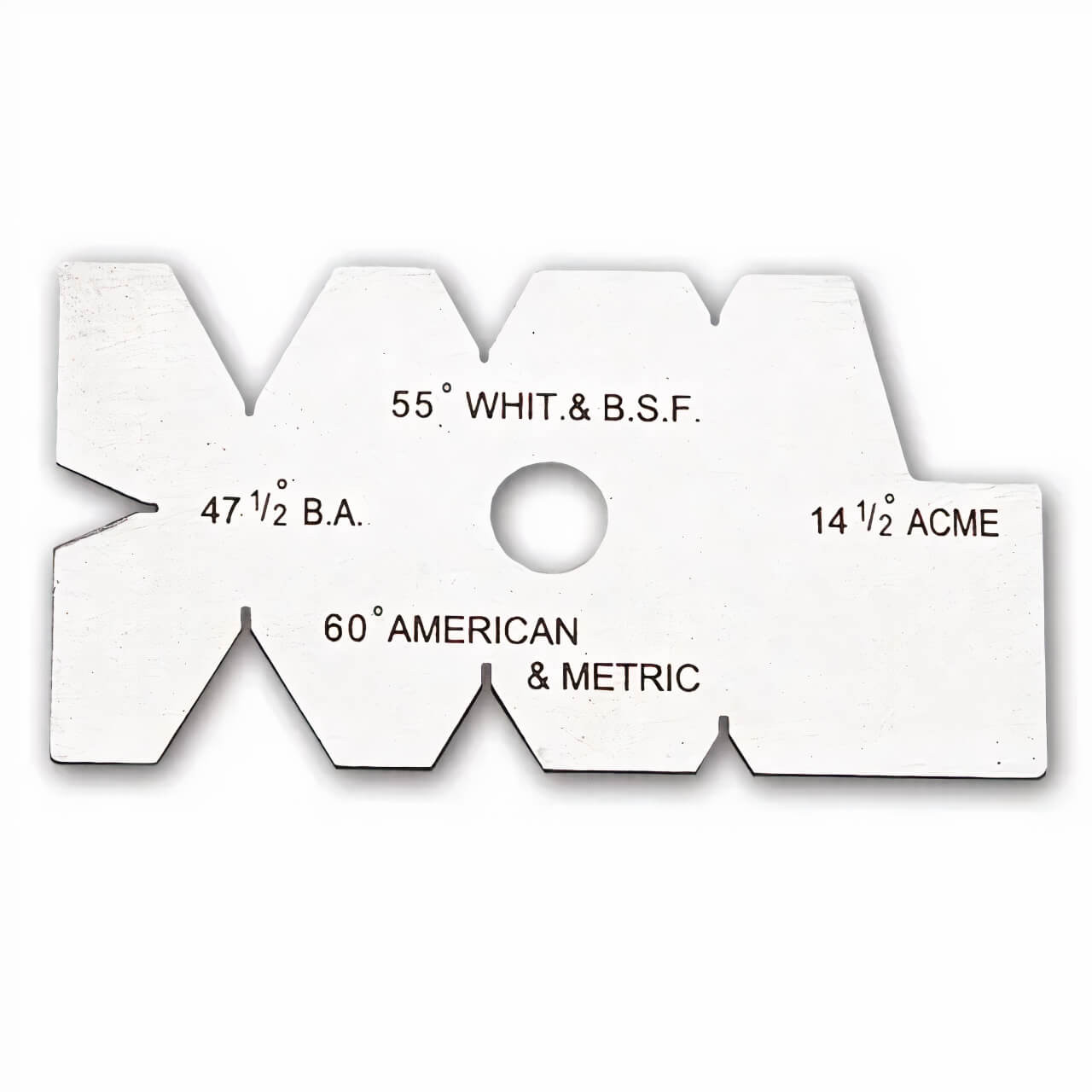

Manufactured from hardened and polished stainless steel, all gauge surfaces are accurately ground.
It is most useful for checking tool angle while cutting threads in metal turning lathes. The angle on the thread cutting tool is checked on the V slots in the gauge.
Relief at the end of each slot enables proper seating of the cutting tool in the slot thus ensuring correct angle.
The gauge clearly indicates 55° for Whitworth and BSF Threads; 47-1/2° for BA Threads, 60° for Metric and American National Threads and 14-1/2° for Acme threads.
It is most useful for checking tool angle while cutting threads in metal turning lathes. The angle on the thread cutting tool is checked on the V slots in the gauge.
Relief at the end of each slot enables proper seating of the cutting tool in the slot thus ensuring correct angle.
The gauge clearly indicates 55° for Whitworth and BSF Threads; 47-1/2° for BA Threads, 60° for Metric and American National Threads and 14-1/2° for Acme threads.
| Minimum Sale Qty: | 1 |
Custom Field
Brand Groz
Inner Qty 1
Estimated Lead Time 3-5 days
On Sale Item false
Cross Reference GZ-01223
Wire Item false
Price Always false
Sales Unit EA
ns_id 53518
item_type _inventoryItem
Shipping Class NON DG
Minimum Sale Qty 1
