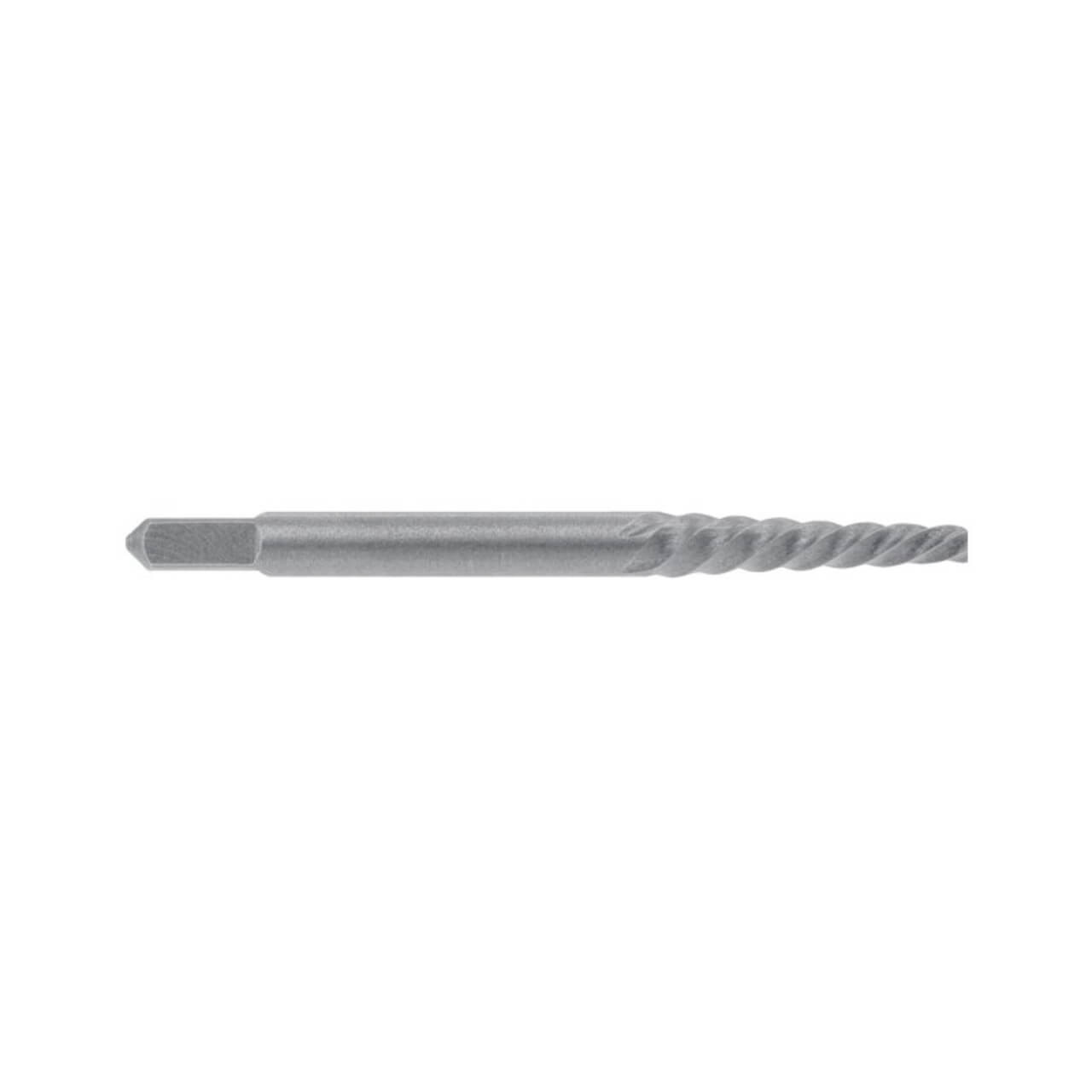

- Reverse Tapered Cutting Screw Thread
- Square Head for use with Tapping Handles
- 6 Common sizes available
Technical data:
- Suits pilot drill: 3.0mm, 7/64″
- Suits bold thread diameter: 5.5-6.5mm, 7/32-1/4″
Directions for use:
-
If possible, grind or flatten the head of the damaged bolt or screw.
-
With a heavy hammer and centre punch, mark the centre of the bolt or screw; this will prevent the pilot drill wandering.
-
The extractor requires a pilot hole, start with a small Alpha left handed drill bit (e.g. 5/64’’).
-
If required, drill the hole out larger. It is best to use a left-hand drill for this step, as this may be enough to remove the stud without a screw extractor.
-
Select the correct size screw extractor for the hole, see table above.
-
With a tap wrench, turn the screw extractor into the hole in an anti-clockwise direction. The reversethreads force the extractor into the hole until the broken bolt or stud is forced to turn. Continue turning until the stud is removed.
