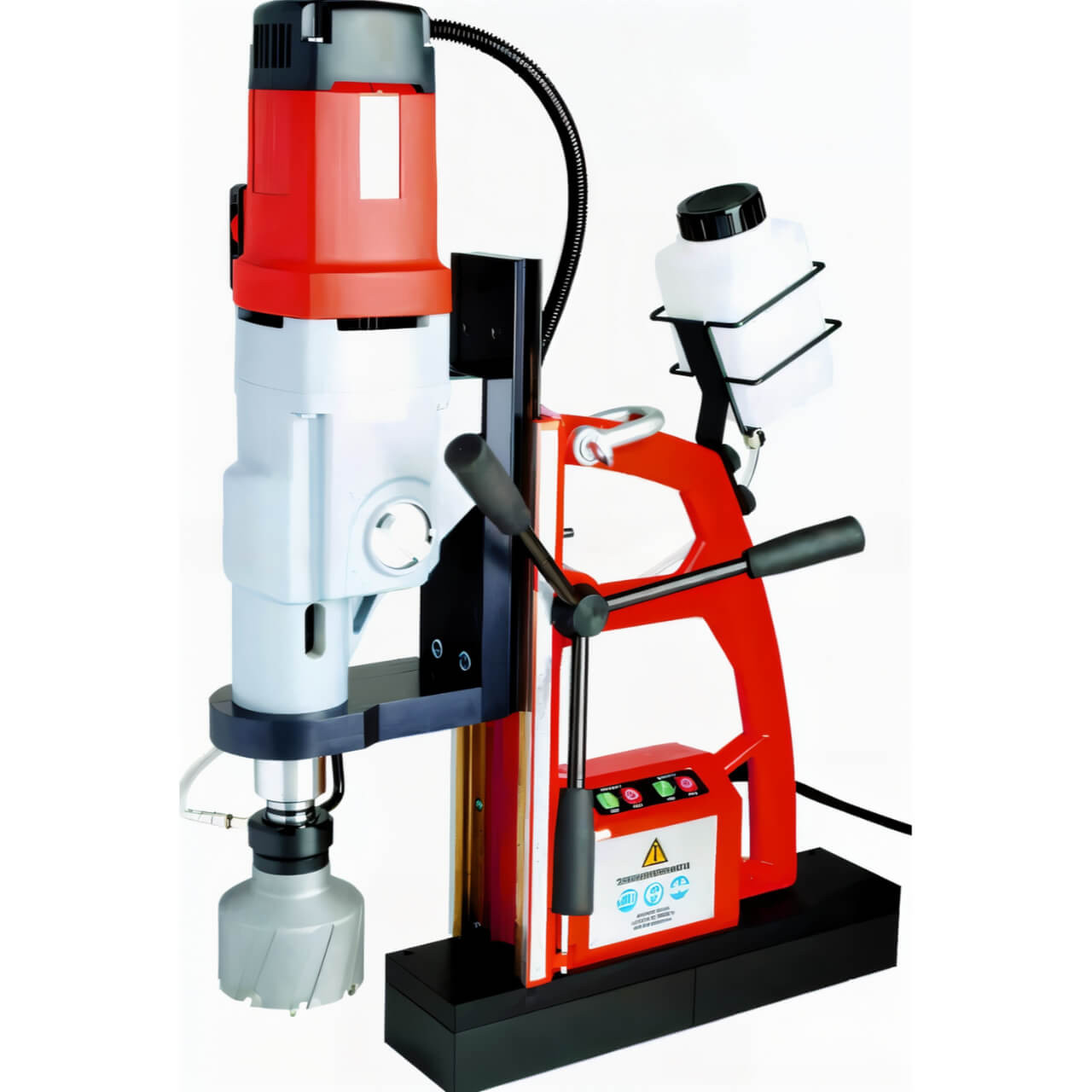

The EM150 is the beast of drills. It has a massive 150mm drilling capacity, a variable 4-speed gearbox for any hole size, and a powerful 6-coil magnet for maximum stability. Built with a Morse Taper 4 spindle and a tough ergonomic touch pad, it's ready for the toughest jobs.
FEATURES:
- 4 speed variable oil bath gearbox
- 6 coil 32,000N magnet
- Durable touch pad for ergonomic use
- Tapping capacity up to M42
- Morse Taper 4 spindle
SPECIFICATIONS:
- Core Drill Dimensions: 12.0-130.0mm/20.0-50.0mm (extra long 110mm)
- Cutting Depth: 50.0mm/110.0mm
- Twist Drill: Up to 45.0mm with MT4 DIN 345 direct
- Counter-Boring: 10.0-80.0mm
- Tapping: With Tapping Attachment: Up to M42
- Arbors: MT4
- Stroke: 230mm
- Height Adjustment: 100mm
- 4-Speed Gearbox
1. Step 50-150rpm
2. Step 75-239rpm
3. Step 100-310rpm
4. Step 160-490rpm
- Power Consumption: 2,500W (230V)
- Voltage: 230V50/60Hz
- Tool Force (10mm)/Magnetic Adhesion Strength: 5,000N/33,000N
- Magnetic Base: 92×400mm
- Weight: 34.0Kg
| Minimum Sale Qty: | 1 |
| In Stock: | No |
