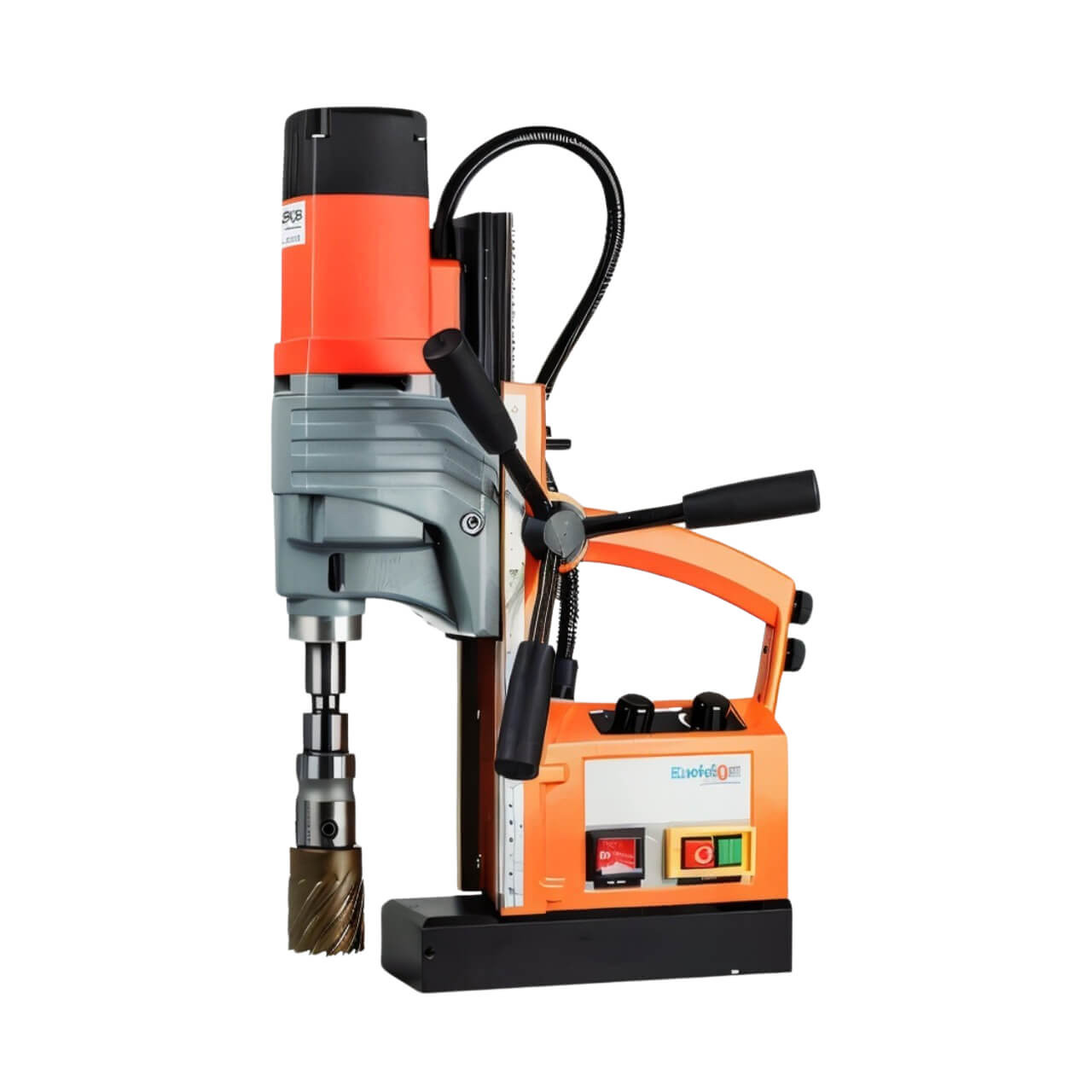

The EM80 RL-E is built big and tough. It features a forward-reversible gearbox for tapping, a variable 4-speed gearbox for precise drilling, and a Morse Taper 3 spindle for versatility. With a 30mm tapping capacity and solid brass guides, it's ready for the heaviest jobs.
FEATURES:
- 4 speed variable oil bath gearbox
- Forward-reversible drive, ideal for tapping
- Solid brass guides with spring loading for rigid gliding and no vibration
- Tapping capacity up to M30
- Morse Taper 3 spindle
SPECIFICATIONS:
- Core Drill Dimensions: 50.0-110.0mm
- Cutting Depth: 50.0mm/110.0mm
- Twist Drill: 1.0-16.0mm with drill chuck up to 32.0mm with MT3 DIN
- Counter-Boring: 10.0-55.0mm
- Tapping: Tapping Chucks: Up to M30 with Tapping Attachment: Up to M30
- Arbors: MT3
- Stroke: 190mm
- Height Adjustment: 60mm
- 4-Speed Gearbox
1. Step 50-110rpm
2. Step 75-175rpm
3. Step 105-245rpm
4. Step 165-385rpm
- Power Consumption: 1,800W
- Voltage: 230V 50/60Hz
- Tool Force (10mm)/Magnetic Adhesion Strength: 4,000N/20,000N
- Magnetic Base: 92×238mm, 30° adjustable right and left, 10mm front and back
- Weight: 22.0Kg
