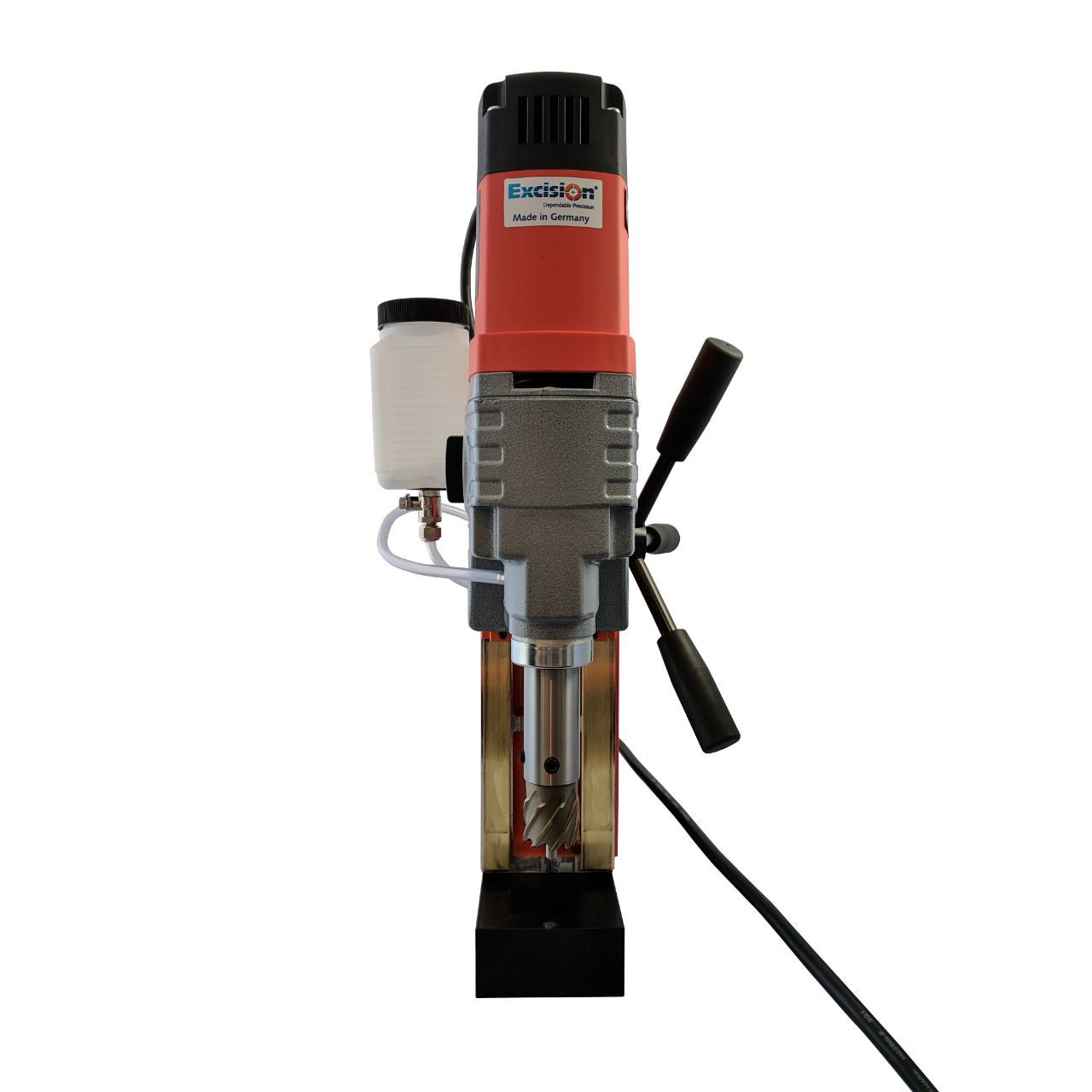

The New & Updated EM50 is a true 2-speed workhorse. Its powerful gearbox easily handles different hole diameters, while the double-dove-tailed design provides extra height for keyless chucks. A Weldon shank makes it compatible with both core and twist drills. With solid brass guides for smooth, vibration-free operation and 12,000N magnetic adhesion, the EM50 is built for tough, industrial jobs.
FEATURES:
- Solid brass guides with spring loading for rigid gliding and no vibration
- Durable switches for long lasting use
- Direct Weldon arbor type spindle for use with all 19mm shank core drills
- Height adjustable slide enables an increased range of applications including standard twist drills
- 2 coil 12,000N magnetic adhesion for industrial use
SPECIFICATIONS:
- Core Drill Dimensions: 12.0-50.0mm
- Cutting Depth: 50.omm
- Twist Drill: 1.0-16.0mm with quick-release chuck
- Counter-Boring: 10.0-40.0mm
- Tapping: With tapping attachment: Up to M3-M20
- Arbors: 19mm Weldon
- Stroke: 190mm
- Height Adjustment: 100mm
- 2-Speed Gearbox: 1. Step 250rpm
: 2. Step 450rpm
- Power Consumption: 1,500W
- Voltage: 230V 50/60Hz
- Tool Force (10mm)/Magnetic Adhesion Strength: 3,500N/12,000N
- Magnetic Base: 92×220mm
- Weight: 15.0Kg
