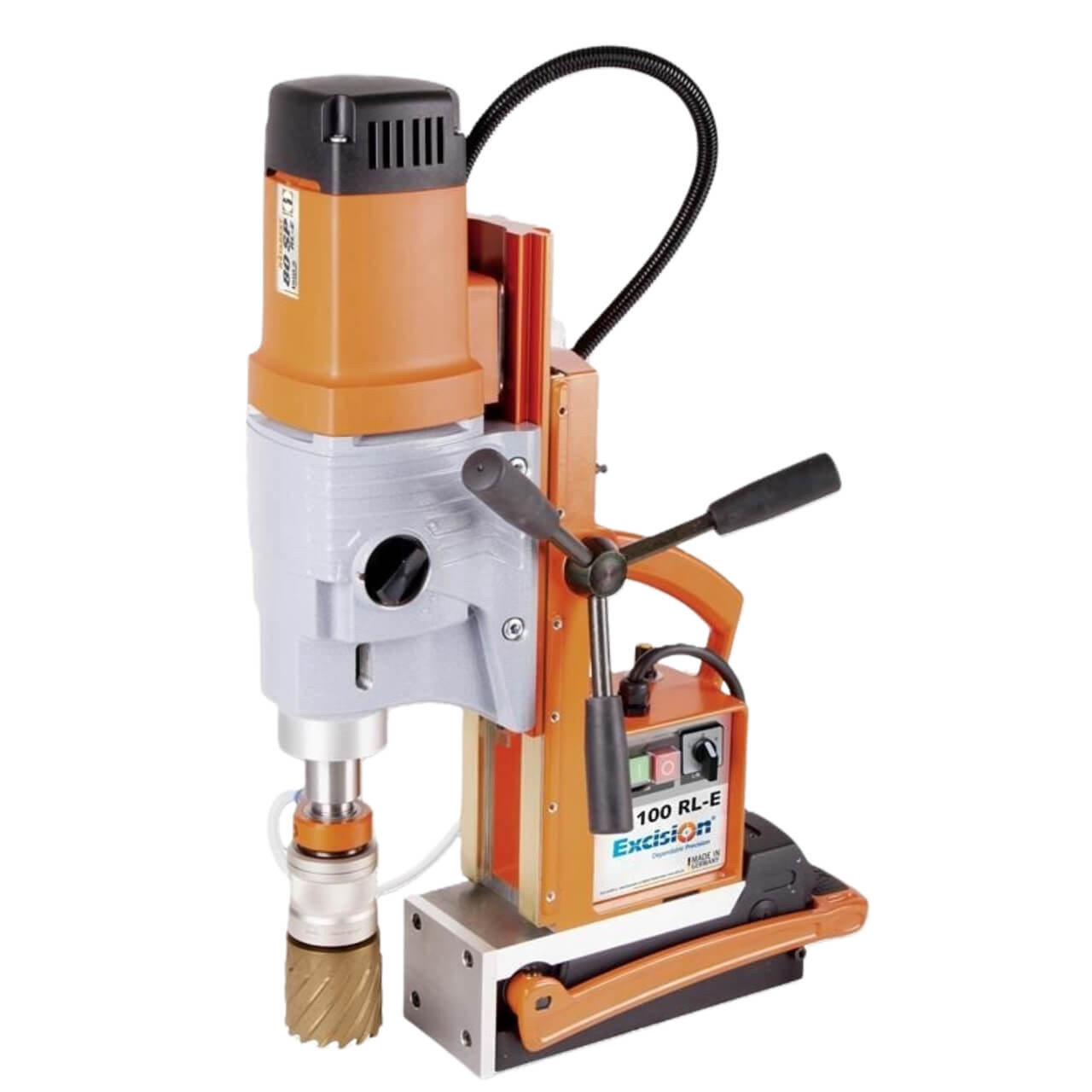

Magnex 100 RL-E packs big capabilities in a compact package. Its Magnex magnet doesn’t need a power supply, and the forward-reversible gearbox makes tapping a breeze. With a variable 4-speed gearbox and Morse Taper 3 spindle, it's built for precision and versatility.
FEATURES:
- Powerful permanent magnet - doesn't need a power supply
- 4 speed variable oil bath gearbox
- Forward-reversible drive, ideal for tapping
- Solid brass guides with spring loading for rigid gliding and no vibration
- Morse Taper 3 spindle
SPECIFICATIONS:
- Core Drill Dimensions: 12.0-100.0mm
- Cutting Depth: 110.0mm
- Twist Drill: 1.0-16.0mm with drill chuck up to 32.0mm with MT3 DIN 345
- Counter-Boring: 10.0-55.0mm
- Tapping: With Tapping Chucks: Up to M30. With Tapping Attachment: Up to M30
- Arbors: MT3
- Stroke: 190mm
- Height Adjustment: 60mm
- 4-Speed Gearbox
Right/Left
1. Step 50-110rpm
2. Step 75-175rpm
3. Step 105-245rpm
4. Step 165-385rpm
- Power Consumption: 1,800W
- Voltage: 230V 50/60Hz
- Tool Force (10mm)/Magnetic Adhesion Strength: 2,500N
- Magnetic Base: 94×255mm
- Weight: 22.6Kg
