Industrial compressed air systems need to operate with clean and dry air to prevent damage to pneumatic plant, equipment and processes. The air discharged from a compressor contains excessive levels of water, particulate matter and oil that must be treated before the air can be
used. For example, a 100 cfm (2.83 m3 /min) compressor operating for 8 hours in ambient conditions of 25°C temperature and 70% relative humidity will cause about 20 litres of moisture to condense downstream inside the compressed air system.

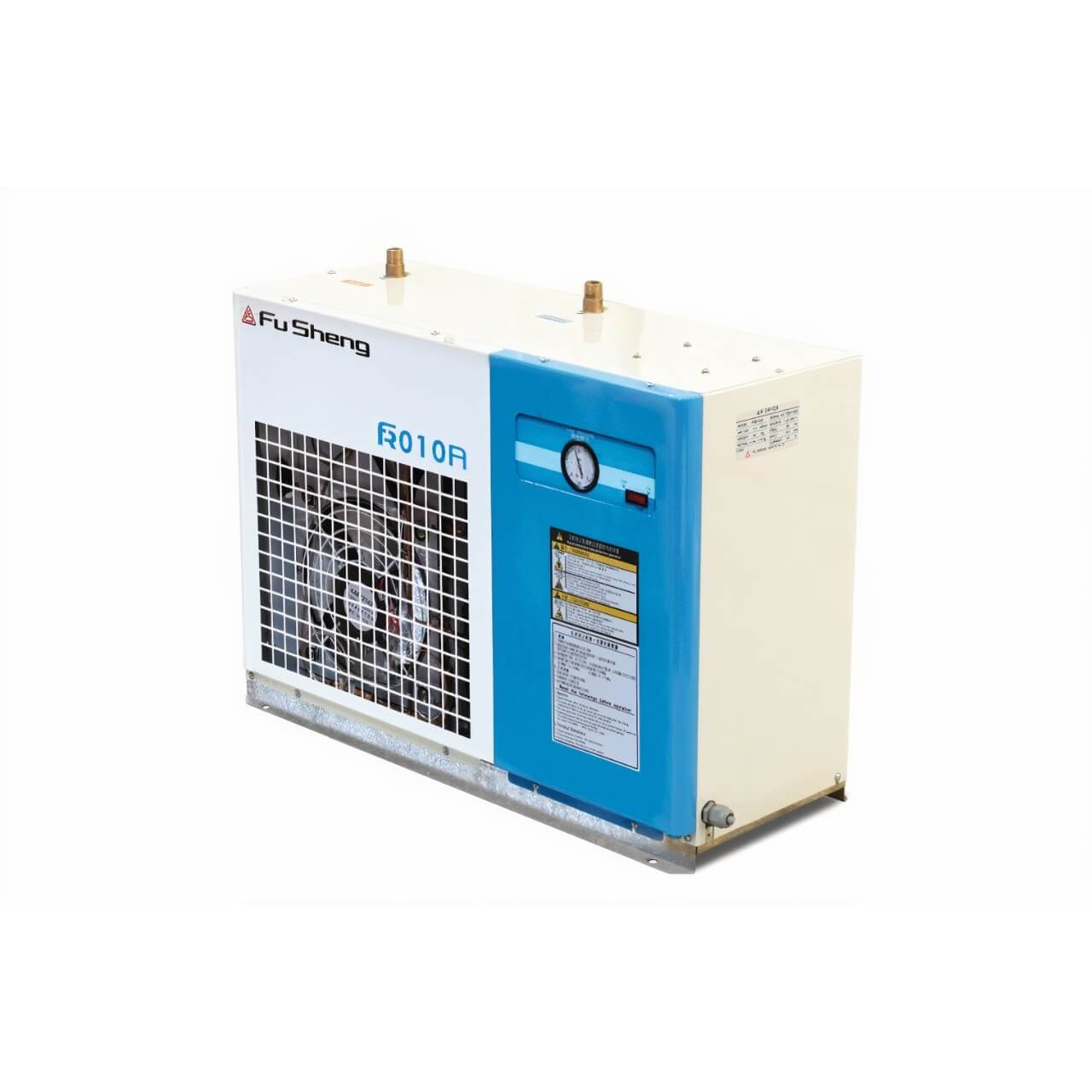

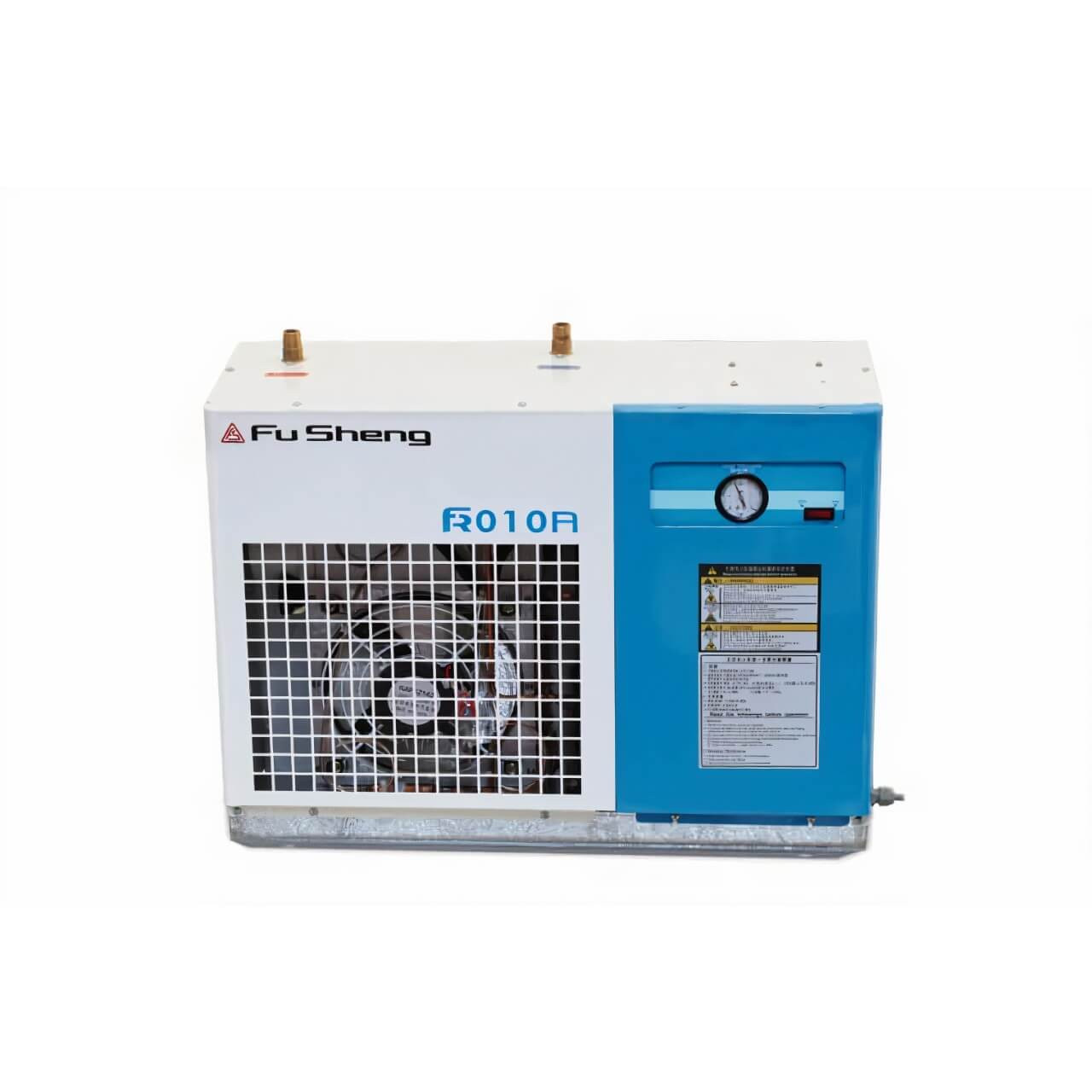

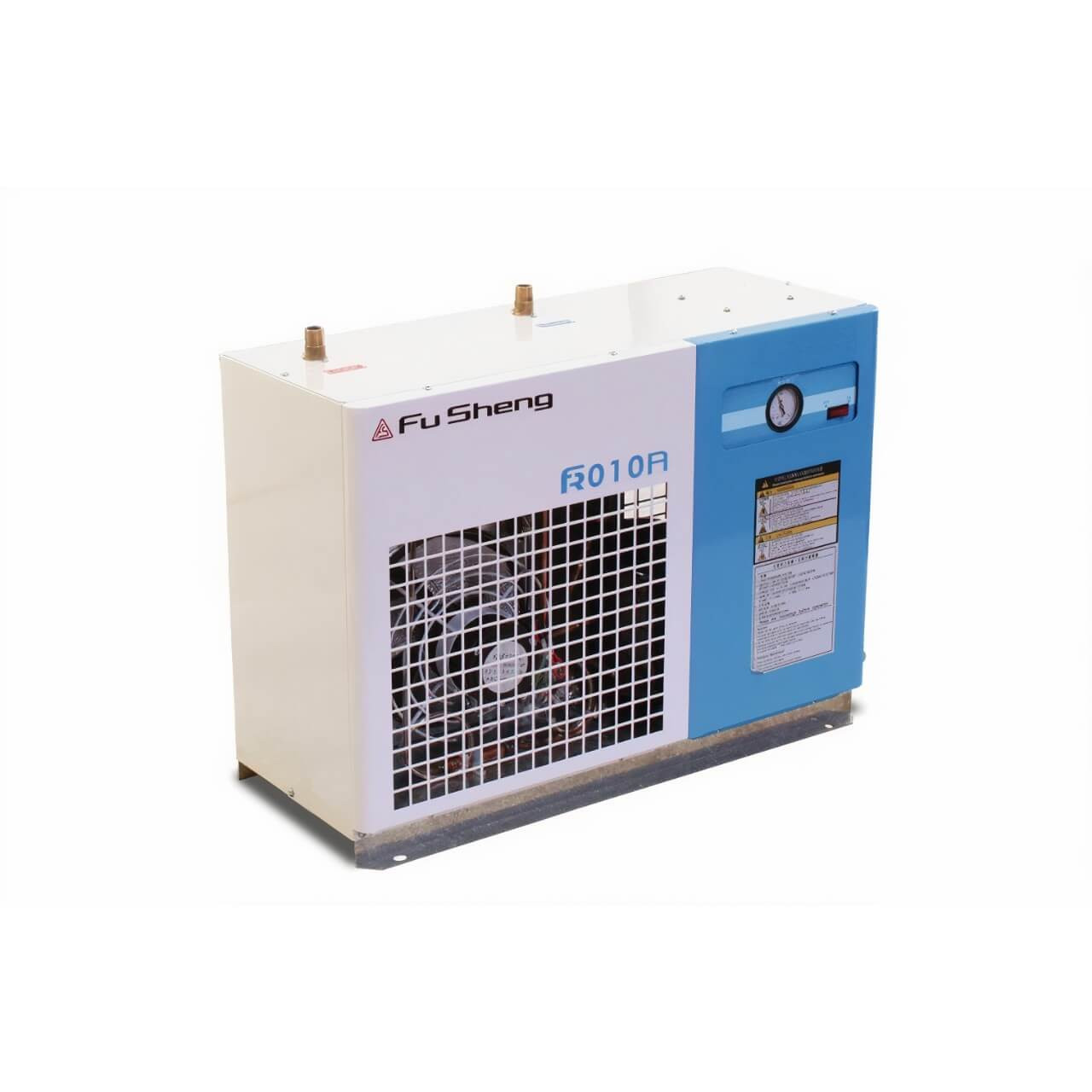

For most industrial applications, the best way of drying compressed air is to use a refrigerant-type dryer in which the incoming air is cooled to condense the moisture out. The cold dried air is then used to pre-cool the incoming air by means of a heat exchanger for optimal energy efficiency. The Fusheng FR Series is a premium quality range of high efficiency refrigerant dryers offering superb moisture removal performance with maximum reliability. They are available for purchase separately to upgrade an existing compressed air system or can be included as part of an entire Fusheng compressed air system package.
Unique Features
• Performance rated for the Australian climate
• High efficiency stainless steel heat exchanger
• Unobstructed low pressure loss air flow path
• Fan-forced air cooled refrigerant condenser
• Auto condensate drain with isolation valve
• Industrial grade R134a or R407C refrigerant
• Standard 240 Volt plug and play connection
• Corrosion resistant chassis and enclosure
• Auto capacity control and protection functions
• Manufactured to ISO 9001 quality standards
Airflow Capacity 1.2 m³/min (42.4 cfm)
Rated Air Pressure 700 kPa (102 psi)
Maximum Pressure 1,000 kPa (145 psi)
Inlet Air Temp. 35°C Nom. / 50°C
Max.Ambient Temp. 32°C Nom. / 40°C
Max.Dew Point 3°C Nom. / 10°C
Max.Inlet & Outlet Size 3/4 inch BSP
Electricity Supply 240 Volts, 10 Amps
used. For example, a 100 cfm (2.83 m3 /min) compressor operating for 8 hours in ambient conditions of 25°C temperature and 70% relative humidity will cause about 20 litres of moisture to condense downstream inside the compressed air system.
For most industrial applications, the best way of drying compressed air is to use a refrigerant-type dryer in which the incoming air is cooled to condense the moisture out. The cold dried air is then used to pre-cool the incoming air by means of a heat exchanger for optimal energy efficiency. The Fusheng FR Series is a premium quality range of high efficiency refrigerant dryers offering superb moisture removal performance with maximum reliability. They are available for purchase separately to upgrade an existing compressed air system or can be included as part of an entire Fusheng compressed air system package.
Unique Features
• Performance rated for the Australian climate
• High efficiency stainless steel heat exchanger
• Unobstructed low pressure loss air flow path
• Fan-forced air cooled refrigerant condenser
• Auto condensate drain with isolation valve
• Industrial grade R134a or R407C refrigerant
• Standard 240 Volt plug and play connection
• Corrosion resistant chassis and enclosure
• Auto capacity control and protection functions
• Manufactured to ISO 9001 quality standards
Airflow Capacity 1.2 m³/min (42.4 cfm)
Rated Air Pressure 700 kPa (102 psi)
Maximum Pressure 1,000 kPa (145 psi)
Inlet Air Temp. 35°C Nom. / 50°C
Max.Ambient Temp. 32°C Nom. / 40°C
Max.Dew Point 3°C Nom. / 10°C
Max.Inlet & Outlet Size 3/4 inch BSP
Electricity Supply 240 Volts, 10 Amps
