FEATURES:

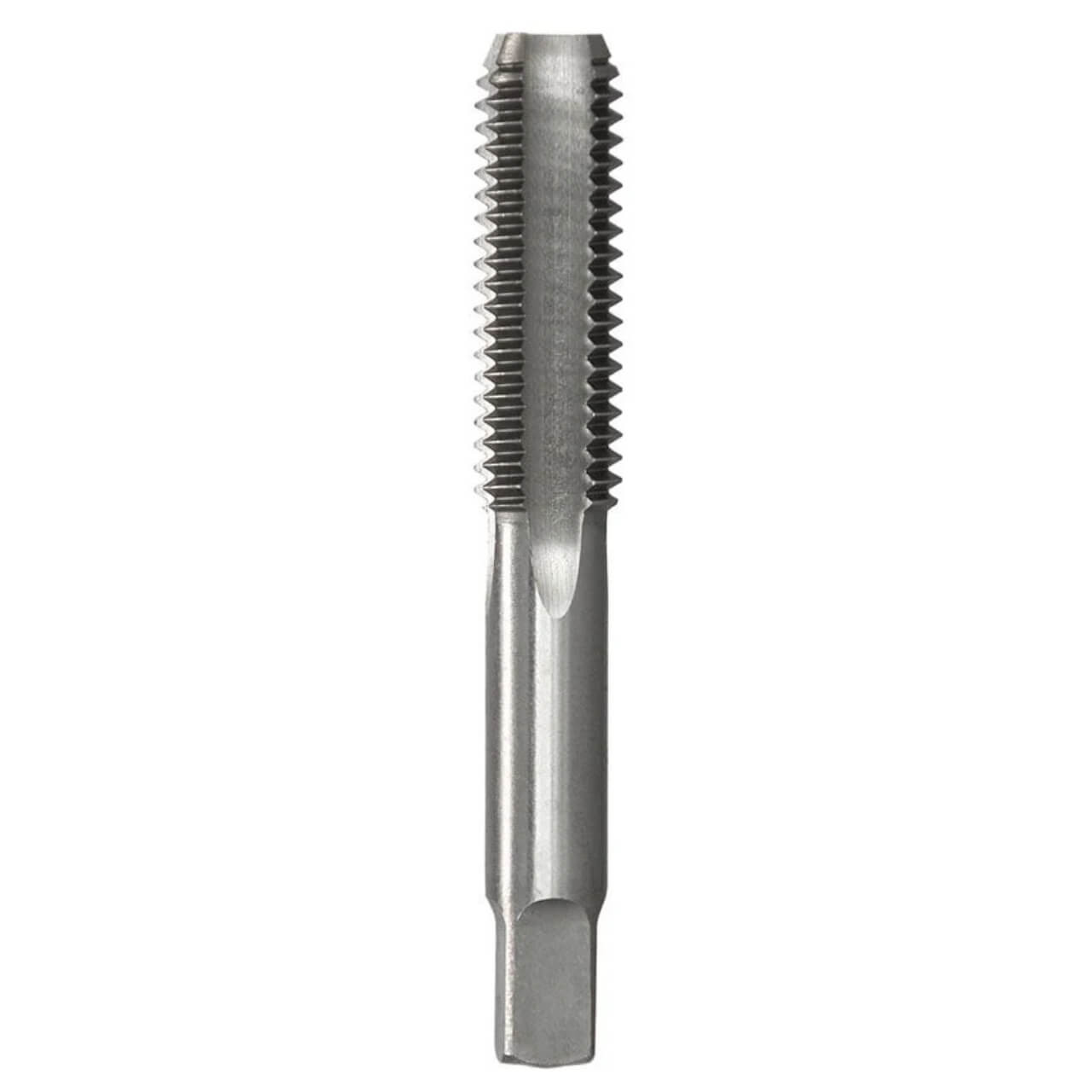

- 1/8 BSPT (Rc Series Pipe Taper) Chrome Alloy Tap - Bottoming
- Chrome Alloy Metric Coarse Bottoming Hand Tap
- Used as thread chasers to clean an existing thread
- They can also be used to create a new female thread in non-ferrous metals and plastics
- Chrome alloy taps are not suitable for creating precision, safety or critical threads
- Metric Coarse angle of thread is 60 degrees
- The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well
- Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength
- The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres)
- Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole
- Bottoming Taps are typically preceded bythe use of a Taper or Intermediate Tap
SPECIFICATIONS:
- Brand: Bordo
- Pack Qty: 1
- Diameter (inch): 1/8
- Drill Diameter (mm): 8.4
- Lead: Bottoming
- Overall Length (mm): 54
- Pitch (mm): 28
- Thread Form: BSPT
| Inner Qty: | 1 |
