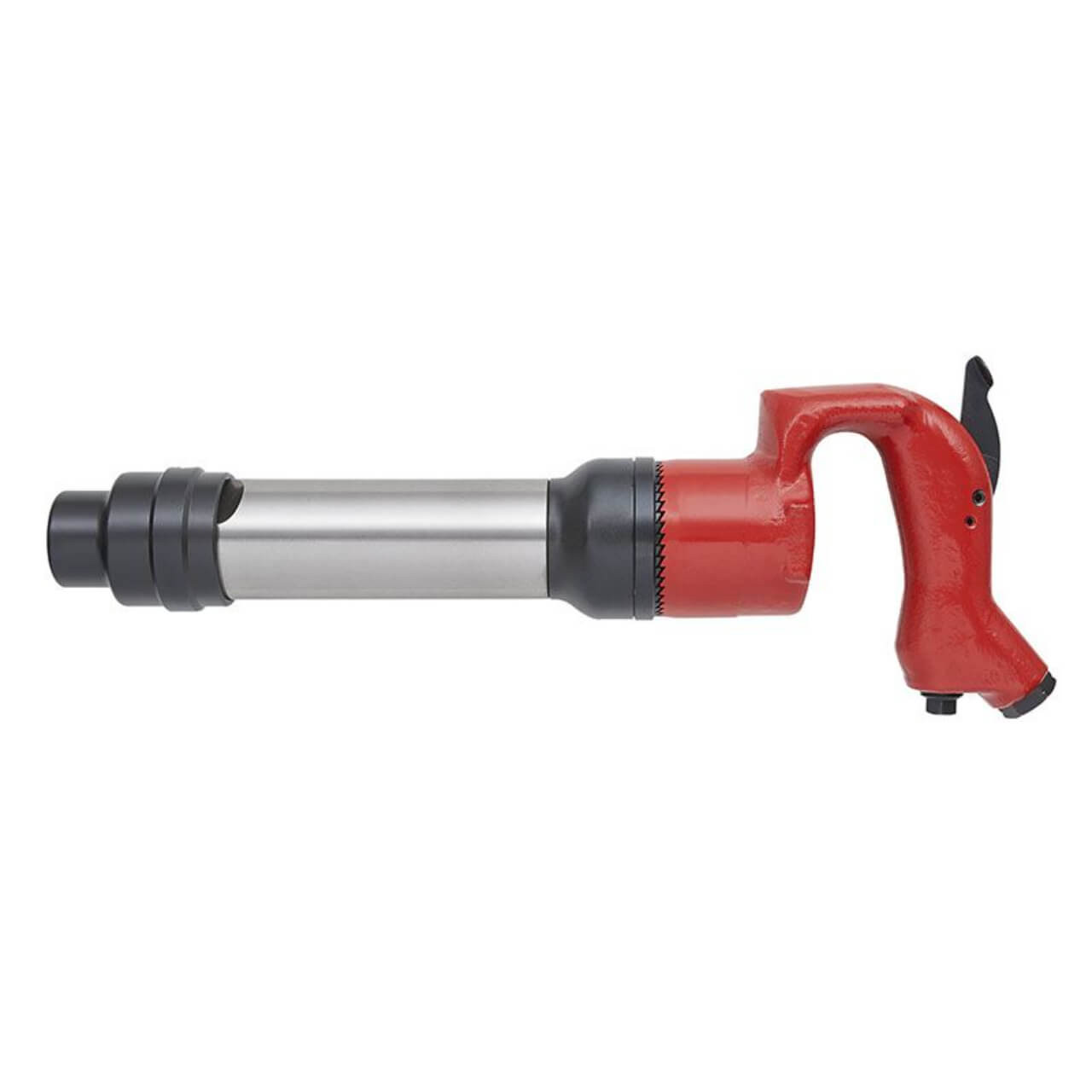

The CP9363 chipping hammer is built for the toughest industrial applications. The CP9363 chipping hammer delivers maximum power in a compact and robust industrial design. It features a robust and ergonomic gooseneck handle, as well as a rotative exhaust deflector on a heat treated durable cylinder for maximal durability.
SPECIFICATIONS:
- Bore diameter: 29 mm
- Length (L): 470 mm
- Stroke: 102 mm
- Air consumption at load: 15 l/s
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 115.1 dB(A)
- Sound Pressure: 1041 dB(A)
- Uncertainty vibration-K: 3.3 m/s²
- Vibration: 16.2 m/s²
- Blow per minute: 1600
- Chisel shank: Hex
- Chisel shank diameter (in): 0.580
- Chisel shank diameter (mm): 14.7
- Starting system: Trigger
