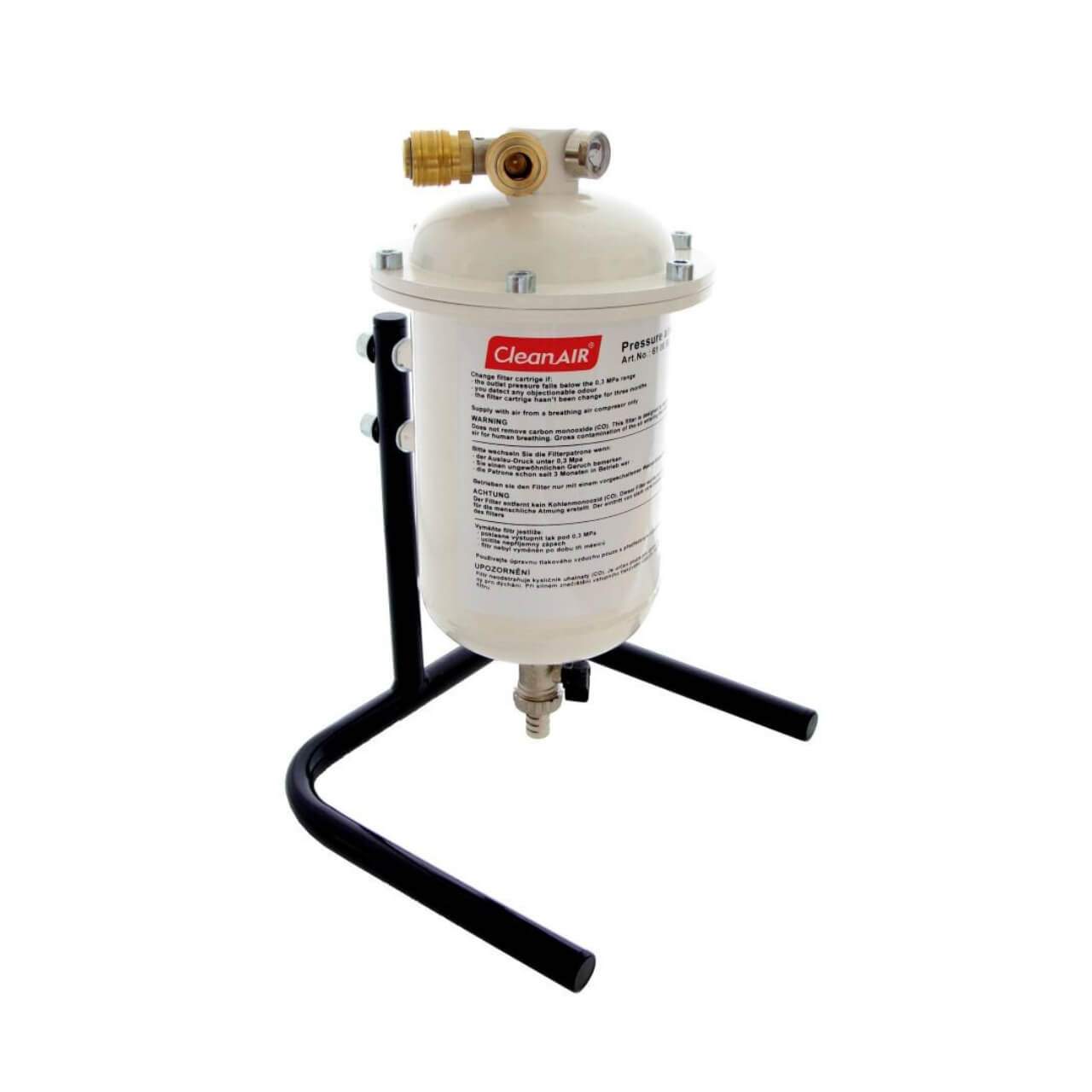

CleanAIR® Pressure Conditioner contains the high capacity combined filter that removes solid particles, oil mist and unpleasant odours out of the air line system.
FEATURES:
- Low weight
- Economical operation
- High levels of airflow
- Warning low pressure system
- Option of filtration of supplied air with CleanAIR® Conditioner
- Compatible with a wide range of CleanAIR® headtops
SPECIFICATIONS:
- Dimensions: 240 mm / 380 mm / 220 mm
- Inlet connection: RECTUS 25, 26 and CEJN 320
- Outlet connection: RECTUS 25, 26 and CEJN 320
- Inlet pressure: 300 - 1 000 kPa
- Materials: Steel - powder-coated finish
- Recommended inlet hose: R610030 - Pressure hose standard (length: 10 m)
- Recommended outlet hose: R610046 - Pressure hose spiral (length: 10 m)
- Storage conditions: -10°C to + 55°C, humidity 20 - 95 % Rh
- Operating conditions: 0°C to + 60°C, humidity 20 - 95 % Rh
- Weight: 6.8kg
APPLICATIONS:
- Can be used in combination with CleanAIR® Pressure (Flow Master) and improve the quality of the air flowing into the headtop
- Automotive industry - welding, grinding, surface finishing operations, heavy industrial environments, chemical industry, laboratories.
| Minimum Sale Qty: | 1 |
