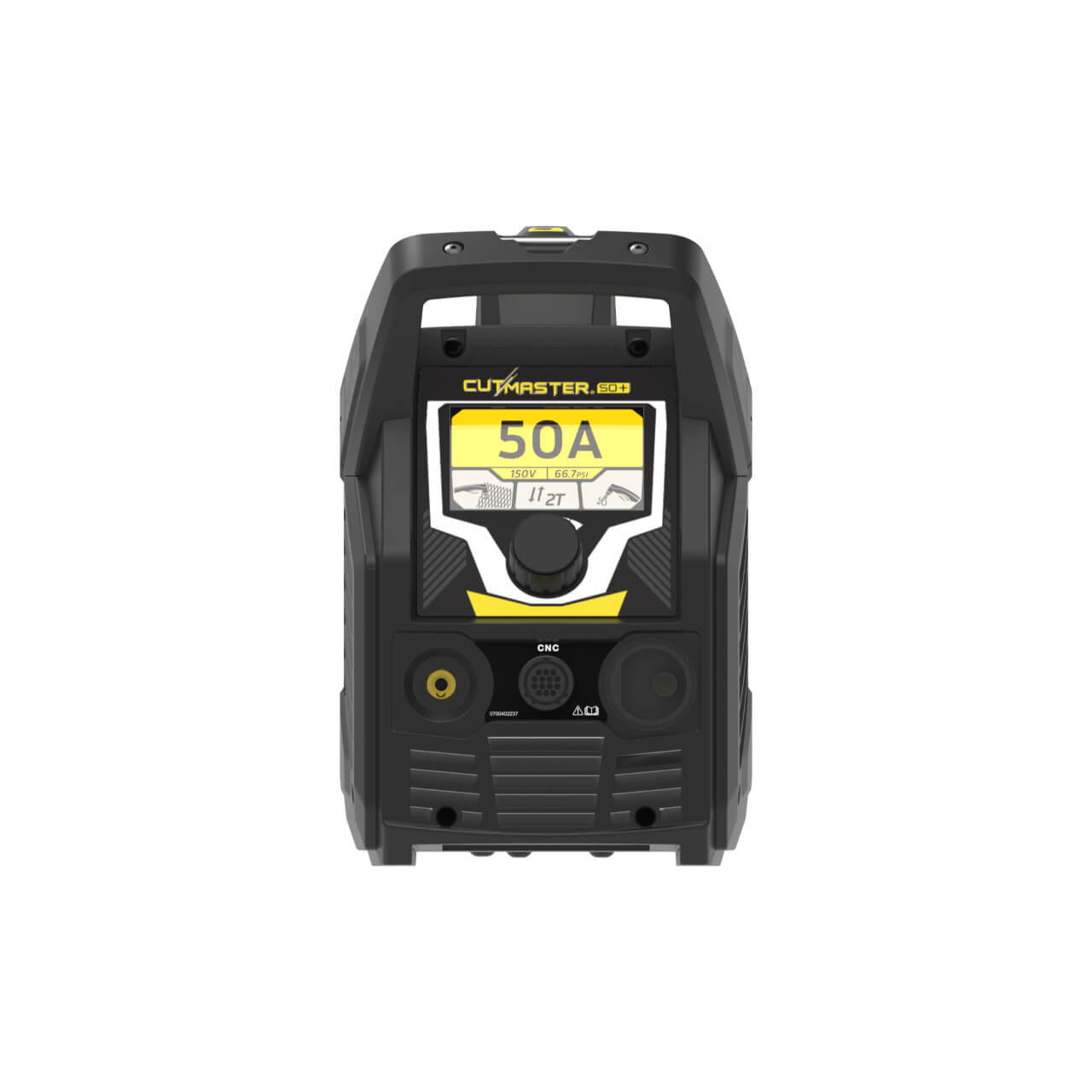

ESAB Cutmaster 50+ is the perfect combination of power and portability for hand-held plasma cutting machines. Plus means more, so we’ve added a user-friendly 4.3in. TFT LCD screen and we’ve also upgraded the power of the machine to provide more control and flexibility so you can master any genuine cutting with ease to 16mm, regular hand cutting to 25mm and occasional severance cutting to 32mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package.
FEATURES:
- Portable and durable with three handles and lightweight industrial all-weather housing
- Bright 4.3in. TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
- Input 400V/415V 3-phase power
- Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
- Switch between normal and mesh cutting modes
- Post-cut air purge to expand consumable life
- Duty cycle: 60% @ 50A; 100% @ 40A
- Cutmaster Black Series consumables included for up to 60% longer life
- Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
- CNC functionality with pre-installed 14 pin CPC receptacle and voltage divider which allows: 1. Start/Stop 2.
- OK to Move 3. Divided arc voltage (ratio 20:1, 30:1, 40:1, 50:1, 80:1)
SPECIFICATIONS:
- Amperage Output: 15 – 50A, continuously adjustable
- Brand: ESAB
- Dimensions Power Source: 465L x 200W x 315H mm
- Duty cycle: 60% @ 50A
- Gas Requirements: Compressed air (Clean &; Dry)
- Generator Requirement: 12kW
- Input Power Cable and Plug: 3m, 4.0mm2 without plug
- Input Voltage: 400VAC +/- 15%, 50/60Hz, 3ph
- Material Type: Mild Steel, Stainless Steel, Aluminium
- Number of Phases: 3 Phase
- Operating Temperature Range: -10°C to + 50°C
- Plug Type: 15A
- Power Supply: 400VAC +/-15%, 15A
- Rated Duty Cycle 40c: 60% @ 50A, 100% @ 40A
- Recommended Cut Capacity: Up to 32mm
- Regular Hand Cutting Capacity: 25mm*
- Usage: Industrial
- Warranty: 3 Year + 6 Months Extended
- Welding Process: PLASMA CUTTING
- Work Lead with Ground Clamp: 3m 10mm² work cable with 25mm² connection
- sl60 Torch Duty Cycle: 100% @ 60A with 165 l/min air flow
| Inner Qty: | 1 |
