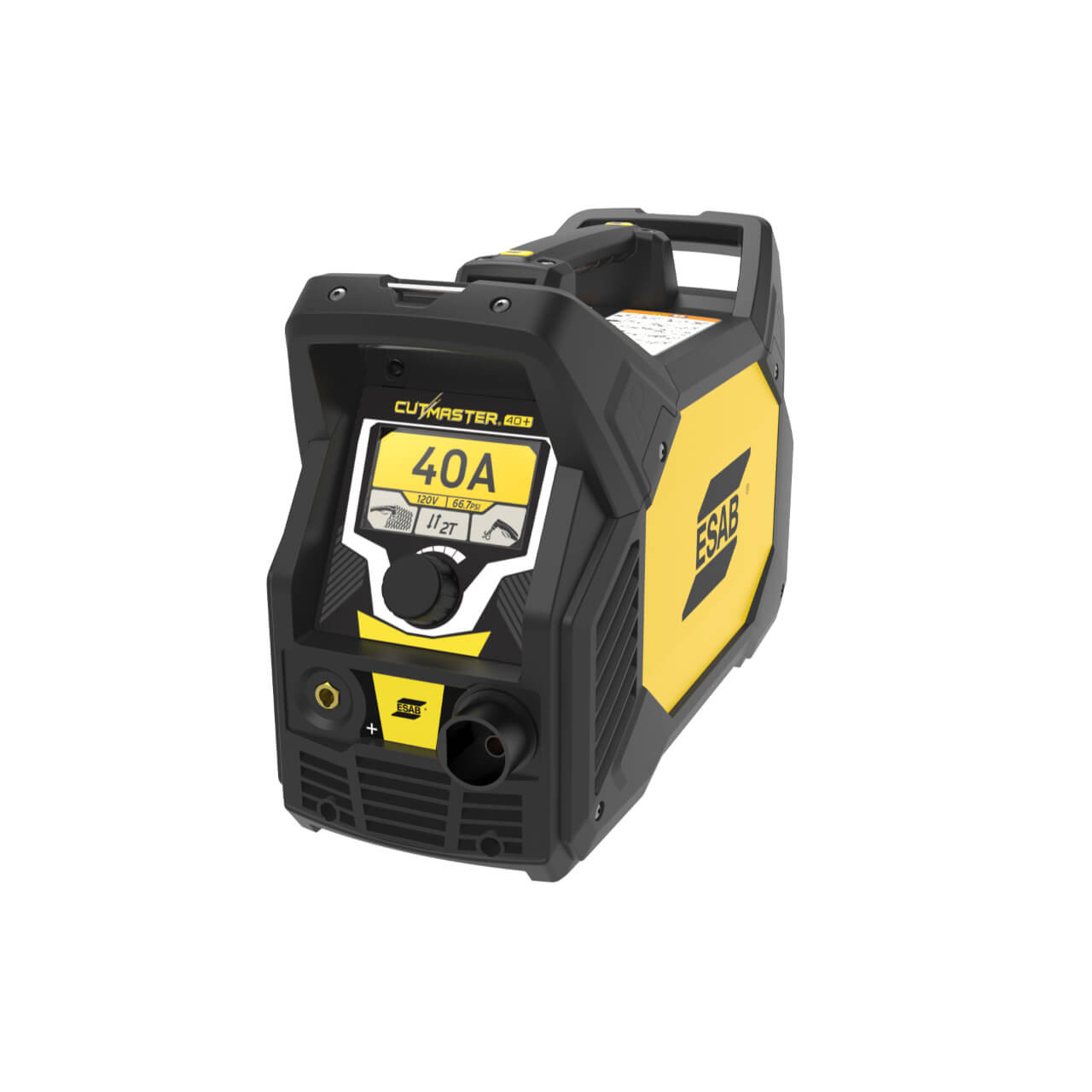

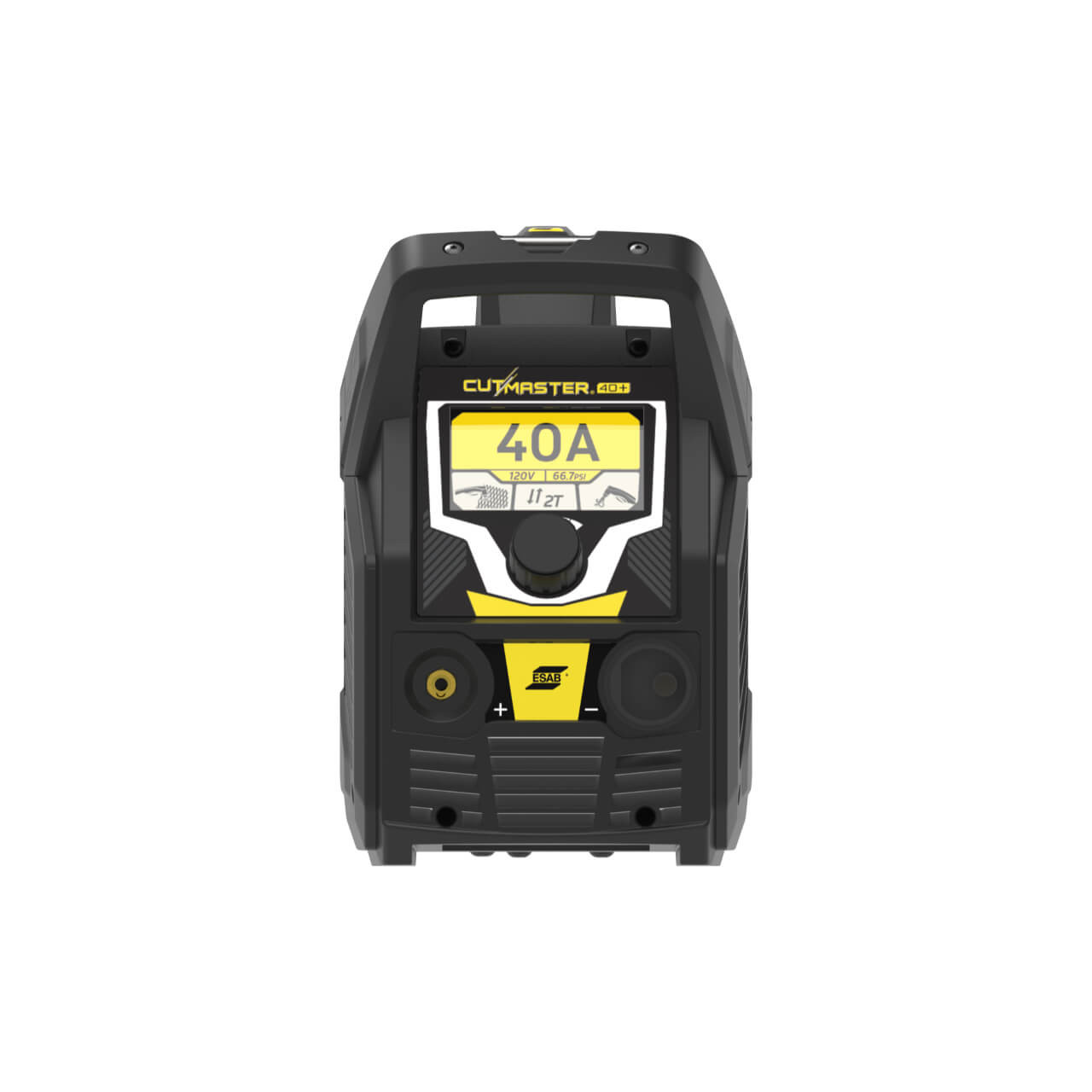

ESAB Cutmaster 40+ is the perfect combination of power and portability for hand-held plasma cutting machines. Plus means more, so we’ve added a user-friendly 4.3in. TFT LCD screen and we’ve also upgraded the power of the machine to provide more control and flexibility so you can master any genuine cutting with ease to 12mm, regular hand cutting to 16mm and occasional severance cutting to 25mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package.
FEATURES:
- Portable and durable with three handles and lightweight industrial all-weather housing
- Bright 4.3in. TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility

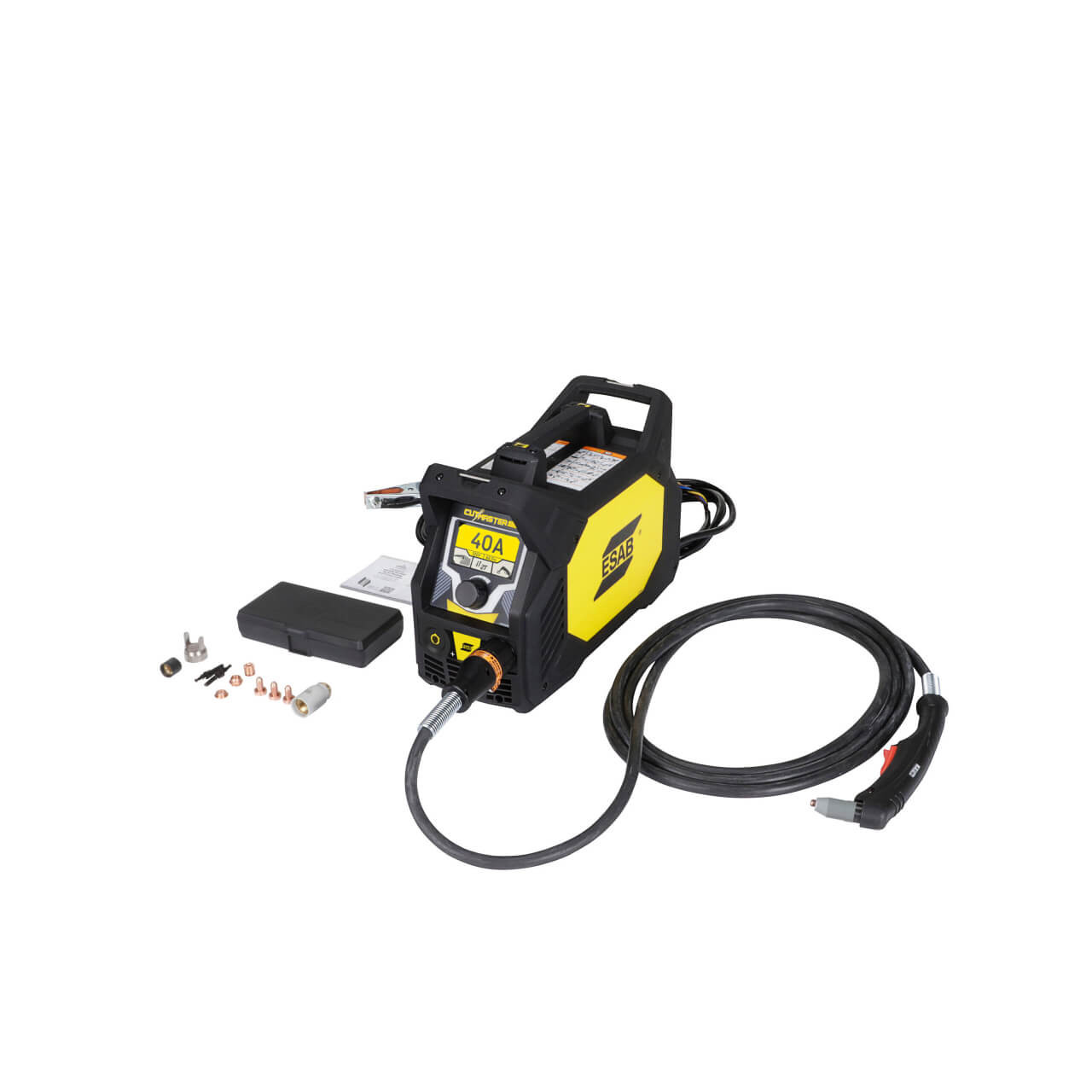

- Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
- Switch between normal and mesh cutting modes
- Automatic air pressure detection and post-cut air purge to expand consumable life
- Duty cycle: 40% @ 40A; 100% @20A
- Cutmaster Black Series consumables included for up to 60% longer life
- Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
SPECIFICATIONS:
- Dimensions Power Source: 228 H x 117 W x 470 D mm
- Duty cycle: 40% @ 40A
- Gas Requirements: Compressed air (Clean &; Dry)
- Generator Requirement: 8kW
- Input Power Cable and Plug: 3m 1ph 2.5mm² 15A AU plug
- Input Voltage: 230VAC +/- 10%, 50/60Hz, 1ph
- Material Type: Mild Steel, Stainless Steel, Aluminium
- Number of Phases: Single Phase
- Open Circuit Voltage OCV: 298V
- Operating Temperature Range: -10°C to + 50°C
- Plug Type: 15A
- Power Factor at Max Current: 0.98
- Power Supply: 240V, 15A
- Rated Duty Cycle 40c: 40% @ 40A, 100% @ 20A
- Recommended Cut Capacity: Up to 25mm
- Regular Hand Cutting Capacity: 16mm*
- Usage: Industrial
- Warranty: 3 Year + 6Months Extended
- Welding Process: PLASMA CUTTING
- Work Lead with Ground Clamp: 3m 10mm² work cable with 25mm² connection
- sl60 Torch Duty Cycle: 100% @ 60A with 165 l/min air flow
| Inner Qty: | 1 |
