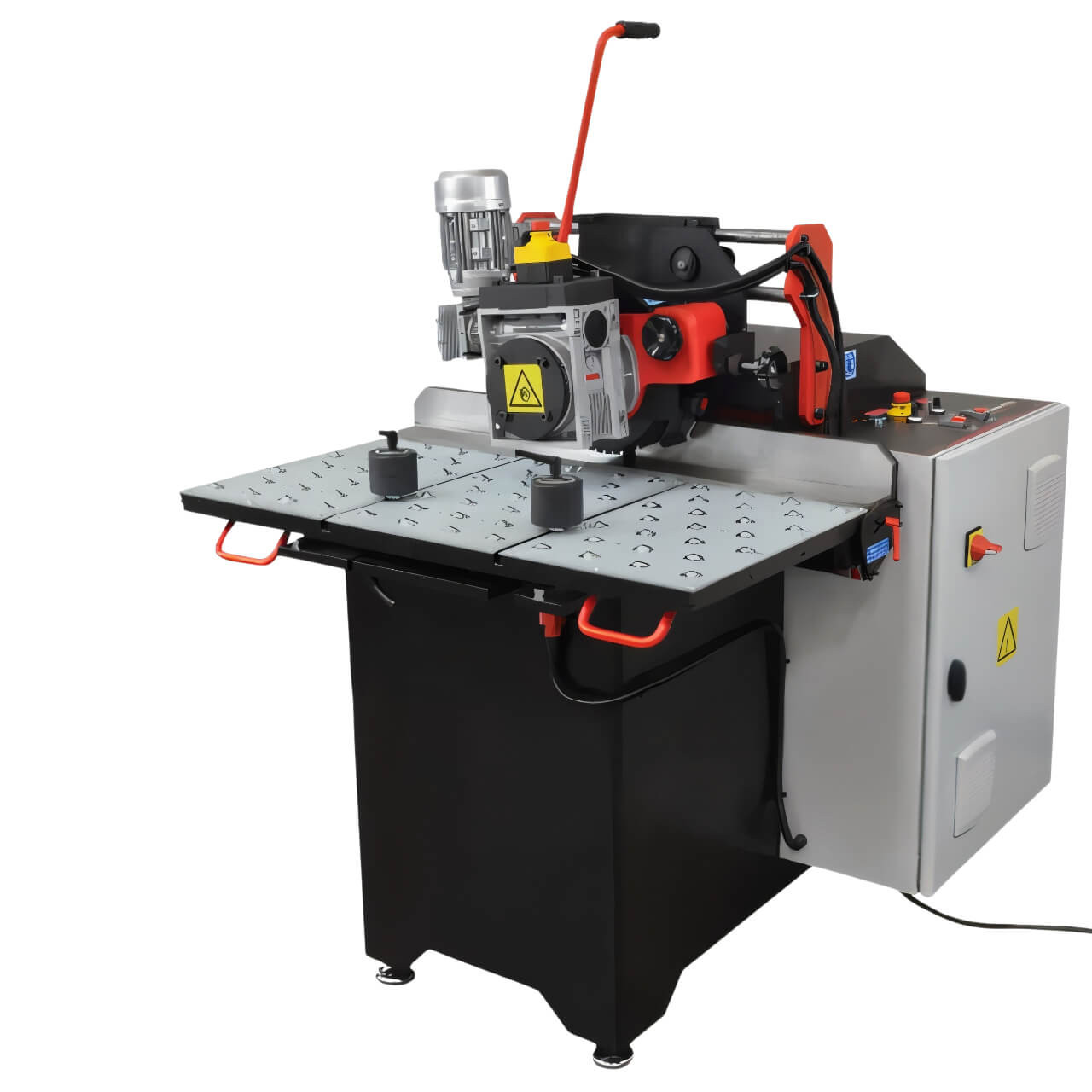

Stationary beveller for machining straight edges of different size workpieces. Modern design, numbers of advanced control systems and innovative solutions streamlines workflow to maximize your production efficiency.
FEATURES:
- Edge bevelling
- Ergonomic ball roller bench
- Swarf drawer
- Supplementary tables to accommodate long workpieces
- Pipe beveling attachment for pipes 50-150 mm (2-6â€) OD
- 3D contact wheel control ensures proper workpiece alignment in relation to milling head
- Very high surface quality

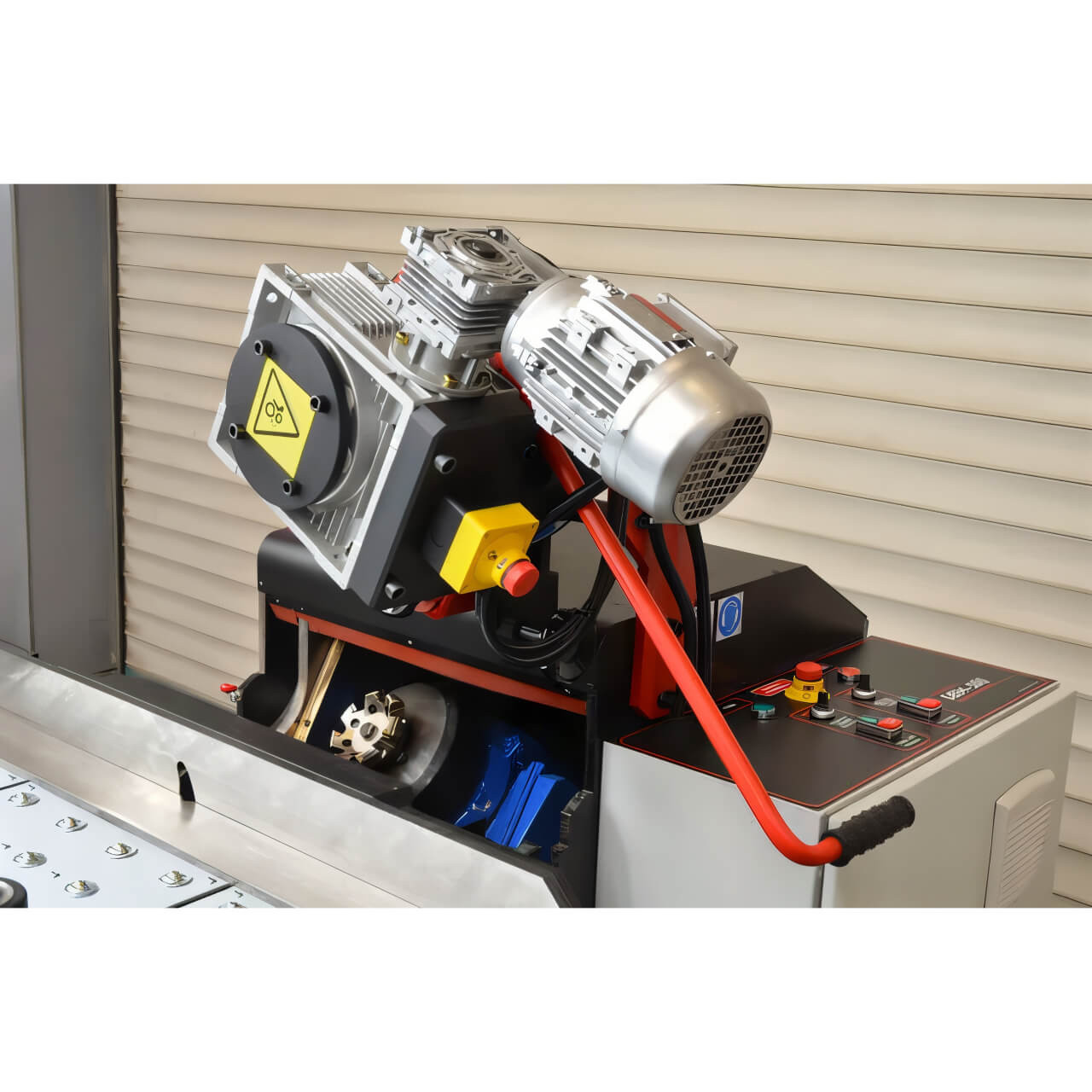

- High speed rotary milling head equipped with 10 inserts
- Cutting inserts dedicated to various materials
- No heat affected zones or distortion of the workpiece
- Easy access to milling head and cutting inserts
- Precise setting of bevel angle from 15 up to 60 degrees and bevel width up to 30 mm
- Continuous adjustment of spindle speed and feed rate make it suitable for different types of steel and aluminum
SPECIFICATIONS:
- Voltage: 3~ 400 VAC + N+PE, 50/60 Hz
- Power: 7500 W
- Spindle speed (no load): 500 - 2920 rpm
- Feed rate: up to 3.3 m/min
- Bevel angle range: 15 - 60° with continuous angle adjustment
- Bevel width: up to 30 mm
- Workpiece height: from 3 mm up to 100 mm Edge Beveling
- Min. workpiece width: 50 mm
- Min. workpiece length: 150 mm
- Pipe OD beveling: from 50 mm up to 150 mm (option)
- Weight: 850 kg
