FEATURES:

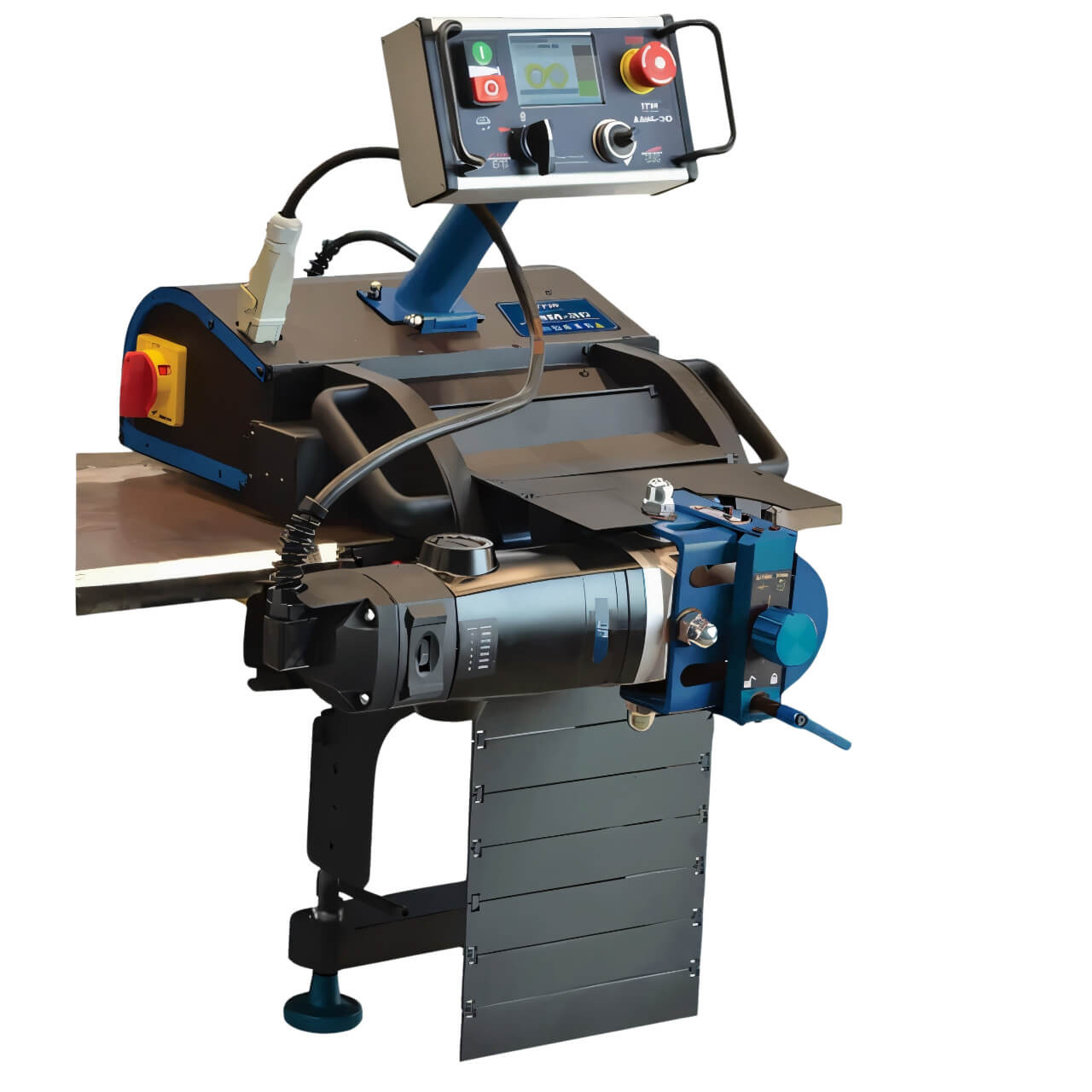

The ABM-30 portable bevelling machine performs auto feed beveling on steel plates on top, face and bottom edges.
The beveller needs no track to move along steel plate to produce accurate high-quality double-side bevels without thermal distortion or creation of heat affected zone on plate thickness range 8 - 60mm.
The ABM-30 features an infinitely adjustable bevel angle between -70° and +70° and is capable of producing bevels up to 30mm wide.
It also allows for facing in both directions with the milling head depth of 1mm.
- Needs no track to travel in both directions with feed speed up to 2m/min.
- 4 Wheels feed drive eliminates hard physical work of the operator.
- Produces double-side bevels without having to flip the plate enhancing safety and reducing material handling time and expense.
- Edge to edge working range.
- Semi-automatic feed stop at end of the metal sheet.
- Variable spindle speed.
- Bevel width up to30mm (1-3/16").
- Variable angle -70° to +70°.
- Max. plate thickness up to 60mm.
- Innovative, robust chip protection solution.
SPECIFICATIONS:
- Voltage: 1~ 200-240 V, 50/60 Hz
- Power: 2200W
- Spindle Rotational Speed (Without Load): 1800 - 5850rpm
- Feed Speed: 0 - 2m/min
- Bevel Angle (ß, Fig. 1): From -70° to 70°
- Maximum Bevel Width (b, Fig. 1): 30mm
- Sheet Thickness: 8 - 60mm
- Required Ambient Temperature: 5 - 40°C
- Weight: 43kg
