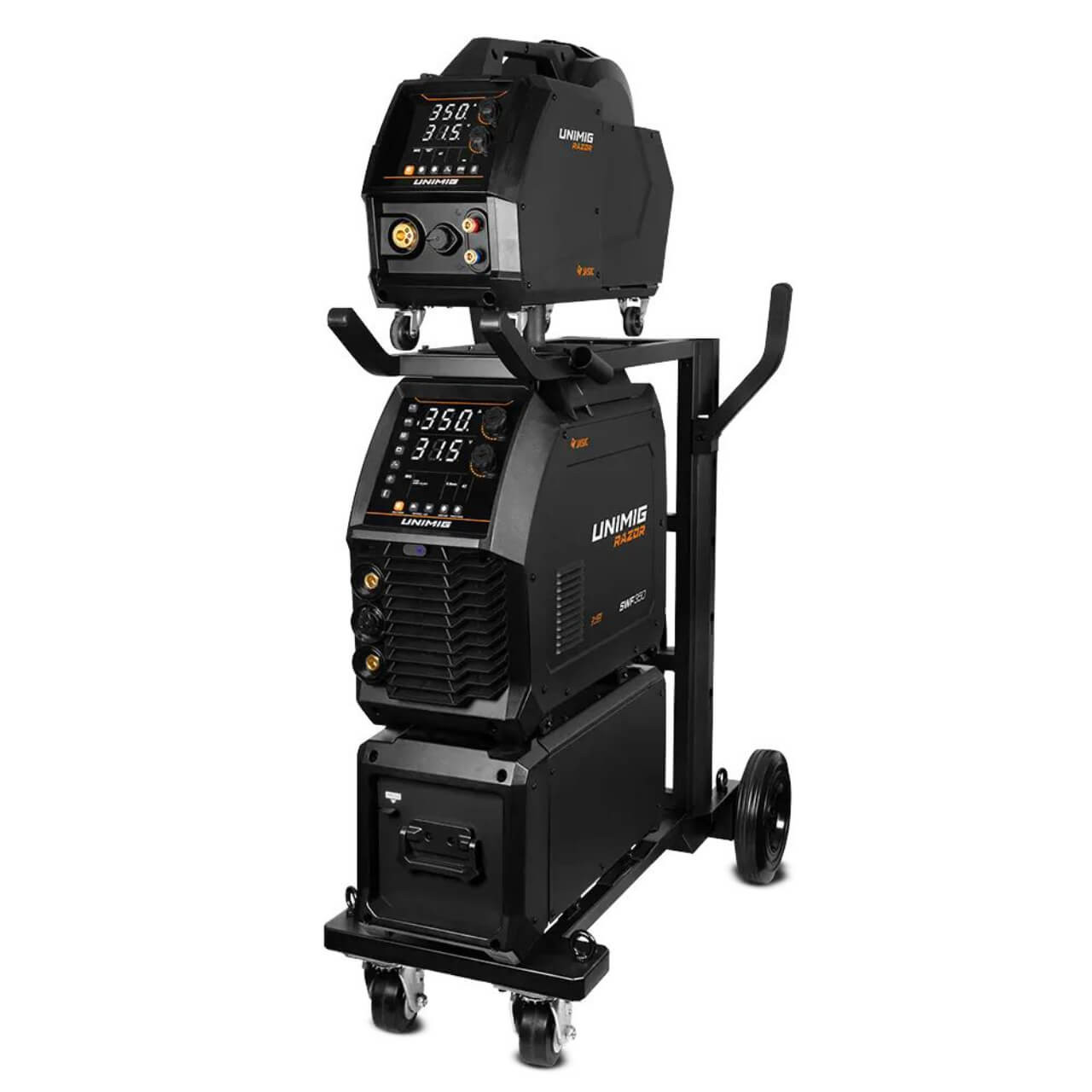

This heavy-duty workshop unit guarantees premium welds and unmatched performance, even in the most challenging conditions.
FEATURES:
- A separate wire feeder gives extra manoeuvrability
- Push-Pull gun ready for heavy-duty welding
- 4 geared wire drive system for the smoothest wire feeding experience
- Smart-Set MIG: Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It'll pick the optimal settings for your weld
- Multi-Process: Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and MMA welding all in one unit, it's also capable of running both gas-shielded and gasless MIG wire, so you can tackle a wide variety of welding projects with ease. Whether you're working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered, saving you valuable time and effort without sacrificing quality
- HD Backlit Interface: This next-generation interface panel is bright and easy to read in any environment
- Digital Control MIG Torch: Our digital MIG torch allows you to adjust your settings on the fly. No more hassle of constantly adjusting your settings on a separate control panel. With our leading technology, you can easily fine-tune the amps, current and voltage at the touch of a torch button
- 4 Geared Wire Drive: The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire feeding, especially in longer torches
- Accessories: Ready for any kind of welding you've got planned, connect a complete range of MIG, TIG or MMA accessories to your welder
- Inverter Technology: Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, youget better performance, better efficiency, and better reliability
- Smart Fan: Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine
- IP23S: Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still
- Advanced MMA Features: Advanced MMA features are designed for improving weld quality and ease of use
- Separate Wire Feeder: Get the ultimate flexibility. The addition of a separate wire feeder means you can detach the wire feeder from the main power source, giving you an extra 10m of manoeuvrability
- Large Wire Spool Capacity: Fits both D200 and D300 wire spools, so you can put 15kg mild steel or 7kg aluminium spools in the machine
- Job Memory: The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 10 jobs can be memorised and stored for recall
- Generator Compatible: Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 40kVA for this machine
SPECIFICATIONS:
- Primary Input Voltage: 415V Three-Phase
- Supply Plug: Unplugged (32A Recommended)
- Ieff (A): 13.9
- Imax (A): 25.0
- Open Circuit Voltage: 75.0 OCV
- Open Circuit Voltage with VRD Active: 13.0 V
- Protection Class: IP23S
- Insulation Class: H
- Minimum Generator: 23.0 kVA
- Dinse Connector: 35/50
- Standard: AS 60974.1
