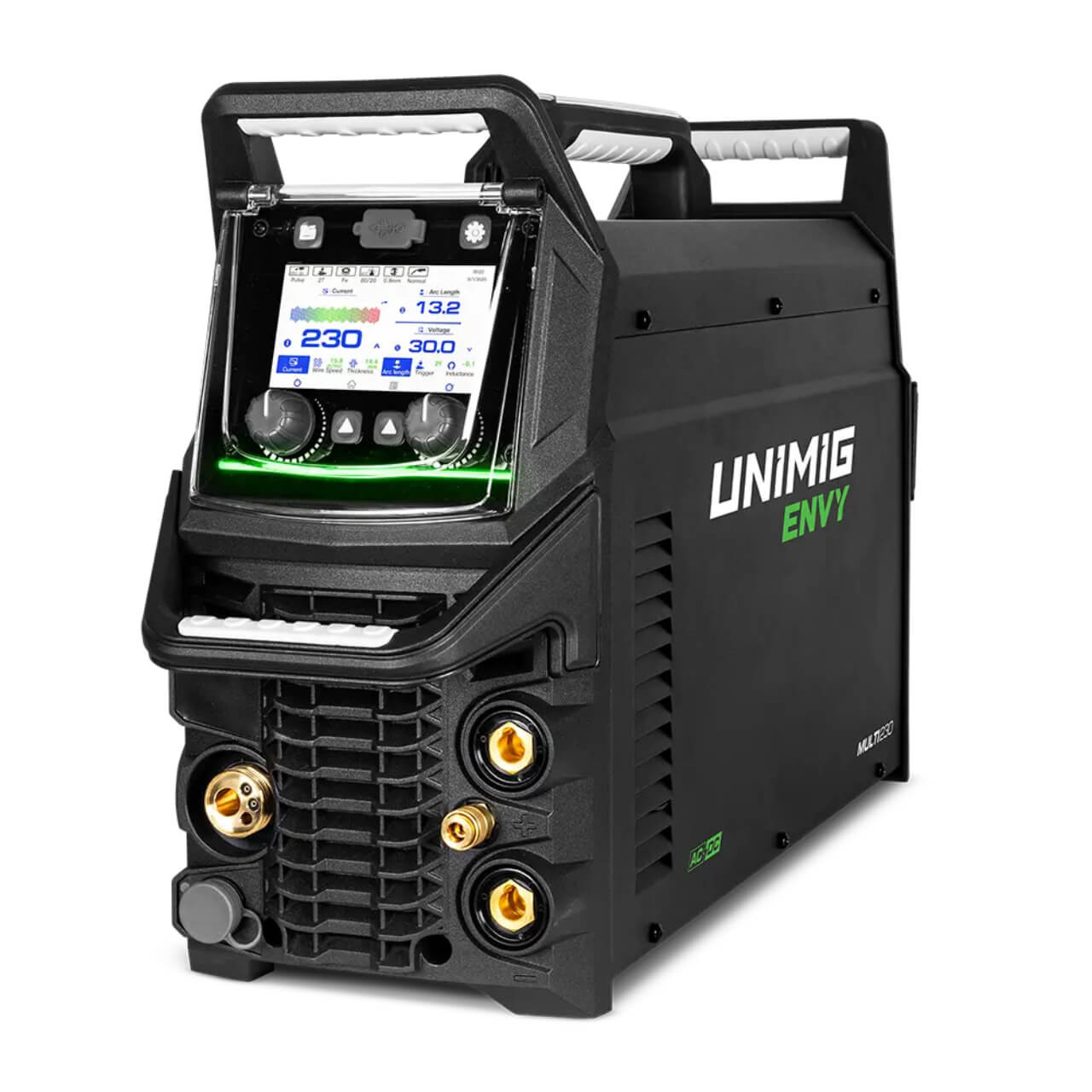

The UNIMIG ENVY 230 is the bee’s knees of all multi-process welders, combining power, precision, and innovation in one incredibly versatile machine. With advanced AC/DC Pulse MIG, TIG, and MMA capabilities, it handles everything from mild steel to aluminium with ease. A 5" colour LCD touchscreen and job memory for 100 welds make setup a breeze, while features like Single/Double Pulse MIG, Mixed AC/DC TIG, Smart Fan, and PFC deliver cleaner welds, lower energy costs, and improved arc stability. Whether you're in the workshop or out on-site with a generator, this machine is built to perform and backed by a 5-year UNIMIG warranty, it’s the ultimate tool for serious professionals.
FEATURES:
- Smart Fan: Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine
- Power Factor Correction (PFC): Get the most out of your machine. The PFC maximises the electrical efficiency of the machine andautomatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer
- Job Memory: The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 100 Jobs can be memorised and stored for recall
- Foot Control Ready: This machine supports the connection of both a wired or wireless foot control for extra versatility and convenience while welding. You can adjust your amperage hands-free to avoid disrupting your torch movement, and the wireless option reduces cables and adds greater manoeuvrability as well
- 5” Colour LCD Touchscreen: Change settings with ease with the intuitive touchscreen controls and next-generation user interface
- Generator Compatible: Going off the grid? The ENVY MULTI 230 AC/DC can be connected to a generator, we recommend one with at least 8.5kVA
- IP21S Rating: Rated IP21S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray from a vertical direction
MIG Features:
- Single &; Double Pulse MIG: No spatter. Less heat. Same penetration. Streamline your welds with the single and double pulse functions
- Single pulse: A single pulse weld alternates between a peak and base current, which works to minimise the amount of heat input without compromising on any of the penetration. The addition of a base current and reduction in heat means it's perfect for softer materials like aluminium. Pulse welding is also done by spray transfer, eliminating spatter and cutting your post-weld clean-up time
- Double pulse: A double pulse weld alternates between a peak current and two base currents, reducing the heat input of the weld even further than single pulse, while still maintaining all of the benefits. Because of the faster freezing puddle, your double pulse welds come out looking just like a stack of dimes. You get the aesthetics of aTIG weld with all the speed of spray MIG
- MIG Smart-Set: Setting up for a weld has never been easier, just set your wire material and size, gas, and joint type and you’re ready to weld!
- Complete MIG Weld Cycle Control: Get complete control over your MIG welds with a full set of adjustable parameters, such as pre- and post-gas flow, inductance, and burnback
- Spool Gun Ready: Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime
- Push-Pull Gun Ready: Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a ‘Pull’ motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding
- Hot Start: Get the smoothest arc start possible. The Hot Start function gives a boost of current at the beginning of your weld, eliminating any issues with starting on cold metal, letting you weld on thicker materials and making welding aluminium even easier
- Crater Fill: End your welds as strong as they started. Crater Fill ramps your welding current and voltage down at the end of a weld, filling it in at a lower amperage, eliminating craters and pinholes.
- Adjustable Arc Length: Get absolute precision on your settings. The adjustable arc length allows you to increase or decrease the preselected voltage while in synergic and pulse MIG modes.
- Inductance Control: Take complete control of your arc with the inductance settings. By changing the frequency of your short circuit MIG welds with the Inductance controls, you can choose your preferred arc characteristics on every weld
- Burnback Adjustment: Stop your wire from ever fusing with your weld or your contact tips again. Tune your burnback control to suit how much wire you want to remain sticking out from your torch when you finish a weld
- Gas-Shielded &; Gasless Wires: This machine supports both gas-shielded MIG and gasless MIG, meaning you can run mild steel, stainless steel, aluminium as well as flux-cored MIG wires.
- Inductance Control: Change the frequency of your short circuit MIG welds with the Inductance settings, so you can choose your preferred arc characteristics
- Digital 4 Geared Wire Drive: Experience unparalleled accuracy with our Digital 4 Geared Wire Drive system. Designed to sustain a consistent arc in varying conditions and with different wire types, it ensures an accurate wire feed speed. With this system, achieving precision in every welding task is effortless
TIG Features:
- TIG Smart-Set: The easiest way to set up for a TIG weld, simply set your filler material, joint type, tungsten diameter, material thickness, and gas and you’re good to go!
- Mixed AC/DC: Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, youget faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld thicker materials.
- Independent Amplitude Control: The independent amplitude lets you adjust the amperage in both the EP and EN parts of the AC cycle, letting you completely customise the amount of heat directed to the workpiece and the tungsten
- Tungsten Optimiser: Select the tungsten diameter and get an optimised welding arc ignition in AC and DC TIG based on the chosen diameter
- Heat Control Trigger (HCT) Mode: Heat Control Trigger Mode lets you set a base current, which you can switch to at any time during a weld by pressing the trigger button
- Heat Control Trigger Mode is great for manual heat input control as you go
- Cap Shaping: Get the perfect tungsten shape for your aluminium welds every time with just the click of the trigger. Turn the cap shaping feature on, press the torch trigger, and the machine will prep the optimal tungsten shape for your aluminium welds
- AC Waveforms: Customise your AC waveforms. Choose from your preferred welding waveform or use a combination of two to adjust the arc characteristics to suit your welding needs
- Higher Pulse Frequency in AC &; DC: With a pulse frequency as high as 999 pulses per second in both AC and DC TIG, you can get as many pulses as you need for any scenario
MMA Features:
- MMA (STICK): You’ll be able to weld anything, including cellulosic electrodes
- Pulse MMA: Pulse MMA welding helps reduce spatter, improves heat control and allows for an easier removal of slag. It also improves the speed and efficiency of vertical up welds by eliminating the use of the “Christmas Tree” technique, while still maintaining root fusion
- Hot Start: The Hot Start feature gives a boost of current at the beginning of your weld, stabilising your ignition and eliminating any issues with striking an arc, especially on difficult electrodes.
- Arc Force: The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking
- Anti Stick: The Anti Stick feature, which is always on, prevents your electrode from sticking to your workpiece. When the machine detects sticking, the current will drop significantly, so the electrode can be removed
APPLICATIONS:
- MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
- MMA: Mild Steel, Stainless Steel, Cast Iron
- TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze
INCLUDES:
- ENVY MULTI 230 AC/DC Welder
- 3m M26 Digital MIG Torch
- 4m T2 TIG Torch
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp &; Lead
- Argon Regulator
- 1.8m Quick-Connect Gas Hose
- Operating Manual
- 2 x 0.8-0.9mm V Groove Roller
- 2 x 0.8-0.9mm F Groove Roller
- 2x 1.0-1.2mm U Groove Roller
MACHINE SPECIFICATIONS:
- Primary Input Voltage: 240V Single-Phase
- Supply Plug: 15A
- Ieff (A): 15.0
- Imax (A): 30.0
- Open Circuit Voltage (OCV): 76.0
- Open Circuit Voltage with VRD Active (V): 14.4
- Protection Class: IP21S
- Insulation Class: H
- Minimum Generator (kVA): 10
- Dinse Connector: 35/50
- Standard: AS 60974.1
- Warranty: 5 Years
- Weight (kg): 24.00
- Dimensions (LxWxH): 680 x 210 x 395mm
MIG SPECIFICATIONS:
- MIG Current Range: 25-230A
- MIG Duty Cycle @ 40°C:
- 25% @ 230A
- 60% @ 148A
- 100% @ 115A
- MIG Wire Sizes: 0.6-1.2mm
- MIG Wire Spool Sizes
- 5kg (D200)
- 1kg (D100)
- MIG Welding Thickness Range: 1-10mm
- Drive Roller Size: 30/22
TIG SPECIFICATIONS:
- TIG Ignition Type: AC/DC High-Frequency
- TIG Current Range: 10-230A
- TIG Duty Cycle @ 40°C
- 35% @ 230A
- 60% @ 175A
- 100% @ 136A
- TIG Welding Thickness Range: 1-10mm
MMA SPECIFICATIONS:
- MMA Current Range: 10-200A
- MMA Duty Cycle @ 40°C
- 25% @ 200A
- 60% @ 130A
- 100% @ 100A
- MMA Electrode Range: 2.5-4.0mm
- MMA Welding Thickness Range: 2-12mm
