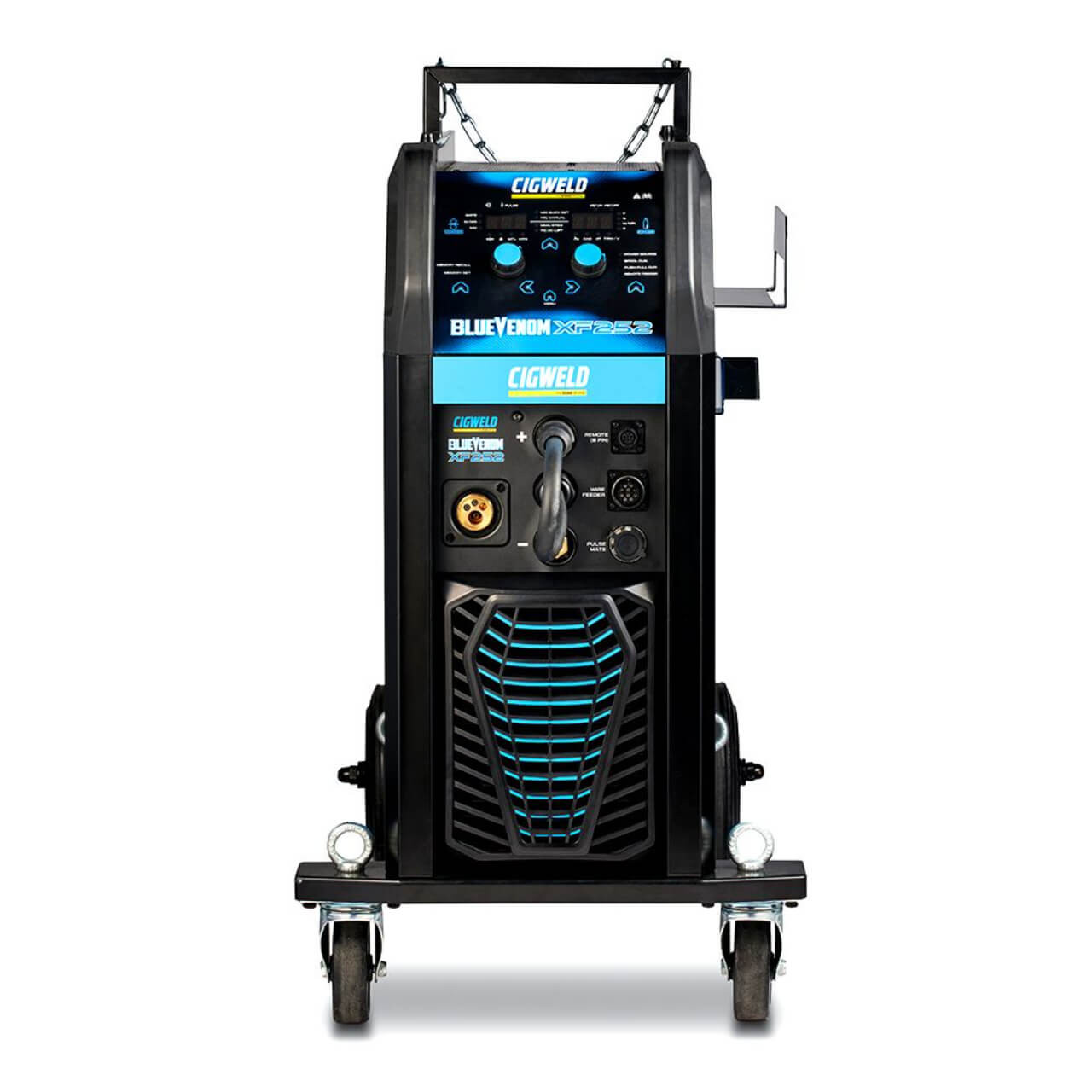

The new BlueVenomXF252 is a 3-in-1 multiprocesswelding inverter that has been specifically engineered to be narrower in size for easy access in tight and constrained areas but also as a modular arc station!
As a compact unit you will have access to XtraFunctions that allows the machine to be used for standard MIG / STICK / TIG DC-Lift processes, or as a Synergic MIG with Plate Thickness Selection as standard.
To take it a step further, the XF252 can connect to the All-New 4R-Roverremote wirefeedsystem(sold separately) -a plug n' play, 4 Roll wire driveunit that you can setup where you need it.Need it on a gantry or boom?No problem, with the 8m interconnection cable and in-built hanging mount, you can! PLUS, its designed specifically with a low mount handle making this little gem as compact a 300mm wire spool system can be!
The BlueVenomXF252 is fitted with Input Supply Rating Settings for 15A or 25A that is selectable via the Advanced Setting Menu using a 3 Digit Pin Code. It delivers a maximum output of 250Amps DC in MIG and TIG Modes, which means the machine is capable of welding metals from 1.0mm up to 14mm. In STICK mode the machine is capable of welding metals from 1.6mm up to 20mm in thickness.
FEATURES:
- 4x Roll Wire Drive system
- 300mm Diameter Spool Capability and includes 200mm spool adapter
- MIG Gun holder and cable management bracket
- Engineered Gas Cylinder holder for up to ‘G’ Size cylinders
- 4-Point Lifting Lugs for safer and convenient maneuverability
- Locking brackets for 4R-Rover to avoid wirefeedersliding
- MIG Adjustable Wire Burnback
- MIG Crater Fill function in 2T &; 4T
- MIG Side door wire installation, side loader
- MIG Anti de-spooling safety feature
- MIG PulseMate, Spool Gun &; Push-Pull Gun Compatible
- STICK with Voltage Reduction Device (VRD) built-in for Safe Welding
- STICK Hot Start
- STICK Arc Force
- TIG Foot Control Compatible
- TIG Dial Remote Torch Compatible
SPECIFICATIONS:
- Nominal Supply Voltage: 230/240 VAC ± 15%
- Nominal Supply Frequency: 50/60Hz
- Nominal DC Open Circuit Voltage MIG Weld Mode: 53V
- Open Circuit Voltage (VRD On) Stick Weld Mode: <;35V
- Open Circuit Voltage (VRD Off) Stick Weld Mode: 53V
- Open Circuit Voltage Lift TIG Weld Mode: 53V
- Supply Lead and Plug Rating:
- 15A Ratings below apply to the Factory Fitted 2.5mm2 Supply Lead &; 15A Plug
- 25A Ratings below apply to an Upgraded 4mm² Supply Lead &; 25A Plug Fitted
- MIG Mode Welding Current Range:
- 15A: 30-220A
- 25A: 30-250A
- Stick Mode Welding Current Range:
- 15A: 20-205A
- 25A: 20-230A
- TIG DC Lift Mode Welding Current Range:
- 15A: 20-250A
- 25A: 20-250A
- Effective Input Current (l1eff)
- 15A: 14.8 Amps (230VAC)
- 15A: 14.2 Amps (240VAC
- 25A: 22.7 Amps (230VAC)
-25A: 21.8 Amps (240VAC)
- Maximum Input Current (l1max):
- 15A: 33.1 Amps (230VAC)
- 15A: 31.7 Amps (240VAC)
- 25A: 38.4 Amps (230VAC)
- 25A: 36.8 Amps (240VAC)
- Minimum Single Phase Generator Requirement for Maximum Output:
- 15A: 10kVA@0.8PF
- 25A: 12kVA@0.8PF
- MIG (GMAW) Welding Output, 40°C, 10 min:
- 15A:
- 220A @ 20%, 25.0V
- 127A @ 60%, 20.4V
- 98A @ 100%, 18.9V
- 25A:
- 250A @ 35%, 26.5V
- 191A @ 60%, 23.5V
- 148A @ 100%, 21.4V
- Stick (MMAW) Welding Output, 40°C, 10 min:
- 15A:
- 205A @ 20%, 28.2V
- 118A @ 60%, 24.7V
- 92A @ 100%, 23.7V
- 25A:
- 230A @ 35%, 29.2V
- 176A @ 60%, 27.0V
- 136A @ 100%, 25.4V
- TIG DC Lift (GTAW) Welding Output, 40°C, 10 min
- 15A:
- 250A @ 20%, 20.0V
- 144A @ 60%, 15.8V
- 112A @ 100%, 14.5V
- 25A:
- 250A @ 35%, 20.0V
- 191A @ 60%, 17.6V
- 148A @ 100%, 15.9V
- Protection Class: IP21
- Number of Phases: Single Phase
- Cooling: Fan Cooled
- Standards: AS 60974.1:2020 / IEC 60974-1:2019 EN 60974-10:2021
- Dimensions (L x W x H): 1075mm x 460mm x 865mm
- Weight: 55kg
