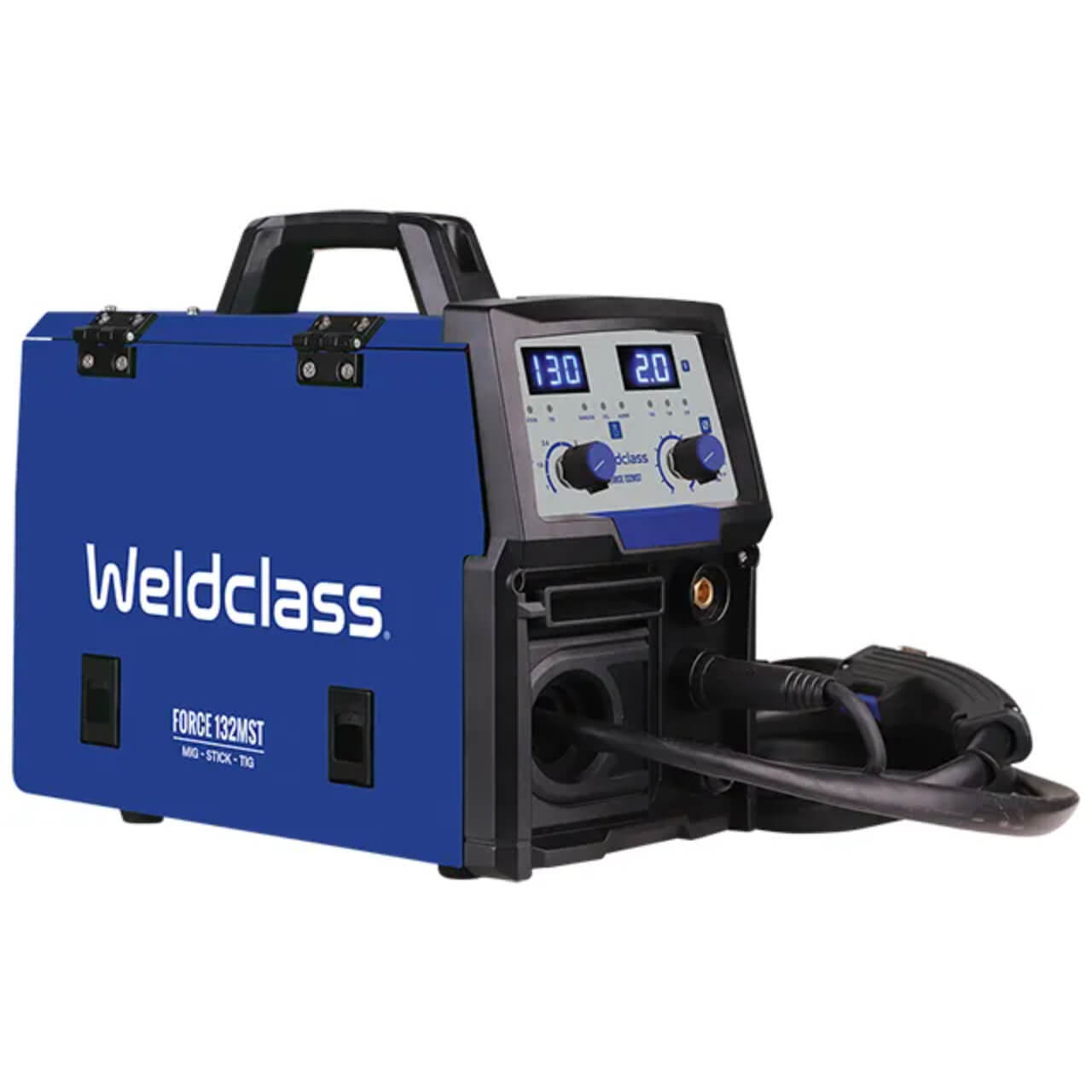

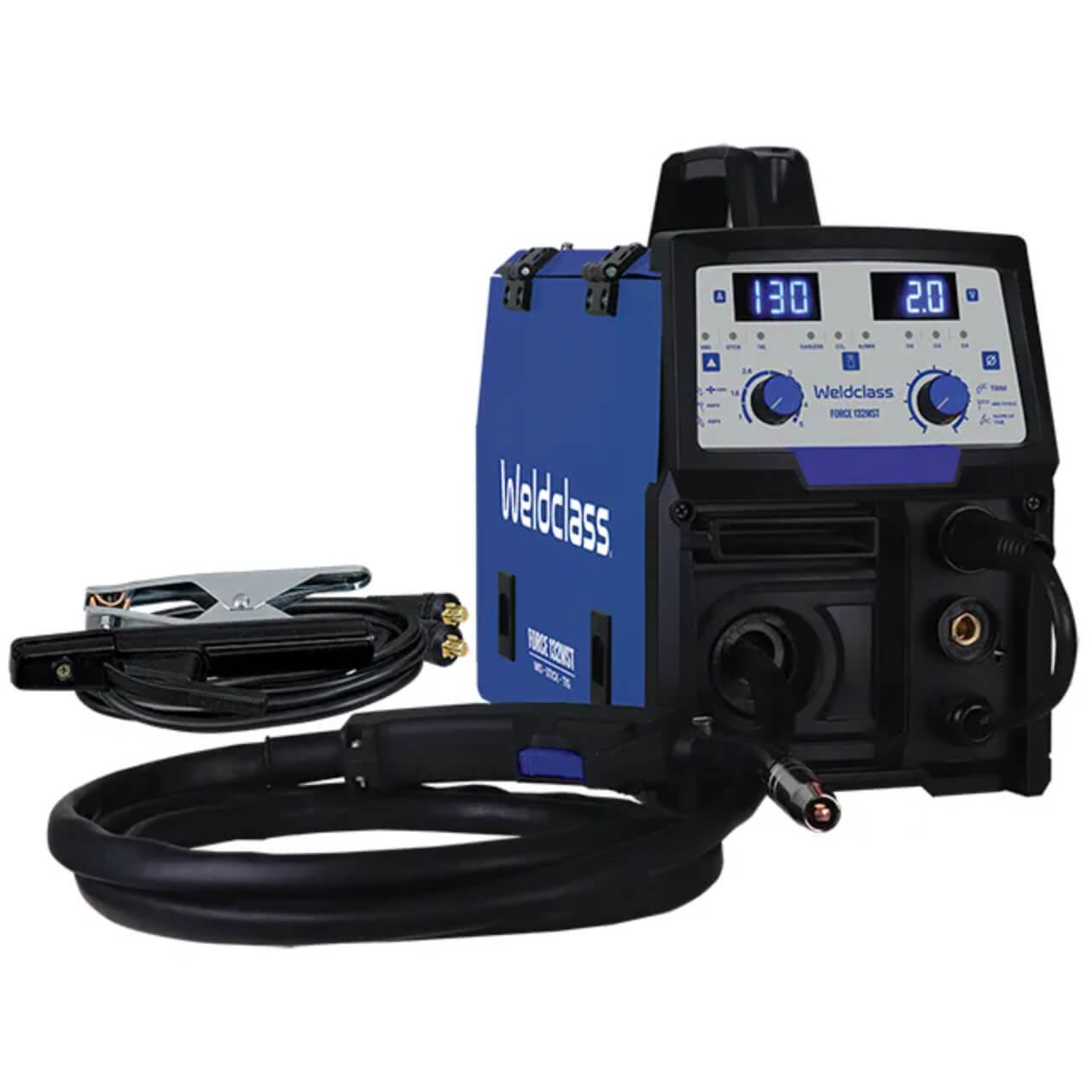

Offered as a 6-piece "Ready Kit", the FORCE 132MST is packed with features and value. Everything you need to pull the trigger, with some bonus features not usually found on machines in this class. Includes: 132MST machine with torch, earth lead, stick lead, 10A plug fitted, spool of gasless wire, premium welding gloves, spare tips and wire brush. Impressive 130 amps output for welding up to 5mm steel in MIG mode, and super-easy-to-use 'synergic' controls with LCD displays, all in a very portable 6.5kg unit. Plus: Gas & Gasless MIG, Stick and TIG capability, Stick arc-force adjustment, TIG slope-up control, Quick-connect gas inlet, 7-year warranty offer, and much more!
FEATURES:
- Industry-first 7-year warranty**
- Ready to weld with Gasless MIG &/or Stick - includes; Roll of gasless wire, Wire brush / chipping hammer, Earth lead, Stick welding lead, Gloves
- Very easy-to-use synergic MIG controls (select wire & gas, then just set dial based on material thickness)
- Digital readout displays
- Lightweight, only 6.5kg
- Very compact L350 x W190 x H290mm
- Stick/MMA Arc-Force adjustment, for stable arc &; reduced electrode sticking
- Stick/MMA Hot-Start (built in) for easy electrode striking
- TIG Slope-Up adjustment, for smoother arc ignition

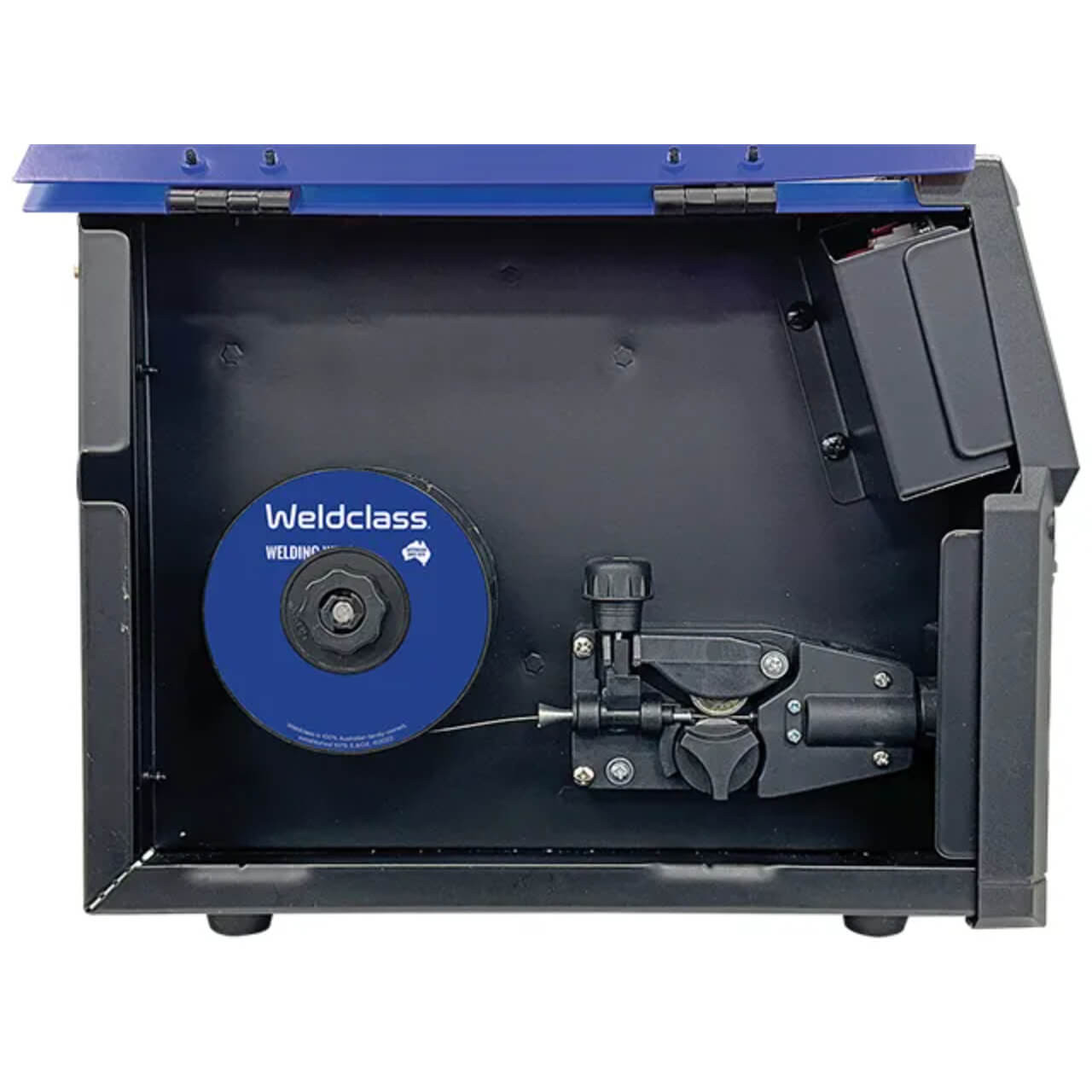

- Quick-change MIG wire spool hub design with twist-lock spool retainer
- Quick-connect gas inlet connection, for fast &; easy gas hose fitting/removal (gas hose is optional extra)
- Over-specified 16mm² cables on torch, earth, &; stick leads for reliability*
- Electrical gas solenoid valve built into machine*

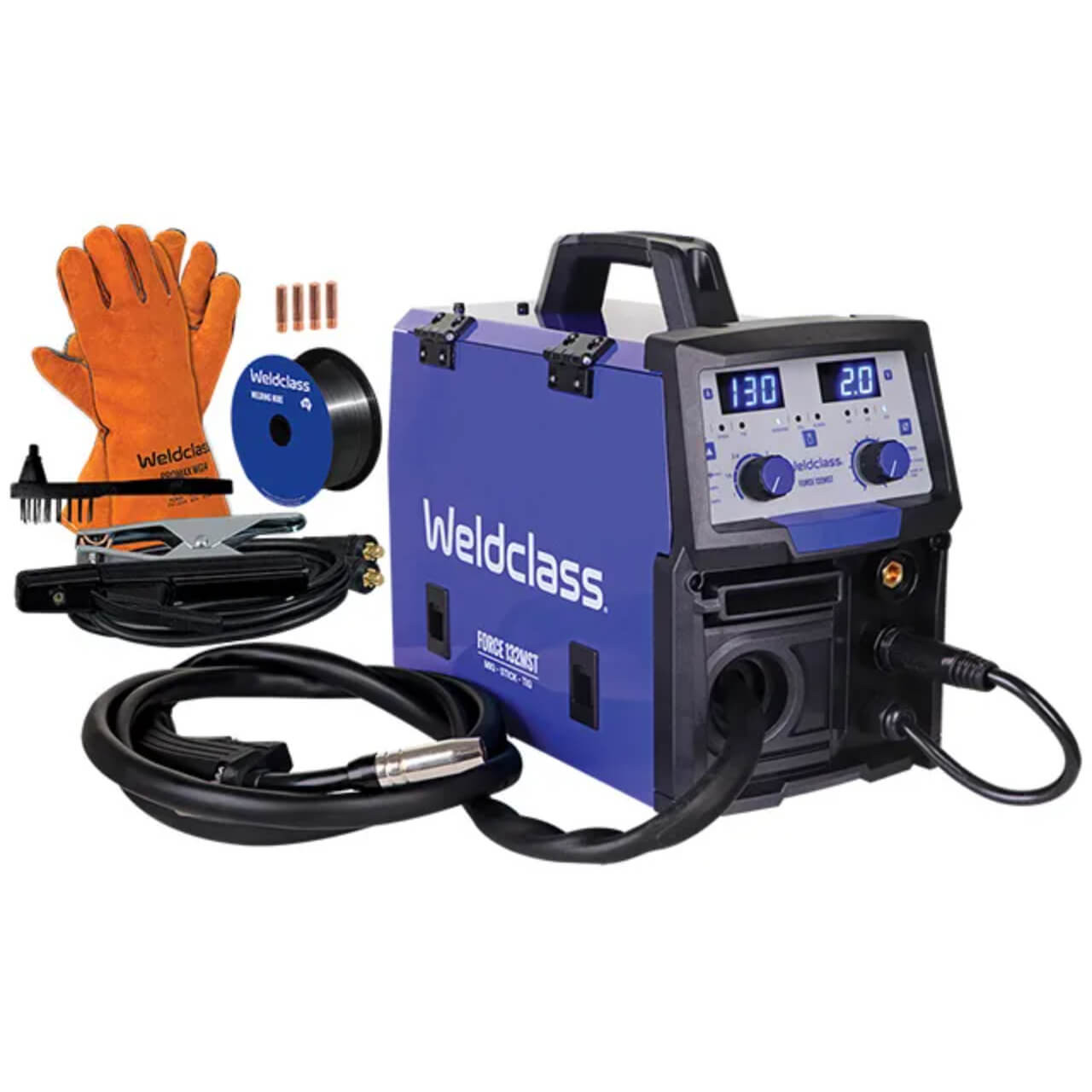

INCLUDES:
- MIG Torch BZL 15 2m direct-connect
- Earth Lead 2m
- Stick Welding Lead 2m
- Driver Roller ‘knurled’ for 0.8/0.9mm gasless wire
- Roll of 0.9mm gasless wire (0.45kg)
- Wire brush / chipping hammer
- Premium welding gloves
- Spare MIG tips
APPLICATIONS:
- For serious hobbyist, and occasional light trade &; maintenance use
- Suitable for MIG welding 20-130A with solid mild steel (0.6/0.8/0.9mm), gasless flux-cored (0.8/0.9mm), &; stainless-steel (0.8/0.9mm) wires
- NOT recommended for MIG welding of aluminium (see more info here)
- Stick welding 20-120A with most types of common electrodes (2.0-3.2mm), including steel &; stainless
- TIG welding 20-120A (DC lift-arc) of steel, stainless, copper &; chrome molly up to 2-3mm max thickness
- NOT suitable for TIG welding of aluminium (this requires AC/DC TIG capability, such as the Force 201T machine)
SPECIFICATIONS:
- Dimensions mm: L350 x W190 x H290
- Weight: 6.5 kg
- Power Supply: ~230V 10 Amp
- Standard: AS 60974.1
- MIG Output/Duty Cycle (40oC):
- 20-130A
- 130A @ 26%
- 86A @ 60%
- 66A @ 100%
- Wire Sizes: 0.6, 0.8, 0.9mm
- Stick &; TIG Output/Duty Cycle (40oC):
- 20-120A
- 120A@ 30%
- 86A @ 60%
- 66A @ 100%
- Stick Electrode Sizes: 1.6, 2.0, 2.6, 3.2mm
- TIG Tungsten Sizes: 1.6 - 2.4mm
| Inner Qty: | 1 |
