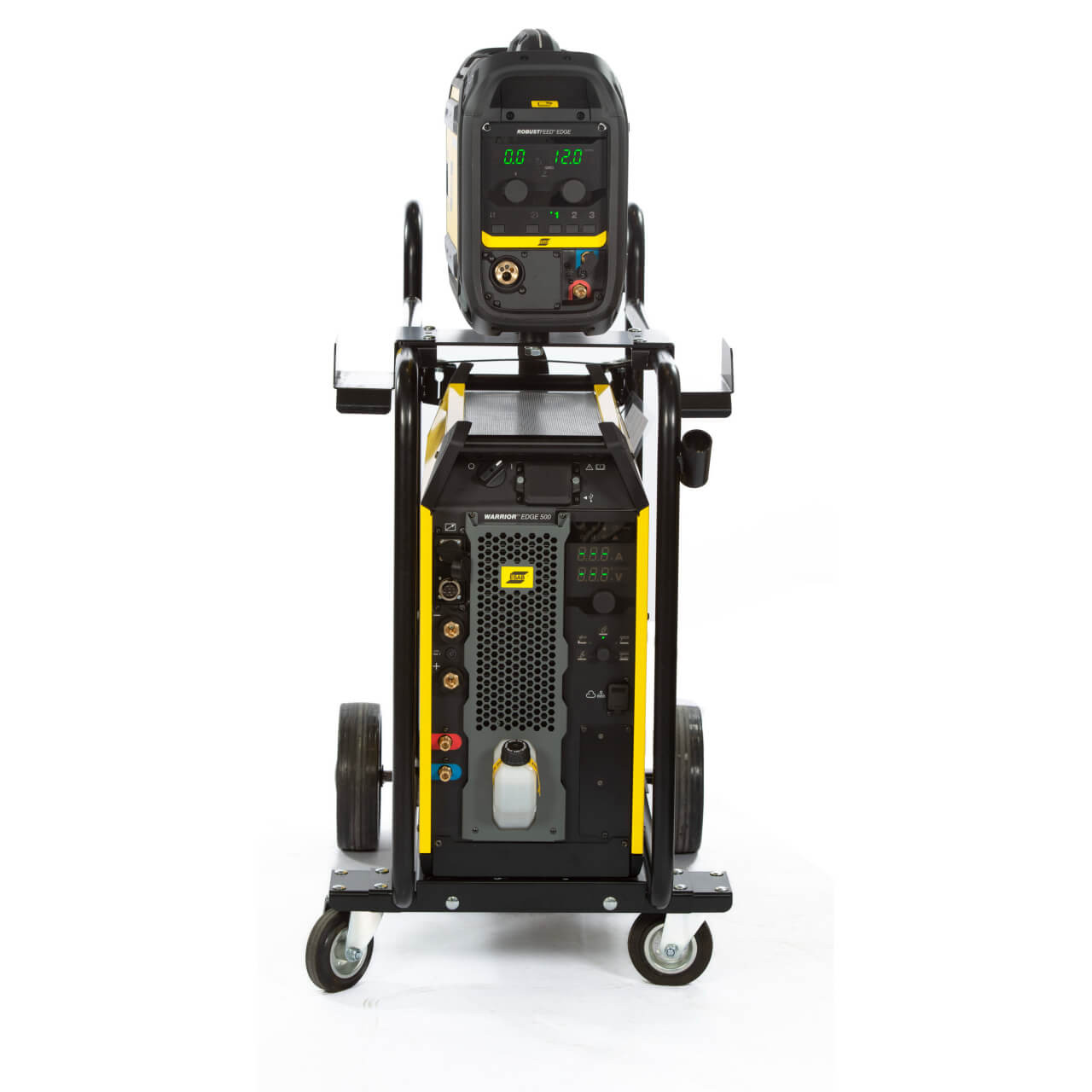

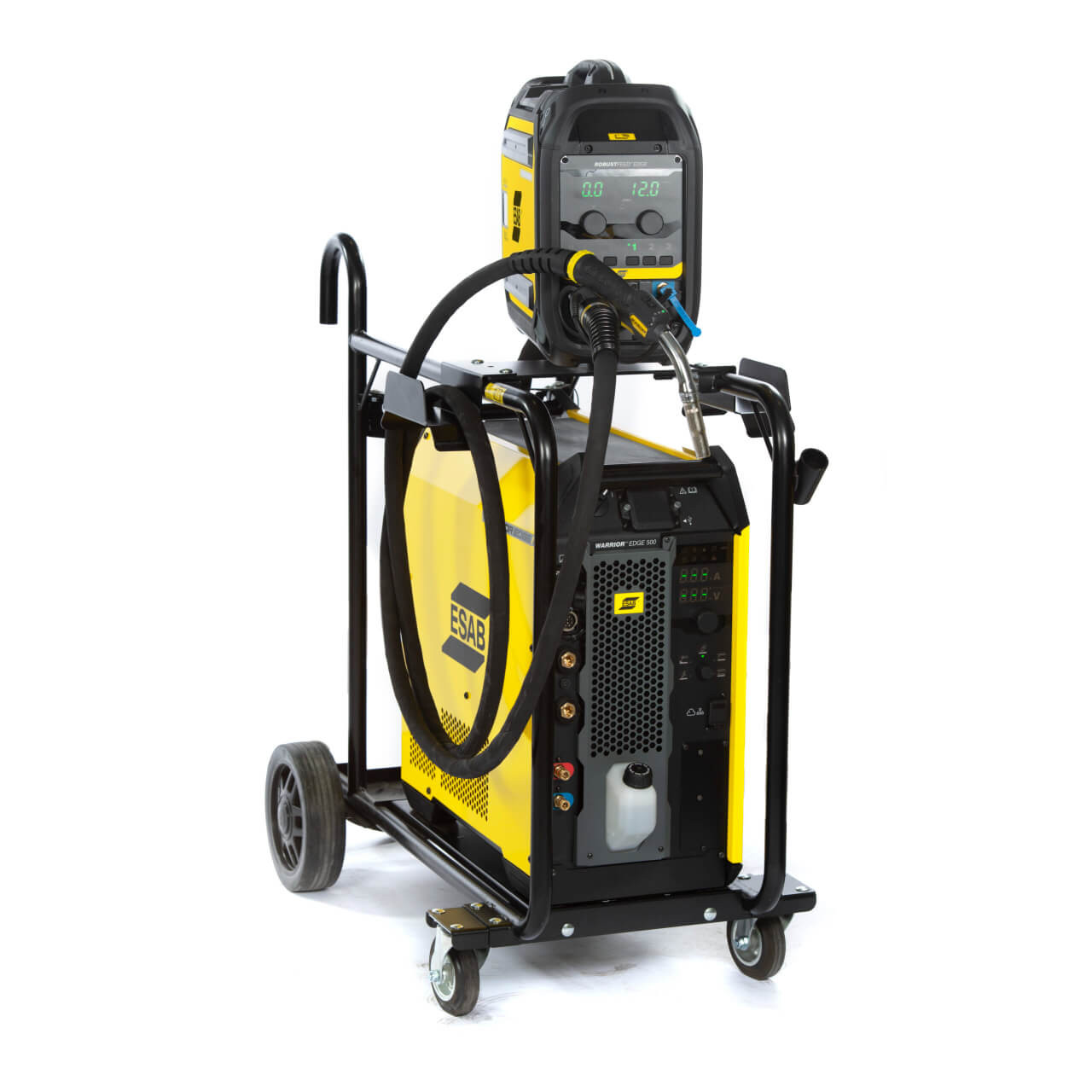

Warrior Edge 500 DX is an easy-to-use, high-performing and connected multi-process welding machine featuring the WeldModes THIN, ROOT, Pulse, SPEED and CRAFT.
FEATURES:
- High performance THIN WeldMode reduces spatter levels and helps reduce distortion when welding thin plates
- With a gap bridging ability, the easy to control ROOT WeldMode is optimized for root passes
- Adaptive optimized Pulse MIG process for Carbon Steel welding that compensates for operator variation with an easy, user-friendly setup designed to achieve excellent weld results
- Fit for purpose SPEED WeldMode provide a focused arc that allows the welder to better and easier handle the weld pool at higher travel speeds increasing the productivity
- Aluminium Double Pulse MIG welding becomes a breeze with the CRAFT WeldMode, with the easiest to use Double Pulse settings on the market for the best looking stacked dimes look
- Integrated 1.4 kW high performance cooling unit
-Integrated WeldCloud connectivity
SPECIFICATIONS:
- Cooling Type: Air-cooled, Water-cooled
- Dimensions: 700 x 325 x 680 mm
- Mains Voltage: 380 – 460 V ±10%, 3ph, 50/60 Hz
- Open Circuit Voltage: 54.8 V
- Operating Temperature: -20° to +55°C
- Standby Power: 43 W
- Weight: 85 kg
- Welding Output GMAW (MIG/MAG):
- 500 A / 39.0 V at 60% Duty Cycle
- 400 A / 34.0 V at 100% Duty Cycle
- Welding Output GTAW (TIG):
- 500 A / 30.0 V at 60% Duty Cycle
- 400 A / 26.0 V at 100% Duty Cycle
- Welding Output SMAW (MMA):
- 500 A / 40.0 V at 60% Duty Cycle
- 400 A / 36.0 V at 100% Duty Cycle
