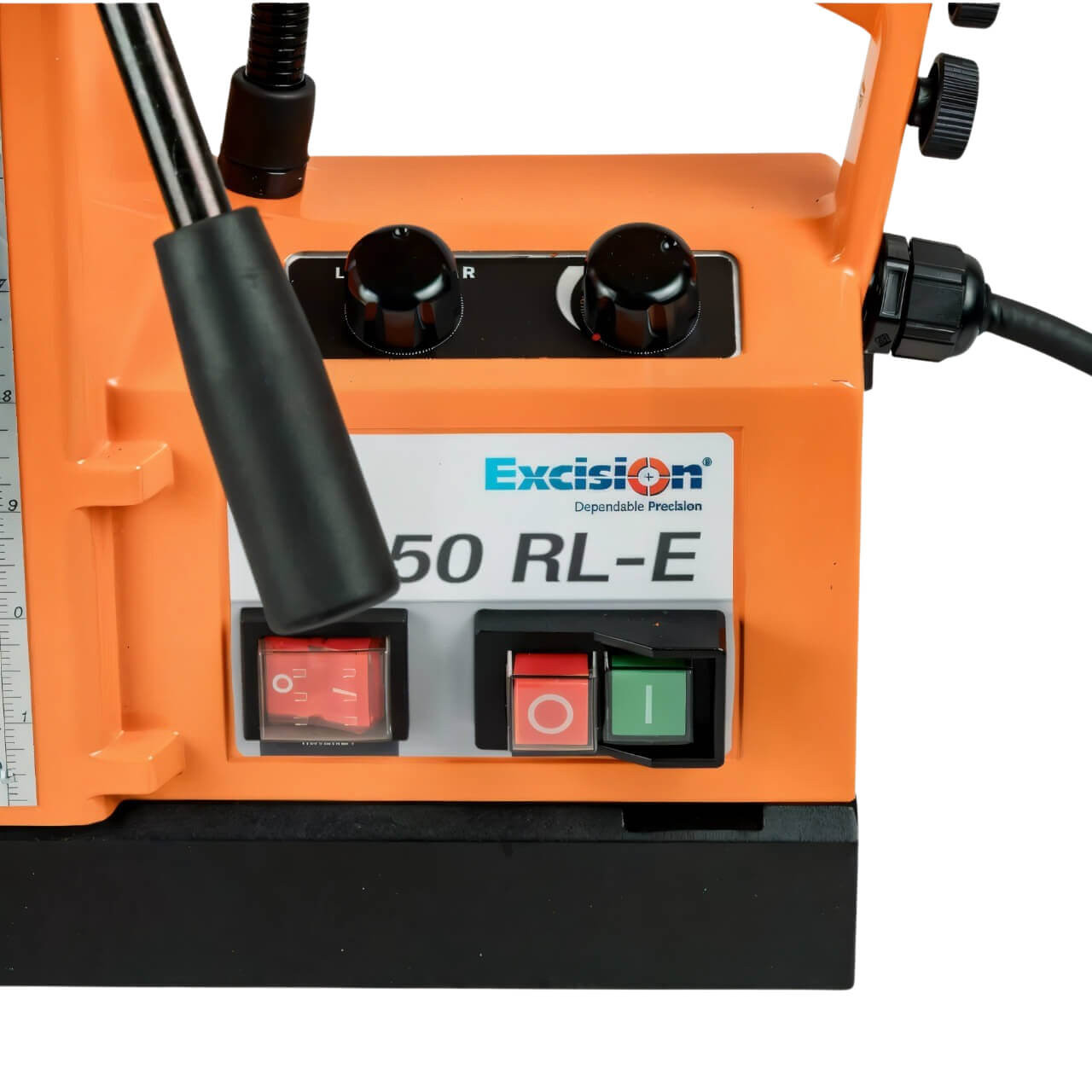

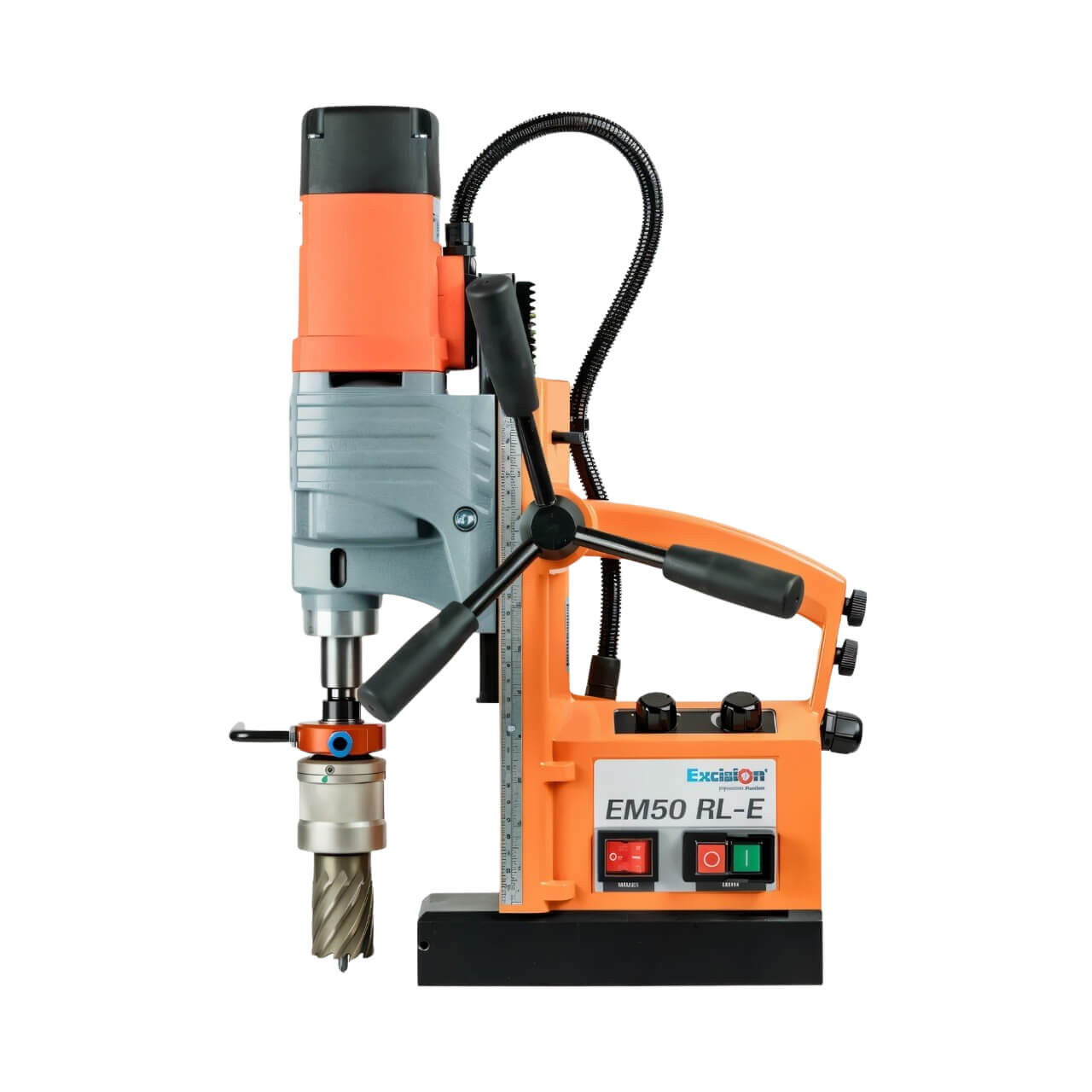

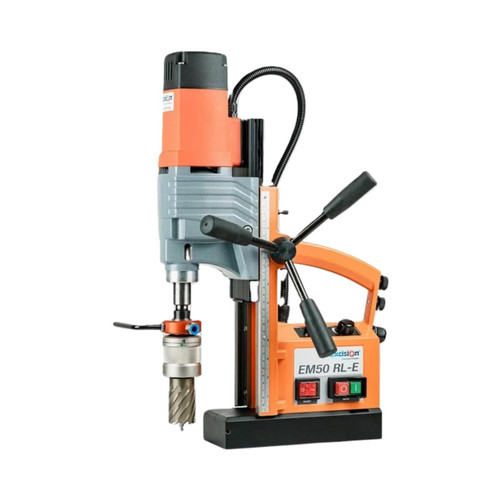

The EM50 RL-E is all about versatility. Its forward-reversible gearbox makes tapping easy, while the variable 2-speed gearbox provides precise control for different hole diameters. Equipped with a Morse Taper 2 spindle and a solid 16,000N magnetic adhesion, it’s built for a range of tough drilling tasks.
FEATURES:
- 2 speed variable oil bath gearbox
- Forward-reversible drive, ideal for tapping
- 3 coil 16,000N magnetic adhesion
- Solid brass guides with spring loading for rigid gliding and no vibration
- Morse Taper 2 spindle
SPECIFICATIONS:
- Core Drill Dimensions: 12.0-50.0mm
- Cutting Depth: 50.0mm
- Twist Drill: With quick-release chuck up to 20.0mm with MT3 DIN 345 direct
- Counter-Boring: 10.0-40.0mm
- Tapping: Tapping Chucks: M3-M14 with tapping attachment: M3-M20
- Arbors: MT2
- Stroke: 170mm
- Height Adjustment: 100mm
- 2-Speed Gearbox
Right/Left
1. Step 100-250rpm
2. Step180-450rpm
- Power Consumption: 1,200W
- Voltage: 230V 50/60Hz
- Tool Force (10mm)/Magnetic Adhesion Strength: 3,800N/16,000N
- Magnetic Base: 92×238mm
- Weight: 16.0Kg
