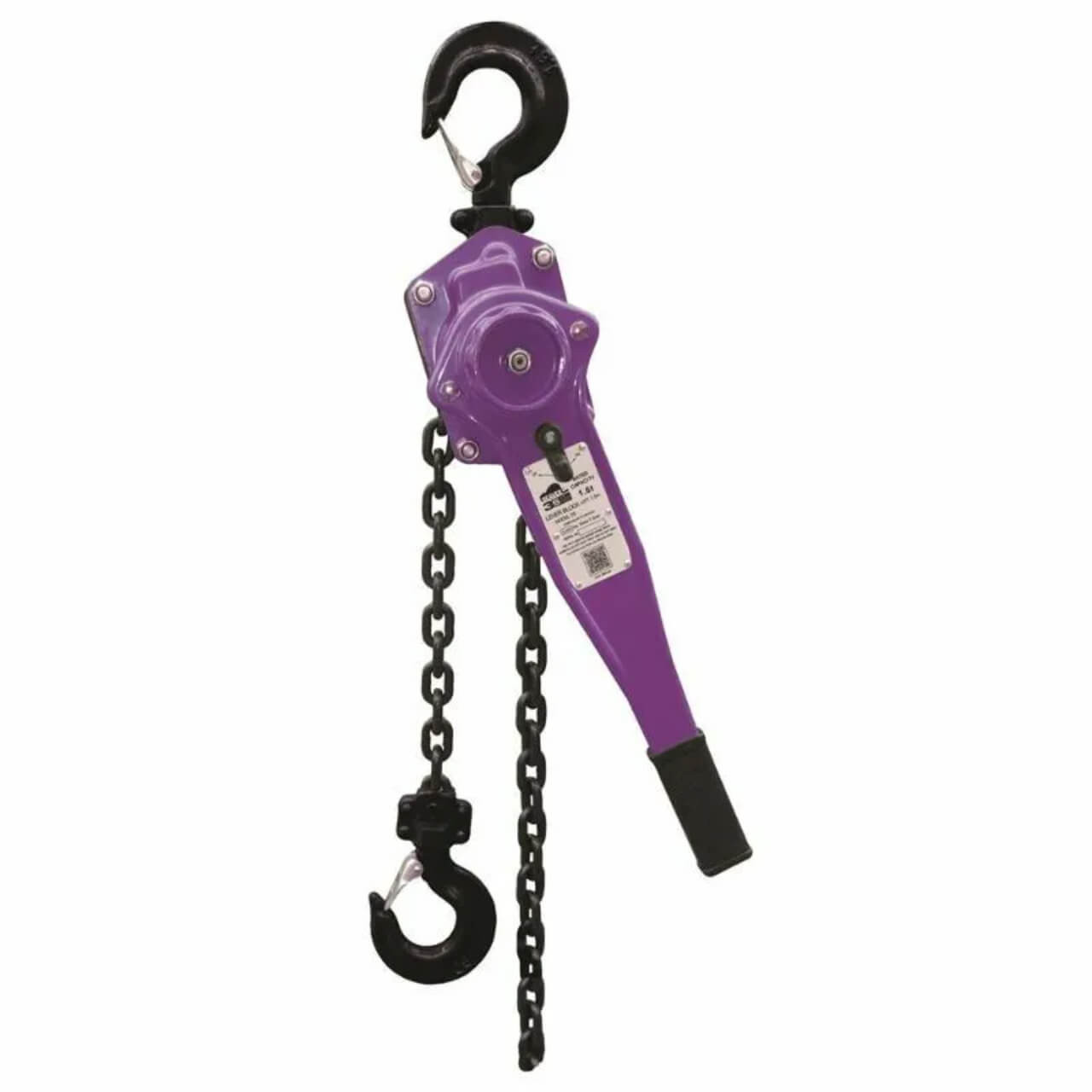

The heavy duty Beaver lever blocks are a versatile lifting and tensioning device widely used in rigging, construction, and mining. The Beaver 3S industrual chain lever block mechanism and gears are enclosed in a robust all-steel compact shell. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.
SPECIFICATIONS:
- Rated Capacity: 1.6t
- Colour Code: Violet
- Standard Lift:1.5m
- Test load: 22.5kN
- Effort on Lever to Lift Full Load: 240N
- No. Load Chain Falls: 1
- Load Chain Diameter: 8mm x 24mm
| Inner Qty: | 1 |
