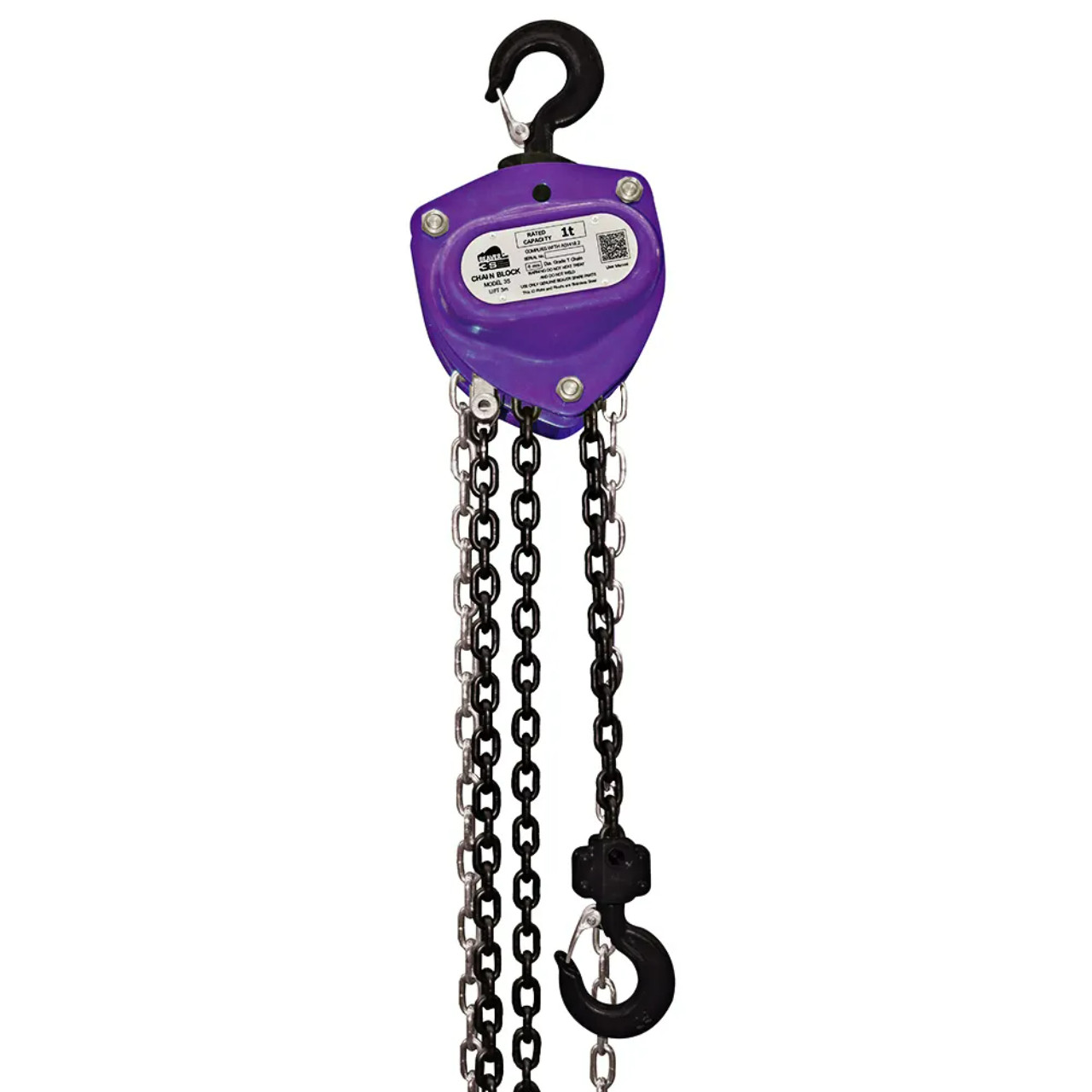

FEATURES:
- Beaver chain blocks are designed for use on monorails, jibs fixed installations and for maintenance use. They are to be used for vertical lifts only.
- If they are side loaded or used horizontally, jamming of the loader chain and damage to the blocks may occur.
- This product features a double pawl and double guide rollers to enhance perfomance and reliability, as well as a unique curling design that enables the hand chain to successfully feed directly inot the wheel sprockets.
- The Beaver 3S industrial chain block has improved reinforced side covers, made from heavy duty steel to ensure full protection of the vital gears, shafts, and bearings.
- The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834.
- Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.
SPECIFICATIONS:
- Product Code : 503106
- Rated Capacity : 1t
- Colour Code : Violet
- Standard Lift : 6m
- Effort on Lever to Lift Full Load : 250kg
- No. Load Chain Falls ; ; : 1
- Load Chain Diameter : 6mm x 18mm
- Headroom:376mm
- Dimentions:
;- 132mm
;- 148mm
;- 28mm
- Net Weight:14.8kg
