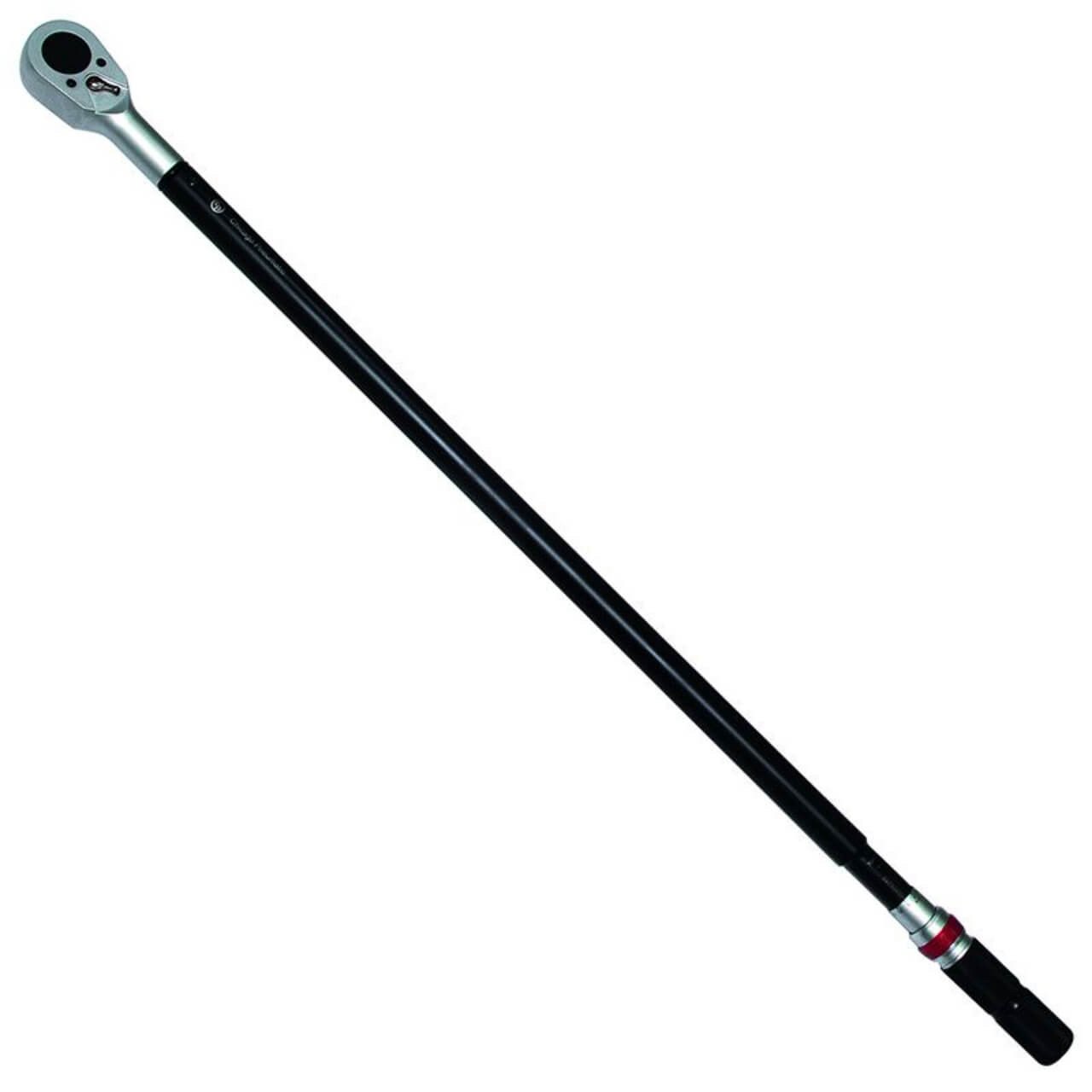

Chicago pneumatic torque wrenches are designed for long-lasting accuracy up to 25,000 cycles at 4% according to the ISO 6789 – 1 : 2017. To ensure robustness, the fixed pear head ratchet has a 54 teeth mechanism for 6.6° increments. A non-intrusive audible signal is made when the torque is reached. Each torque wrench is delivered with a protective blow-moulded case with ISO 6789 calibration certificate. The head ratchet is built with socket locking and quick release system. The CP89 series is composed of 6 models from ¼’’ to 1’’, from 5 Nm to 1,000 Nm / 50 inch pound to 750 ft.lbs.
FEATURES:
- 4% according to the ISO 6789 – 1 : 2017 specifications for accuracy
- Reliability of the mechanism up to 25,000 cycles guarantees long-lasting accuracy
- Torque adjustment with manual locking at the front of the handle ensures ease of use and precise adjustment
- The aluminium handle is resistant to common chemicals found in workshops
- 54 teeth fixed pear head ratchet for durability
SPECIFICATIONS:
- Accuracy (%): ±4%
- Compliance: ISO 6789:2017
- Output drive size (in): 1
- Unit measurement supported: N.m
- Length (L): 1255 mm
- Graduation (N*m): 5 Nm
- Max torque (N*m): 1000 Nm
- Min torque (N*m): 200 Nm
| Inner Qty: | 1 |
