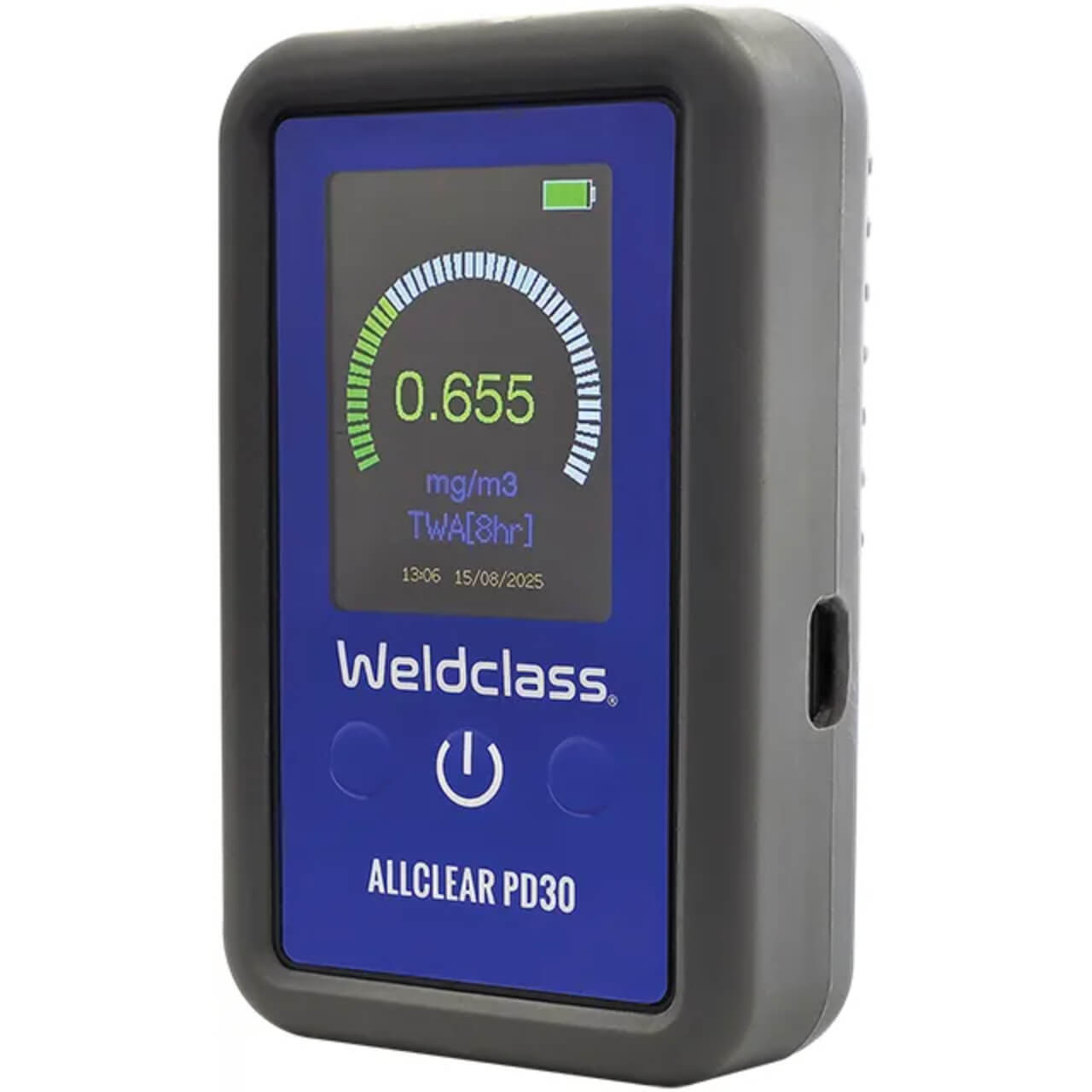

FEATURES:
- Designed and Made in Australia

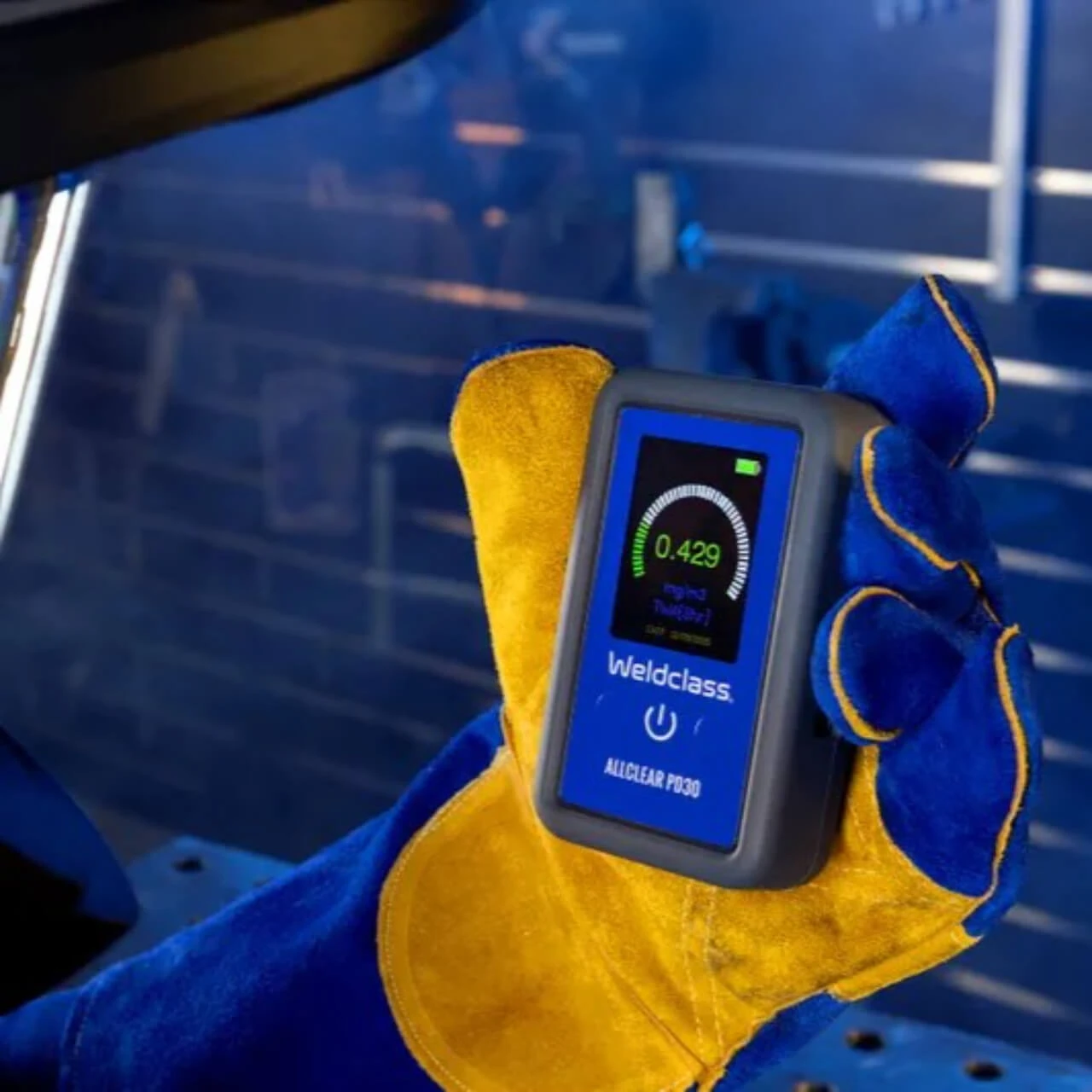

- Wearable: measure fume right where your team works
- Provides TWA (Time Weighted Average) reading, to support compliance with Australian legislation that specifies TWA standards/limits
- TWA reading displayed on PD30 device (unlike some other devices where TWA reading is not available on the device itself)
- Small and lightweight: 260g
- Runtime of 12+ hours with 1 second sample rate
- Shock absorbent protective rubber cover
- Tough metal clip attaches to clothing or belts
DATA OPTIONS:
- PD30 device: Real-time TWA reading
- Mobile phone web app (free, single device only, connect via WiFi): Real time TWA reading, alarm settings, download historical readings (up to 3yrs) via csv
- Cloud platform: Connect unlimited number of PD30 devices to track and monitor TWA readings across entire worksites, download historical readings, etc from one portal. Subscription fee per device applies.
SPECIFICATIONS:
- Dimensions: H120 x W74 x D32mm
- Weight: 260g
- Charge cable connection: USB-C
- Battery life: 12+ hours, or 18 hours in power save mode
- Data connection: WiFi
- Data storage: 3 years
- Mounting: Metal material/clothing clip + D-loop ring
TECHNICAL DATA:
- Particle size detection range: 0.3um – 10um
- Warnings: Inhalable / Respirable TWA8H (Time Weighted 8 Hours), and Inhalable / Respirable STEL (Short Term Exposure Limit)
- Housing material: Silicone rubber
- Battery size/type: 3.7V lithium ion
- Charger specifications: 240V 10A, 5V 1amp, USB-C connection
- Data connection: WiFi 802.11 b/g/n
- CPU: 240 Mhz
- Operating temperature range: -10C to +60C
- Operating humidity range: 0-90%, non-condensing
- Measuring method: Photometric (scattered laser)
- Measurement interval: 1 per second
- Sampling method: Dynamic controlled fan
- Display: 2.4 inch TFT, fullcolour
- Callibration and maintenance: Return to Weldclass for service &; callibration every 2 years from date of issue
- Country of origin: Made in Australia
- Datalog file format: CSV
- Datalog file grouping: Daily
- Datalog retrieval: Webserver, to smart device or PC
- Memory capacity: 16GB SD card + 4GB internal
