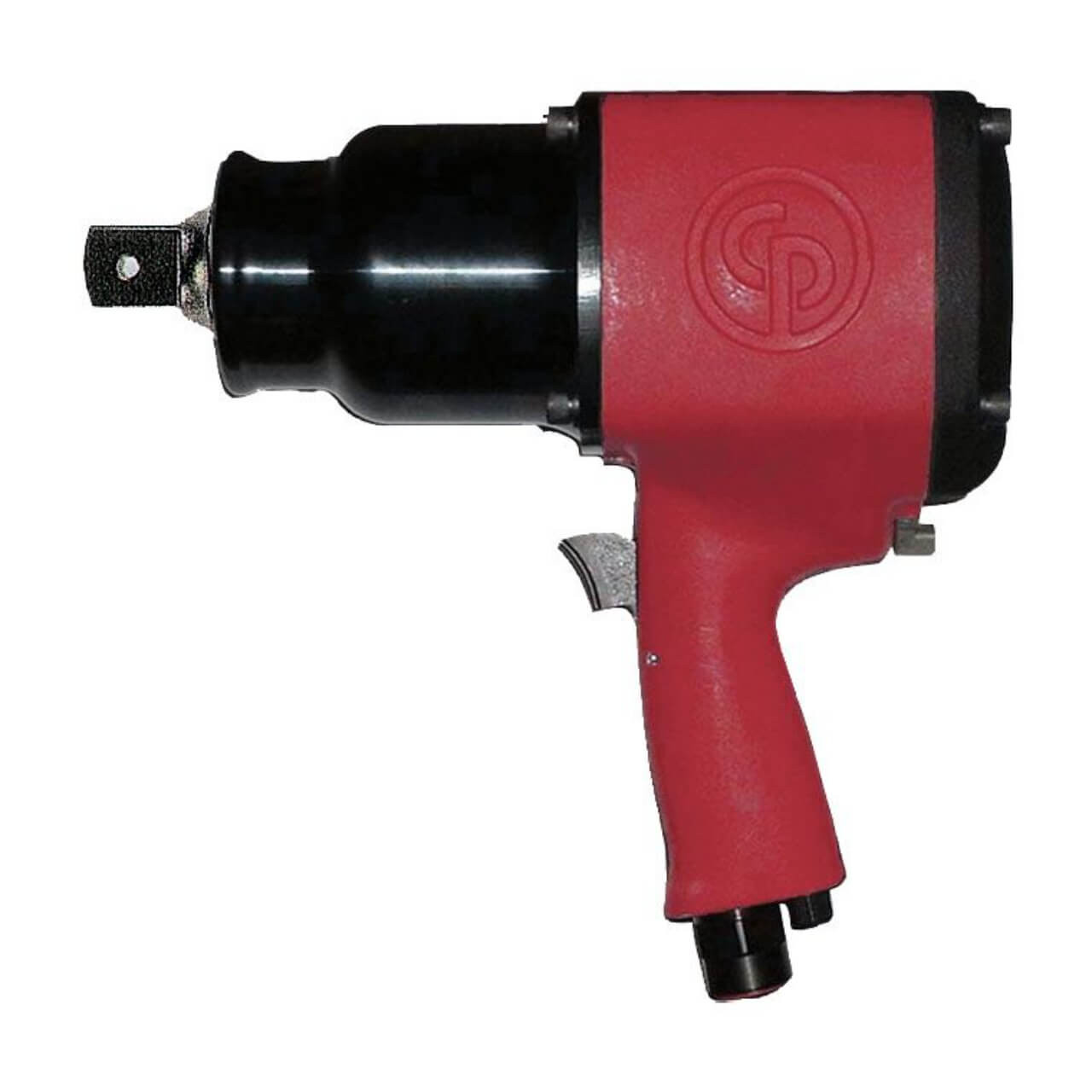

The CP0611 is a robust and efficient 1"/ #5 impact wrench, designed with a 2-jaw clutch mechanism, aluminium body and steel clutch housing. Delivers reverse torque up to 3,790 Nm / 2,800 ft.lb. The CP0611 is built to operate comfortably in the most demanding industrial environments for hard or soft assembly/disassembly applications. The CP0611 Series is available in 4 models: Pistol or straight D-handles with hole or spline socket attachment options.
SPECIFICATIONS:
- Max working torque fwd: 2440 Nm
- Max torque reverse: 3790 Nm
- Min working torque fwd: 1220 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 13 mm
- Blow per minute: 1020
- Body: Aluminium
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mecanism: 2-jaws
- Output drive size (in): 1
- Output drive type: Sq
-Output retainer type: Hole
- Side handle: Yes
- Starting system: Trigger
- Sound Pressure: 102 dB(A)
- Uncertainty vibration-K: 4.7 m/s²
- Free Speed: 3500 rpm
- Length (L): 272 mm
- Power weight ratio: 360 Nm/kg
- Side to Center: 46 mm
Inner Qty: | 1 |
