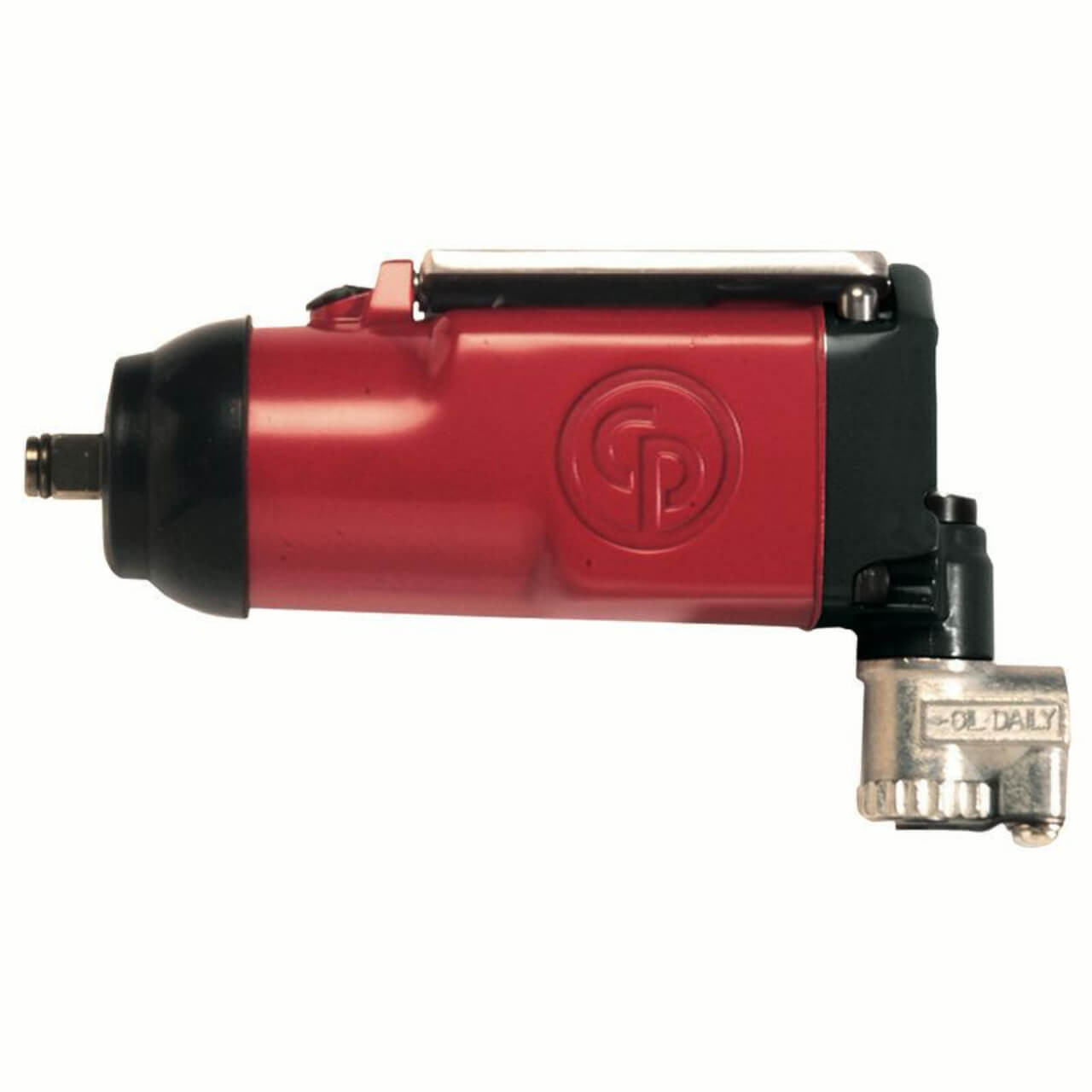

This impact wrench series designed for tight applications and is highly recommended. Its rocking dog impact mechanism and metal motor housing offer high durability. High productivity is ensured with a torque of 90 ft.lbs / 122 Nm.
SPECIFICATIONS:
- Length (L): 160 mm
- Power weight ratio: 120 Nm/kg
- Max working torque fwd: 88 Nm
- Max torque reverse: 122 Nm
- Min working torque fwd: 7 Nm
- Torque limited: No
- Free Speed: 9500 rpm
- Sound Power: 108 dB(A)
- Sound Pressure: 97 dB(A)
- Uncertainty vibration-K: 1.4 m/s²
- Vibration: 4 m/s²
- Air consumption at load: 4.7 l/s
- Air inlet thread size (in):1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Blow per minute: 1400
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: Butterfly
- Impact mecanism: Rocking dog
- Output drive size (in): 3/8
- Output drive type: Sq
- Output retainer type: Friction ring
- Starting system: Butterfly Trigger
| Inner Qty: | 1 |
