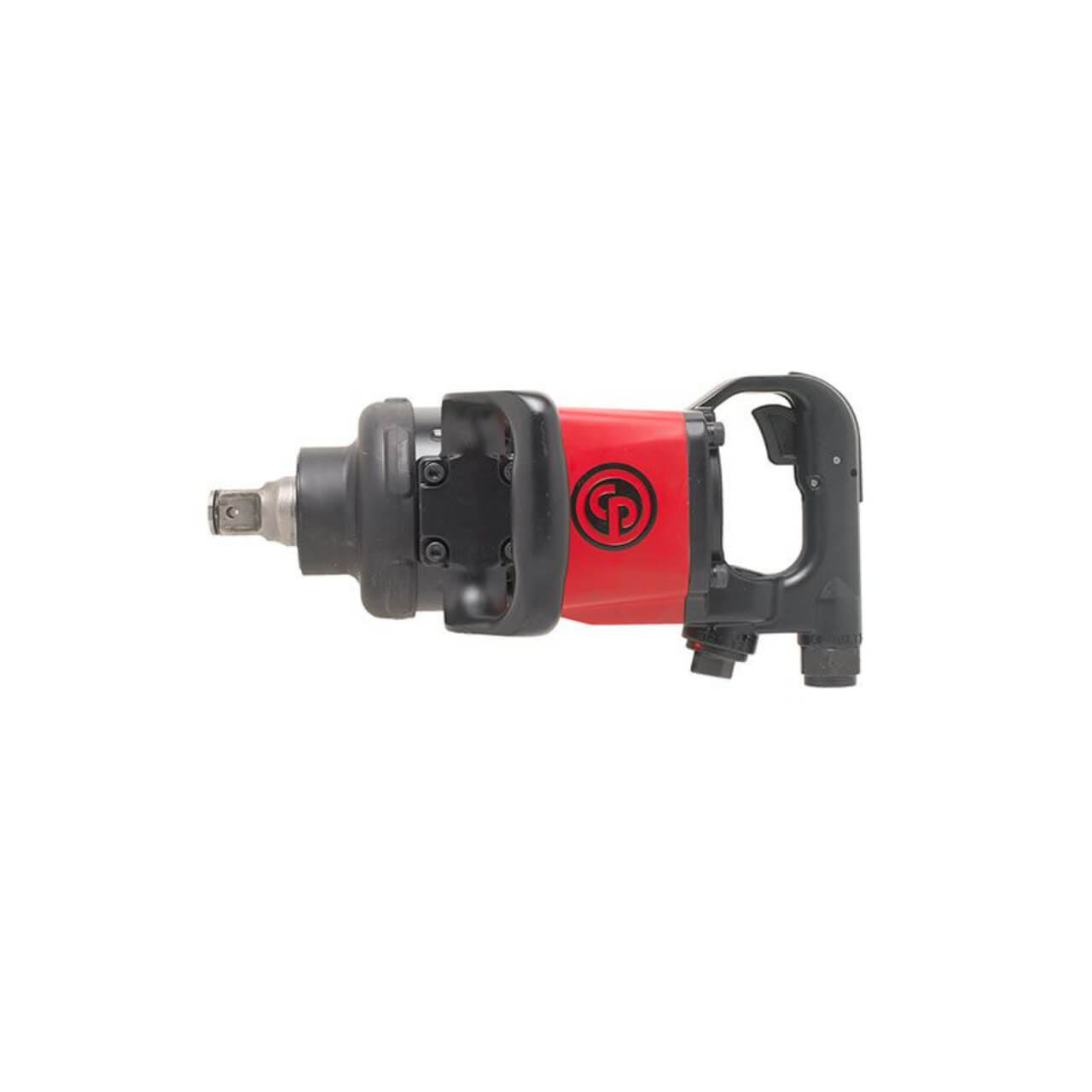

Designed for tire changing applications, this 1" impact wrench with its high torque of 1,920 ft.lbs / 2,600 Nm is highly recommended. The pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability. The CP7782 series includes 3 models: 1" short anvil, 1" long anvil (6" anvil) and 1" long anvil (6" anvil) with spline retainer.
SPECIFICATIONS:
- Length (L): 370 mm
- Power weight ratio: 250 Nm/kg
- Max working torque fwd: 2000 Nm
- Max torque reverse: 2600 Nm
- Min working torque fwd: 500 Nm
- Torque limited: No
- Free Speed: 5200 rpm
- Sound Power: 111 dB(A)
- Sound Pressure: 100 dB(A)
- Uncertainty vibration-K: 1.8 m/s²
- Vibration: 7.8 m/s²
- Air consumption at load: 19 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Blow per minute: 1200
- Body: Aluminum
- Clutch housing: Aluminum
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: Pinless rocking dog
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Starting system: Trigger
