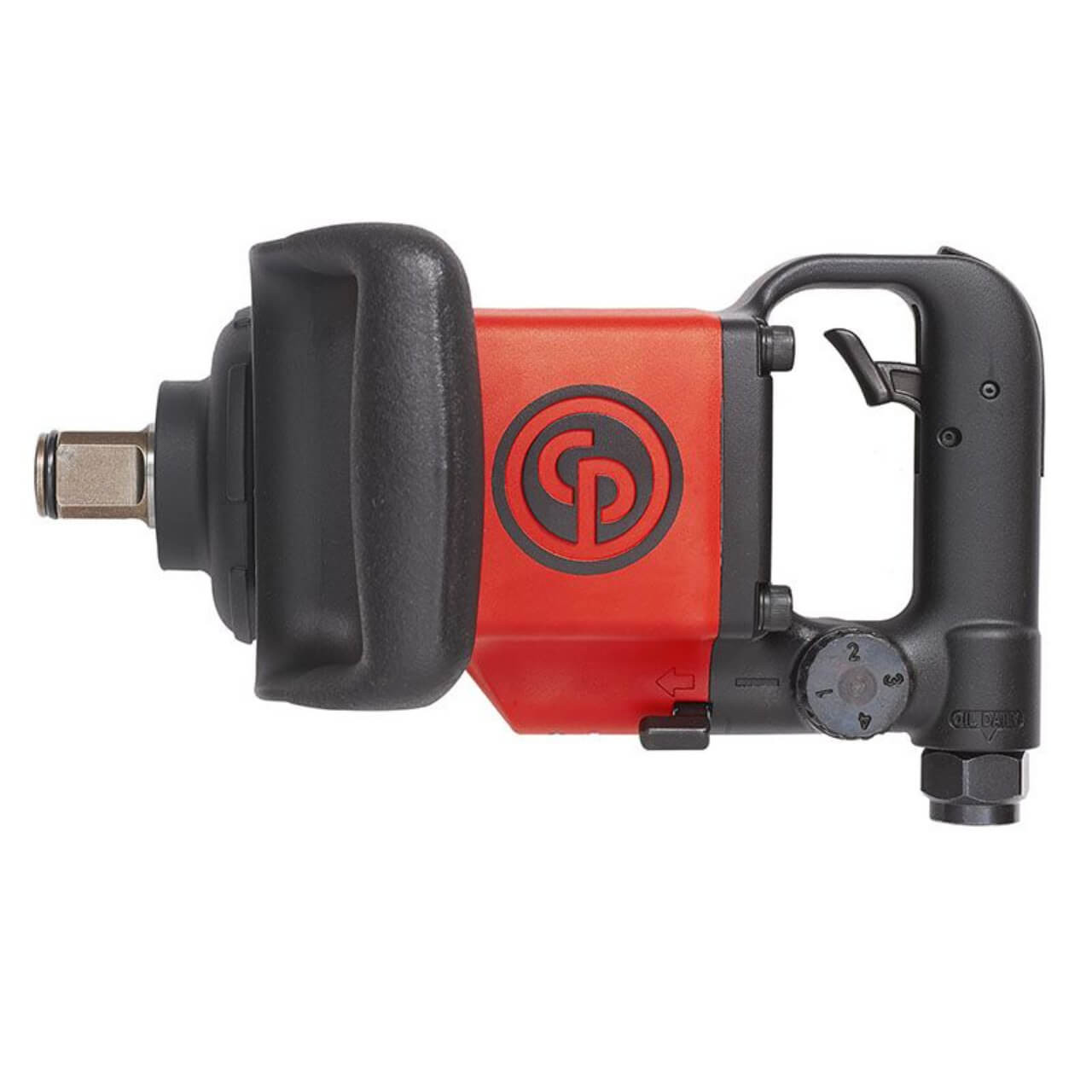

For use in any general maintenance environment with the CP7776 1" impact wrench designed for bolting & unbolting applications. Delivers a reverse high torque up to 1,770 ft.lbs / 2,400 Nm. The pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability. The CP7776 series is composed of 2 models: 1" short anvil and 1" long anvil (6" anvil).
SPECIFICATIONS:
- Length (L): 290 mm
- Side to Center: 45 mm
- Max working torque fwd: 1450 Nm
- Max torque reverse: 1760 Nm
- Min working torque fwd: 340 Nm
- Torque limited: No
- Free Speed: 6600 rpm
- Air consumption at free speed: 26 l/s
- Sound Power: 109 dB(A)
- Sound Pressure: 98 dB(A)
- Uncertainty vibration-K: 3.3 m/s²
- Vibration: 12 m/s²
- Air consumption at load: 19 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 13 mm
- Blow per minute: 900
- Body: Composite
- Clutch housing: Aluminum
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: Twin hammer
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Friction ring
- Starting system: Trigger
| Inner Qty: | 1 |
