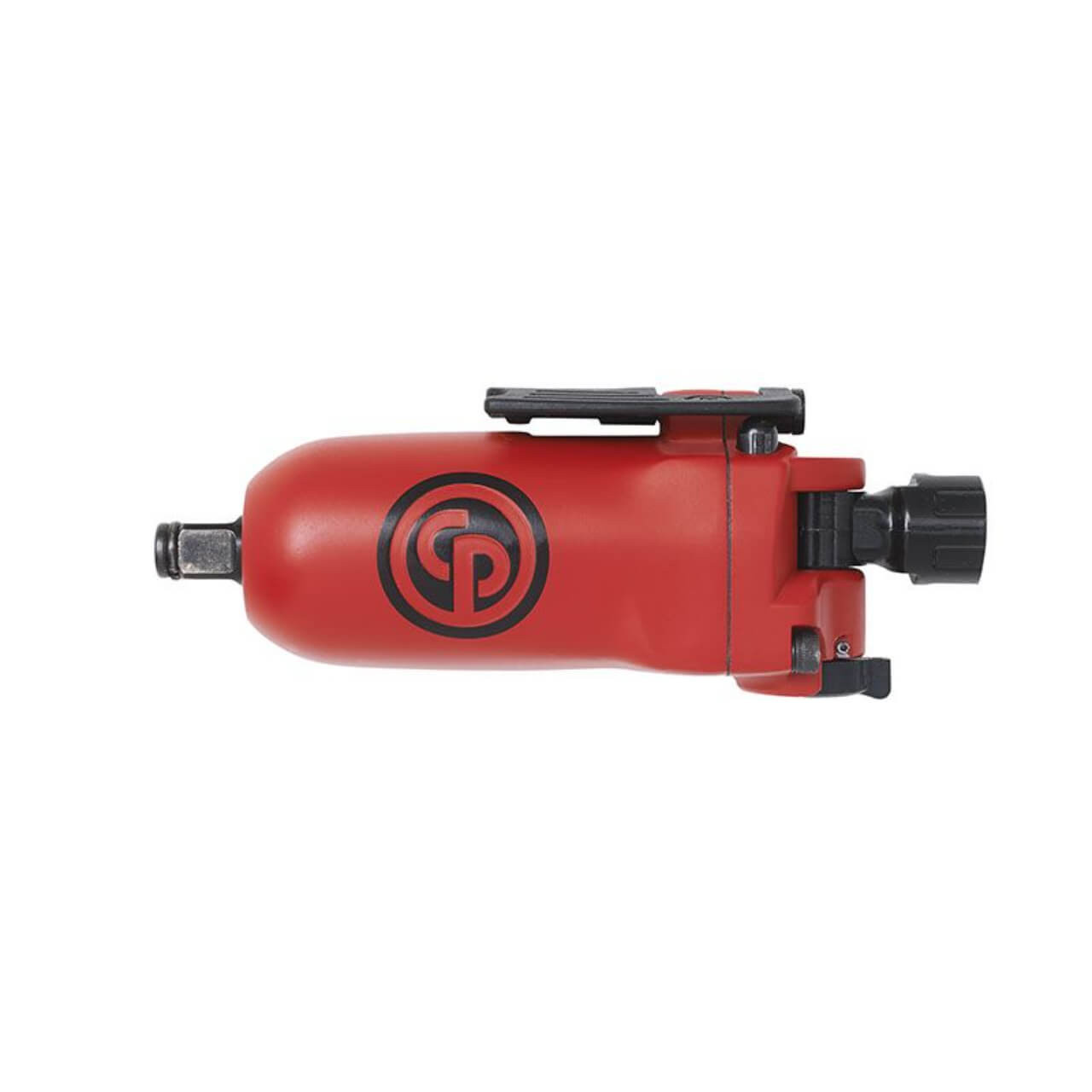

This 1/4" & 3/8" butterfly impact wrenches series, designed for tight applications is highly recommended. The double rocking dog impact mechanism and metal motor housing offer high durability. High productivity is ensured with a torque of 80 ft.lbs / 110 Nm. The CP7711/CP7721 series consists of 2 models: 1/4" short anvil and 3/8" short anvil.
SPECIFICATIONS:
- Length (L): 140 mm
- Power weight ratio: 220 Nm/kg
- Side to Center: 40 mm
- Max working torque fwd: 80 Nm
- Max torque reverse: 110 Nm
- Min working torque fwd: 9 Nm
- Torque limited: No
- Free Speed: 15000 rpm
- Sound Pressure: 92 dB(A)
- Uncertainty vibration-K: 1 m/s²
- Air inlet thread size (in):1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: Butterfly
- Impact mecanism: Rocking dog
- Output drive size (in): 1/4
- Output drive type: Sq
- Output retainer type: Friction ring
- Starting system: Butterfly Trigger
