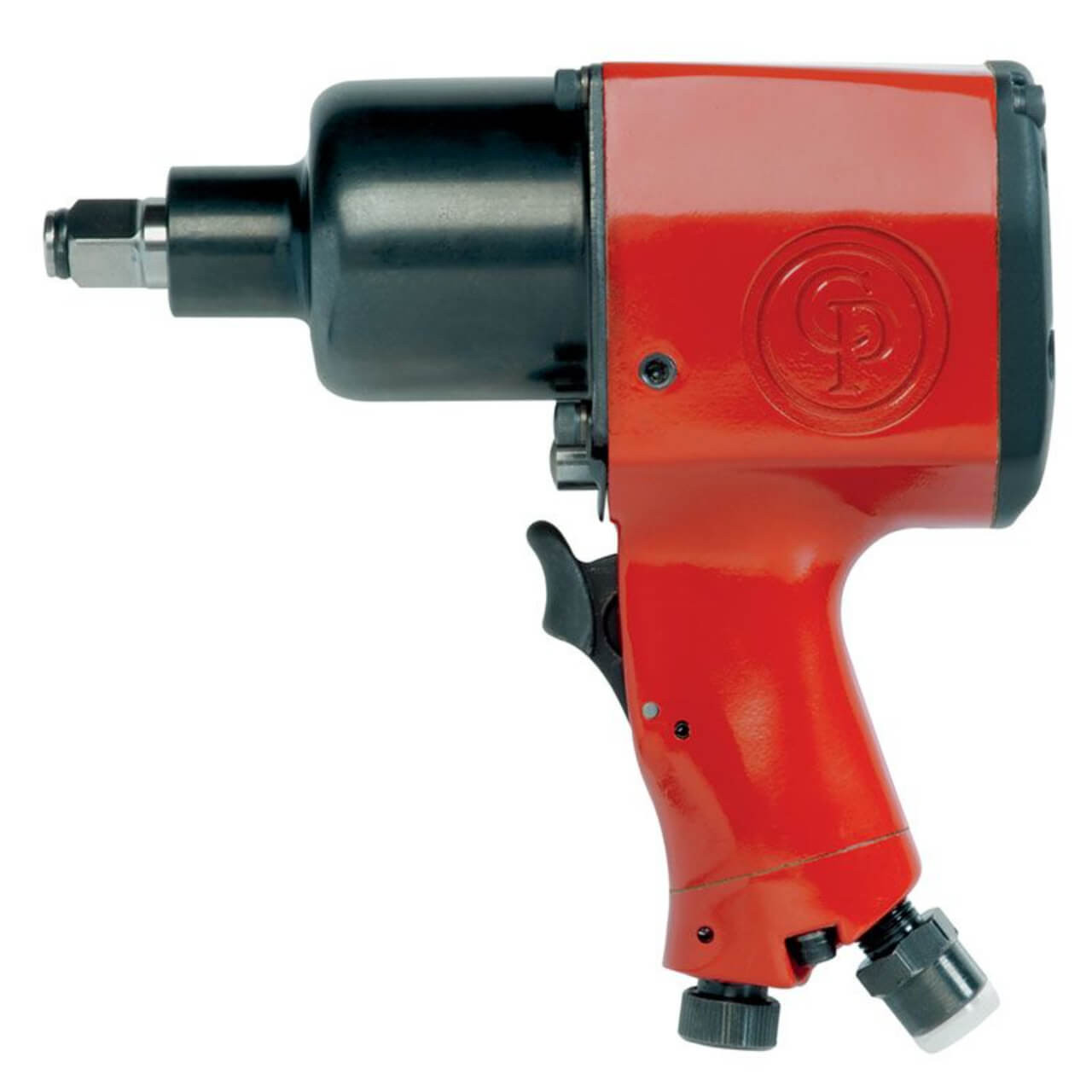

The CP9541/42/61 series of 3/4", 1" impact wrenches - features the fast and reliable Dyna-Pact pin clutch mechanism, an aluminium body, and steel clutch housing. The design offers high performance in term of torque, vibration, and durability for MRO applications. The range consists of 3 models: CP9541 with ring socket retainer, CP9542 with pin socket retainer for a maximum reverse torque of up to 610 Nm /450 ft.lb. and the 3/4" CP9561 with hole socket retainer, which delivers a maximum reverse torque of up to 1,250 Nm /885 ft.lb.
SPECIFICATIONS:
- Length (L): 216 mm
- Power weight ratio: 240 Nm/kg
- Side to Center: 39 mm
- Free Speed: 5500 rpm
- Max working torque fwd: 950 Nm
- Max torque reverse: 1250 Nm
- Min working torque fwd: 200 Nm
- Torque limited: No
- Free Speed: 5500 rpm
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 13 mm
- Sound Power:111 dB(A)
- Sound Pressure: 100 dB(A)
- Uncertainty vibration-K: 2.4 m/s²
- Vibration: 7.7 m/s²
- Blow per minute: 900
- Body: Aluminium
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mecanism: Pin clutch
- Main Material type: Aluminium
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Hole
- Starting system: Trigger
| Inner Qty: | 1 |
