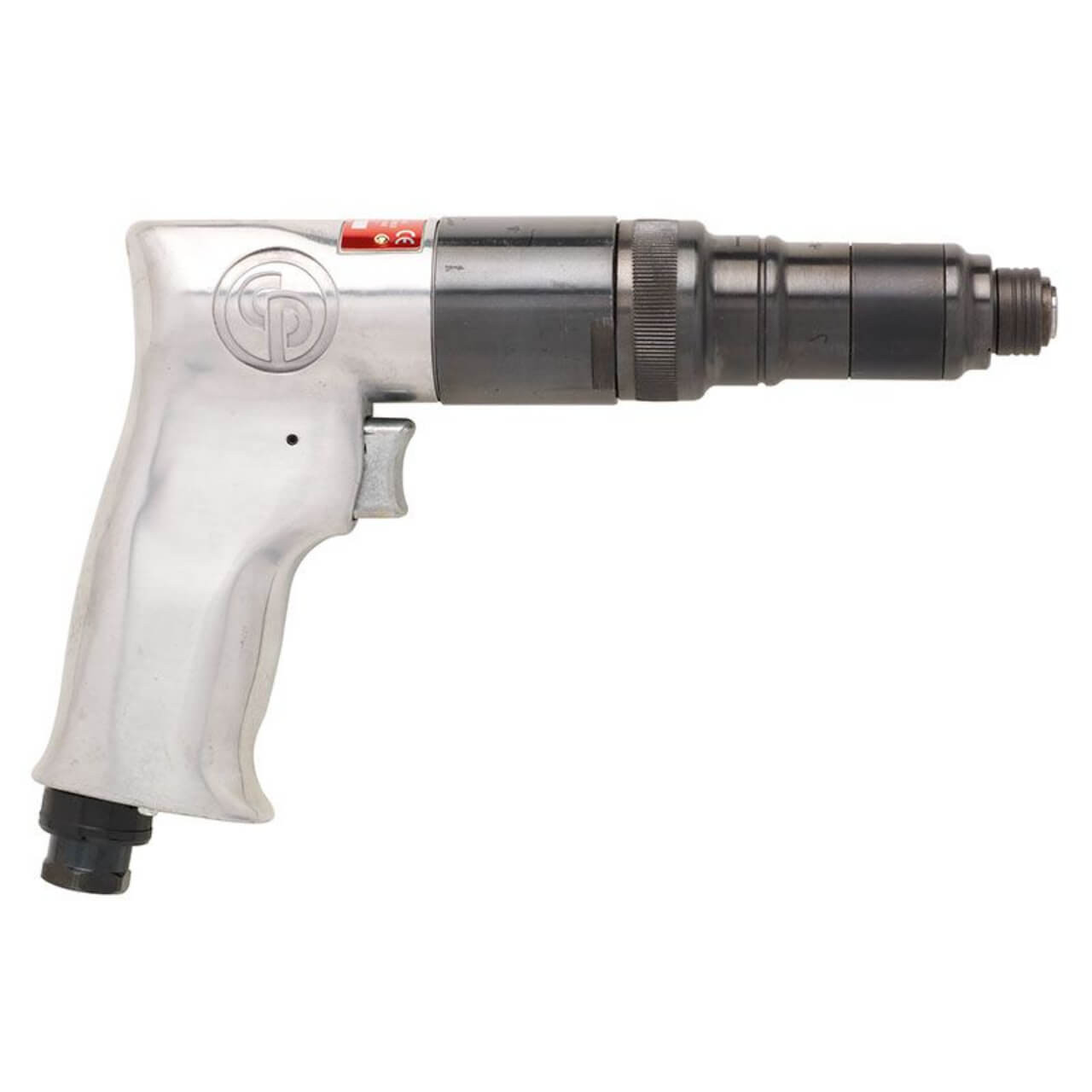

The CP780/CP781 Series are 1/4" hex quick change pistol cushion clutch screwdrivers designed for fastening operations. They feature a rugged aluminum body and steel clutch housing for durability while also being comfortable with their external clutch adjustment. Available in 2 free speed levels: Medium speed (CP781) and high speed (CP780).
SPECIFICATIONS:
- Height (H): 150 mm
- Length (L): 226 mm
- Max working torque fwd: 11.3 Nm
- Min working torque fwd: 6.2 Nm
- Torque limited: Non shut-off-clutch
- Free Speed: 800 rpm
- Air consumption at free speed: 11 l/s
- Sound Power: 110.5 dB(A)
- Sound Pressure: 99.5 dB(A)²
- Vibration: <2.5 m/s²
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Adjustment: Rotative ring
- Body: Aluminum
- Clutch housing: Steel
- Clutch type: Cushion clutch
- Handle type: Pistol
- Output drive size (in): 1/4
- Output drive type: Hex
- Output retainer type: Quick change
- Reversible: Yes
- Starting system: Trigger
Inner Qty: | 1 |
