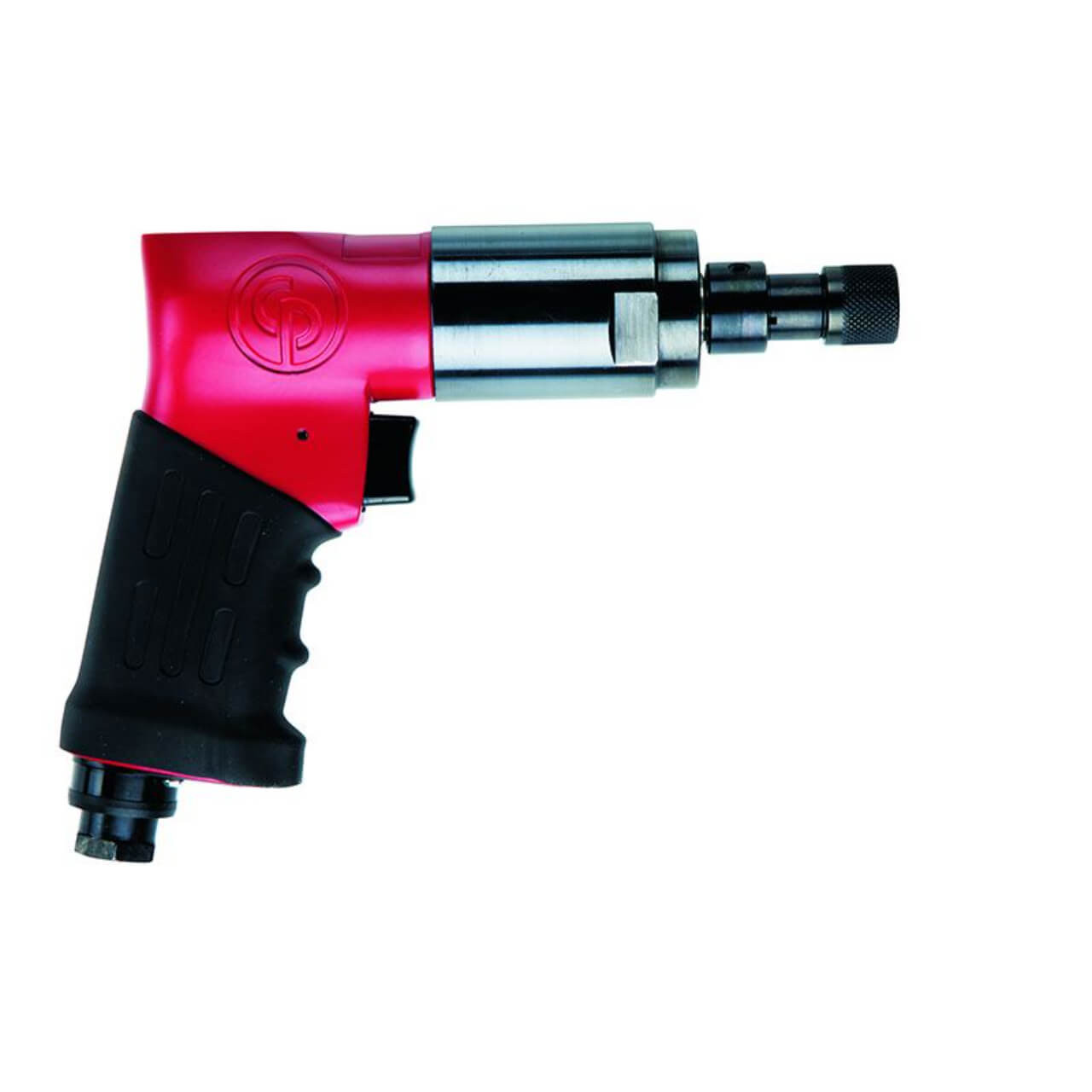

The CP2755/CP2765 Series are 1/4" hex quick change pistol direct drive screwdrivers designed for fastening operations. Progressive trigger and reverse control at the trigger ensure high level of operator control. Ideal for soft-pull applications in wood and other soft materials. Available in 2 torque level models.
SPECIFICATIONS:
- Max torque in forward: 9 Nm
- Torque Control System: Non Shut-off-stall
- Body: Aluminum
- Clutch housing: Steel
- Clutch Type: Direct drive
- Handle type: Pistol
- Output drive size (in): 1/4
- Output drive type: Hex
- Output retainer type: Quick change
- Reversible: Yes
- Starting system: Trigger
- Free Speed: 900 rpm
- Air consumption at free speed: 14 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- SoundPower: 110 dB(A)
- Sound Pressure: 99 dB(A)
- Vibration (m/s²): <;2.5
- Height (H): 149 mm
- Length (L): 178 mm
Inner Qty: | 1 |
