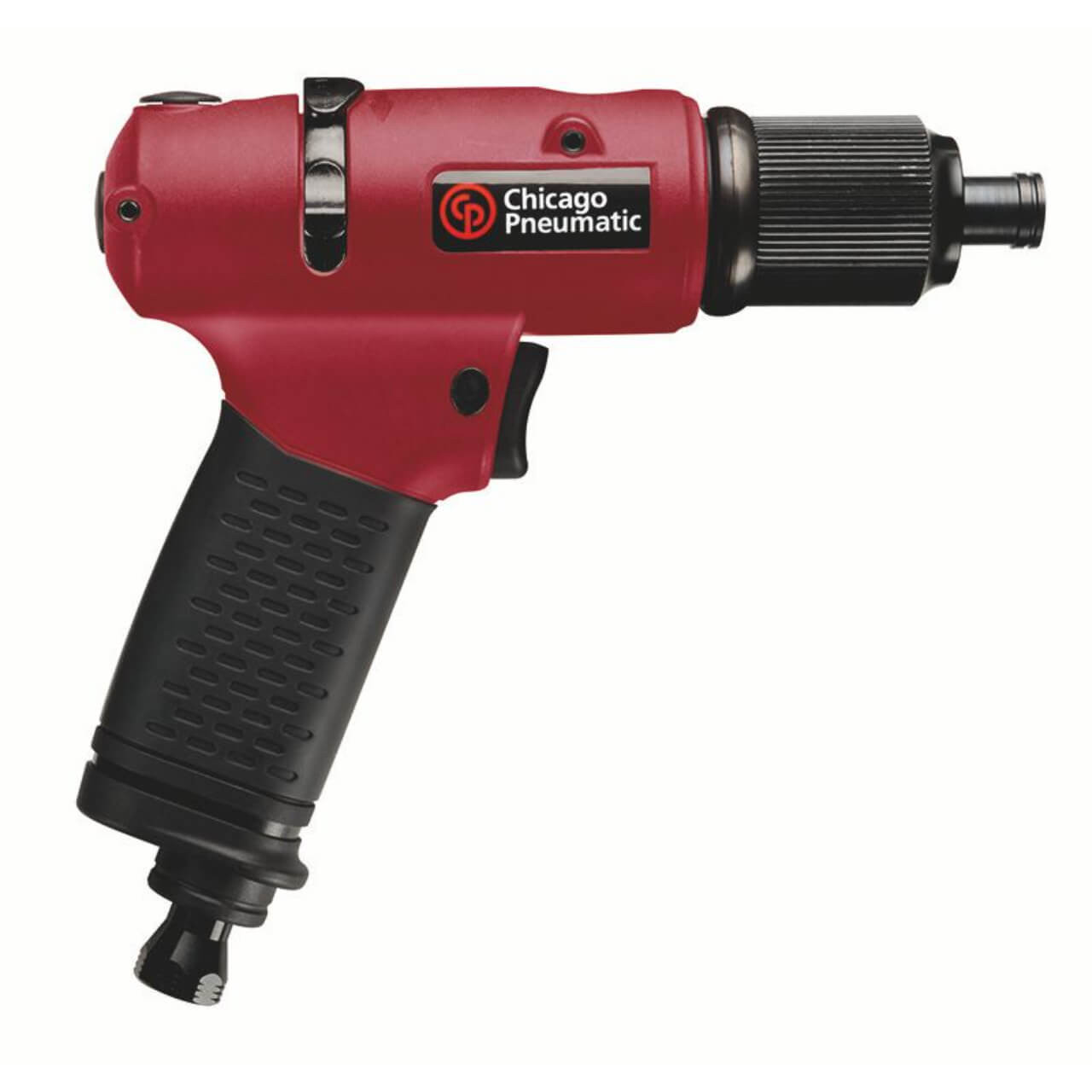

The CP2612 is a keyless torque setting 1/4" hex pistol cushion clutch screwdriver offering a wide torque range, speed and high reliability in high rate fastening operations. Operator comfort is ensured with its limited noise level and the 3 pneumatic inlets to ensure vertical and horizontal applications.
SPECIFICATIONS:
- Max torque in forward: 6 Nm
- Min torque in forward: 1 Nm
- Torque Control System: Non Shut-off-clutch
- Adjustment: Rotative ring
- Body: Composite
- Clutch housing: Steel
- Clutch Type: Cushion clutch
- Handle type: Pistol
- Output drive size (in): 1/4
- Output drive type: Hex
- Output retainer type: Quick change
- Reversible: Yes
- Starting system: Trigger
- Free Speed: 1700 rpm
- Air consumption at free speed: 10 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 88 dB(A)
- Sound Pressure: 77 dB(A)
- Vibration (m/s²): <;2.5
- Height (H): 175 mm
- Length (L): 190 mm
Inner Qty: | 1 |
